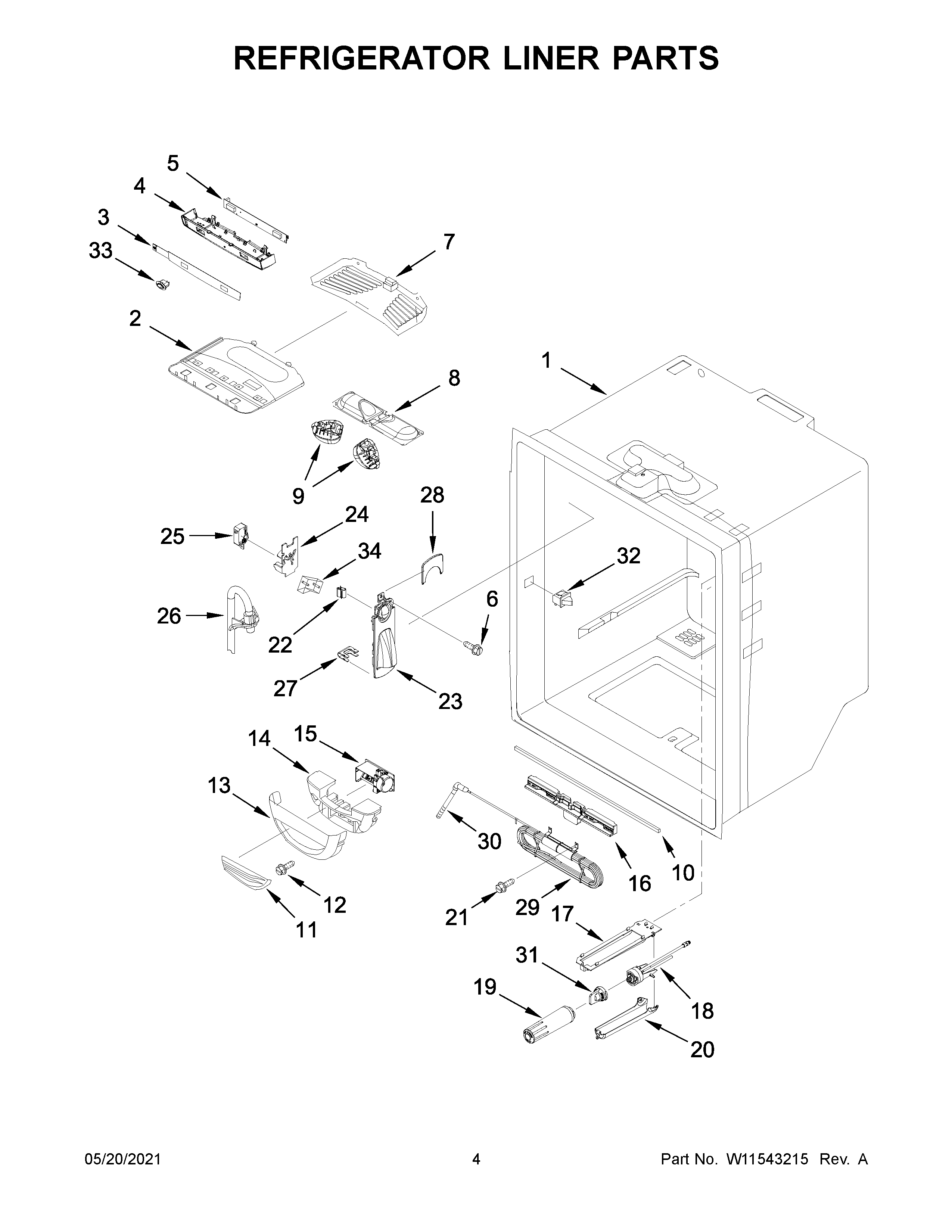

KRFF302ESS05 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11478401 Whirlpool Refrigerator Housing
2	W10464766 Whirlpool Refrigerator Housing Assembly
3	W11469742 Whirlpool Refrigerator Overlay
4	W11469741 Whirlpool Refrigerator Housing
5	W11524656-includeCORE Whirlpool W11524656 Refrigerator Electronic Control Board
6	W10854958 Whirlpool Refrigerator Screw
7	W11284721 Whirlpool Refrigerator Cover
8	W10443023 Whirlpool Refrigerator Housing
9	MODULE
10	W10568045 Whirlpool Gasket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	CONTROL DAMPER
16	W10833346 Whirlpool Refrigerator Insulation
17	PLATE-FIL
18	W11346623 Whirlpool Refrigerator Water Filter Head
19	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
20	WP12568001 Whirlpool Filter Cover
21	WP67006415 Whirlpool Refrigerator Screw
22	W10819546 Whirlpool Refrigerator Clip
23	W11519867 Whirlpool Refrigerator Cover
24	W11515355 Whirlpool Refrigerator Plate
25	W11527839 Whirlpool Switch
26	W11677725 Whirlpool Refrigerator Guide
27	67002816 Whirlpool Refrigerator Waterline Clip
29	W11229977 Whirlpool Refrigerator Reservoir
30	WP2300868 Whirlpool Refrigerator Fitting
31	W11395888 Whirlpool Refrigerator Bypass Filter Cap
32	W11291138 Whirlpool Refrigerator Door Switch
33	W11469740 Whirlpool Refrigerator Switch
34	W11527411 Whirlpool Refrigerator Foam Seal
