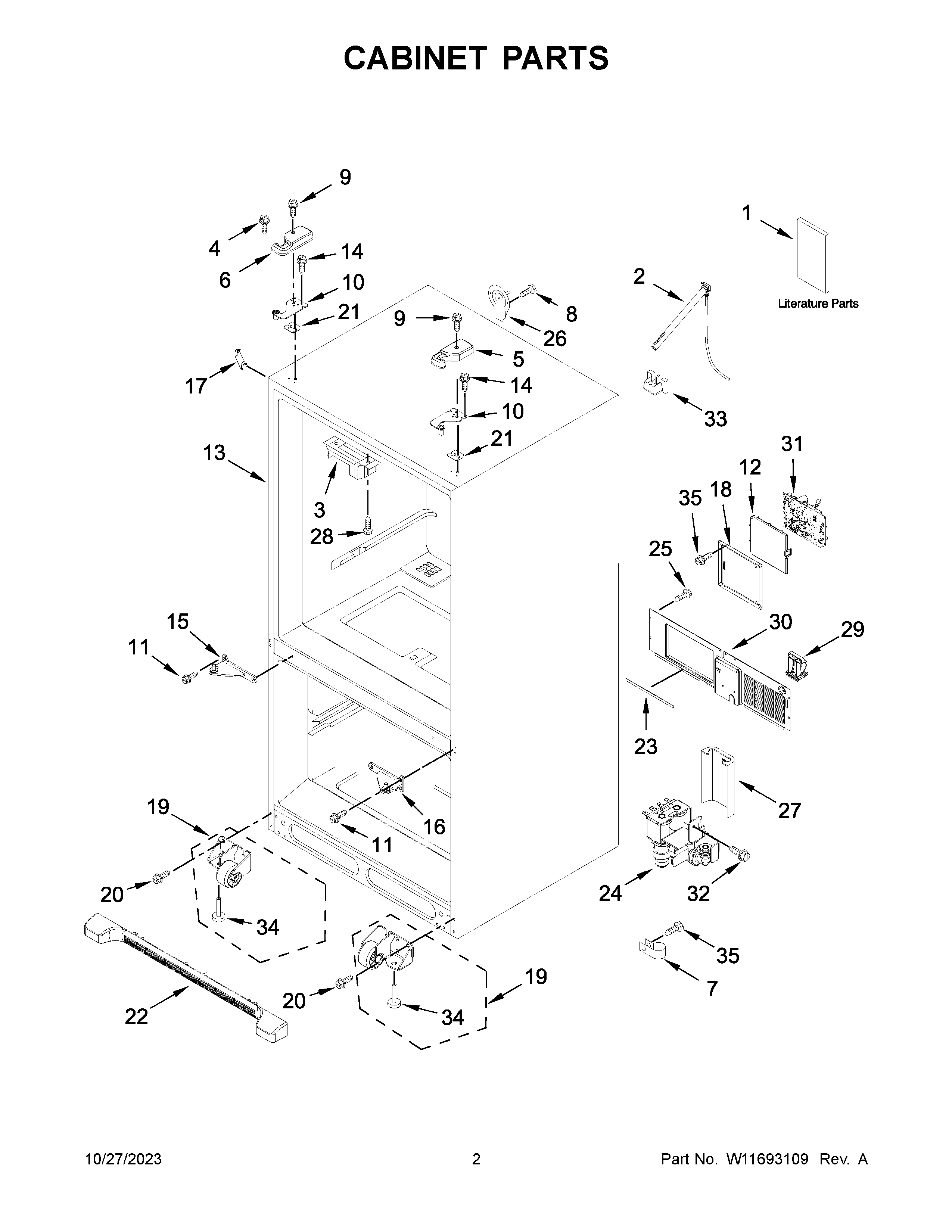

KRFF302ESS07 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1	TECH SHEET
1A	OWNERS MANUAL
2	W11181718 Whirlpool Refrigerator Water Tube
3	WP67003405 Whirlpool Pivot Block
4	W11214483 Whirlpool Refrigerator Screw
5	WPW10191117 Whirlpool Refrigerator Cover
6	WPW10337648 Whirlpool Refrigerator Cover
7	W11456069 Whirlpool Refrigerator Clamp
8	WP98165 Whirlpool Screw
9	WP8281196 Whirlpool Screw
10	W11592375 Whirlpool Door Hinge
10A	W11592374 Whirlpool Refrigerator Top Door Hinge
11	W11573362 Whirlpool Screw Assembly
12	W10296541 Whirlpool Refrigerator Wire Cover
13	CABINET (NOT A SERVICEABLE PART)
14	WP489349 Whirlpool Refrigerator Screw
15	W10917991 Whirlpool Refrigerator Door Hinge
16	HINGE-DOOR
17	WP12587703AP Whirlpool Refrigerator Filler
18	12961602 Whirlpool Refrigerator Wire Cover
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21A	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534160 Whirlpool Refrigerator Front Grille
23	GASKET
24	W11524655 Whirlpool Refrigerator Valve
25	SCREW
26	12726003 Whirlpool Refrigerator Water Cover
27	W10208593 Whirlpool Refrigerator Valve Cover
28	W11693756 Whirlpool Screw Assembly
29	W10528513 Whirlpool Tube Clamp
30	W10210980 Whirlpool Refrigerator Back Cover
31	WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
32	WP489128 Whirlpool Refrigerator Screw
33	W11686793 Whirlpool Block
34	WPW10141622 Whirlpool Leveler
35	W11686675 Whirlpool Screw
