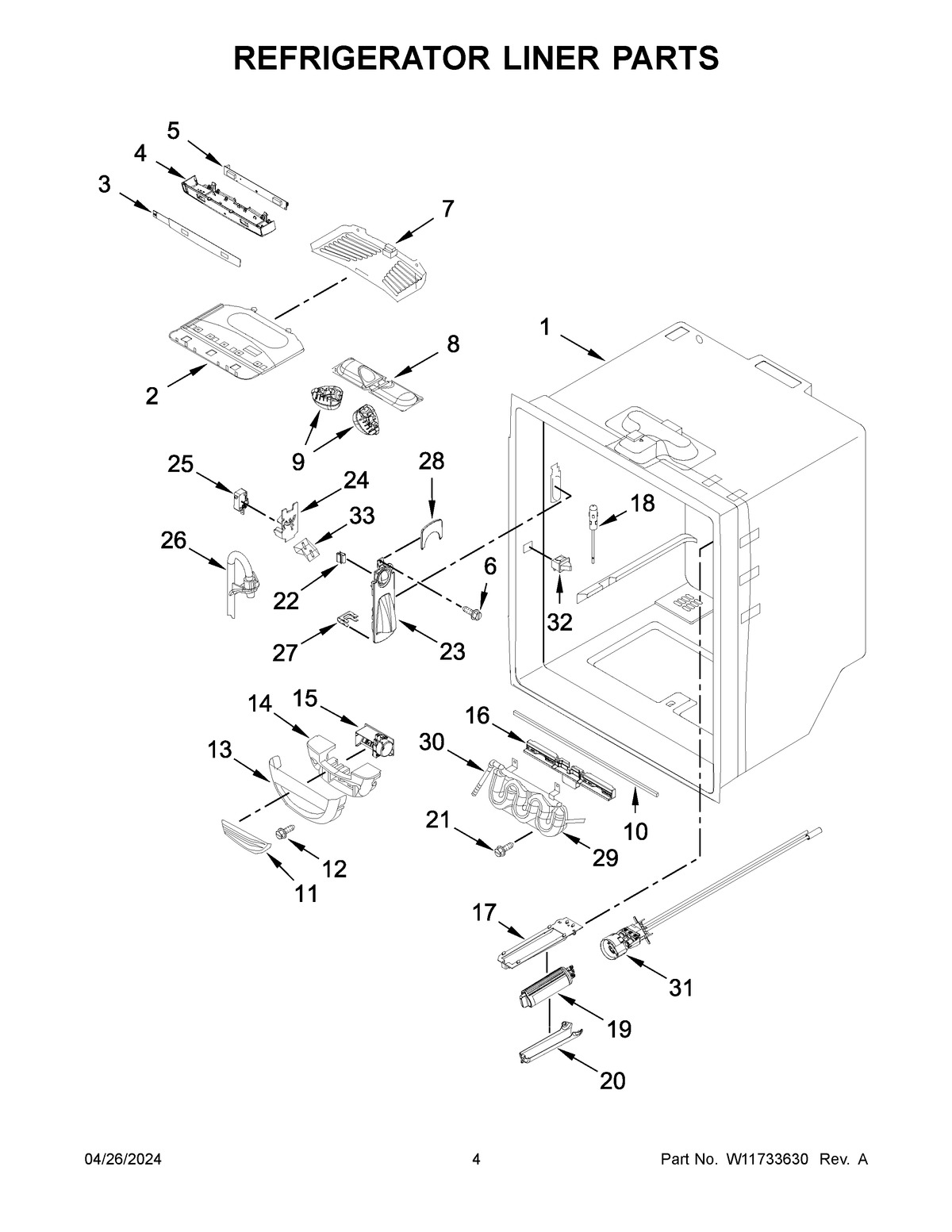

KRFF302ESS08 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	W11660616 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	LINER (NOT A SERVICEABLE PART)
2	W10464766 Whirlpool Refrigerator Housing Assembly
3	W11712701 Whirlpool Overlay
4	W11416469 Whirlpool Refrigerator Housing
5	W11642241-includeCORE Whirlpool W11642241 Refrigerator Electronic Control Board + Core
6	W10854958 Whirlpool Refrigerator Screw
7	W11284721 Whirlpool Refrigerator Cover
8	W10443023 Whirlpool Refrigerator Housing
9	MODULE
10	W10568045 Whirlpool Gasket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	CONTROL DAMPER
16	INSULATION, WATER TANK
17	W11706224 Whirlpool Cover Back
18	W11690896 Whirlpool Thermistor
19	EDRARXD1 Whirlpool Water Filter
20	W11706225 Whirlpool Filter Cover
21	WP67006415 Whirlpool Refrigerator Screw
22	W10819546 Whirlpool Refrigerator Clip
24	W11515355 Whirlpool Refrigerator Plate
25	W11527839 Whirlpool Switch
26	W11677725 Whirlpool Refrigerator Guide
27	67002816 Whirlpool Refrigerator Waterline Clip
28	W11519867 Whirlpool Refrigerator Cover
29	W11229977 Whirlpool Refrigerator Reservoir
30	WP2300868 Whirlpool Refrigerator Fitting
31	W11706228 Whirlpool Reservoir
32	W11291138 Whirlpool Refrigerator Door Switch
33	W11527411 Whirlpool Refrigerator Foam Seal
