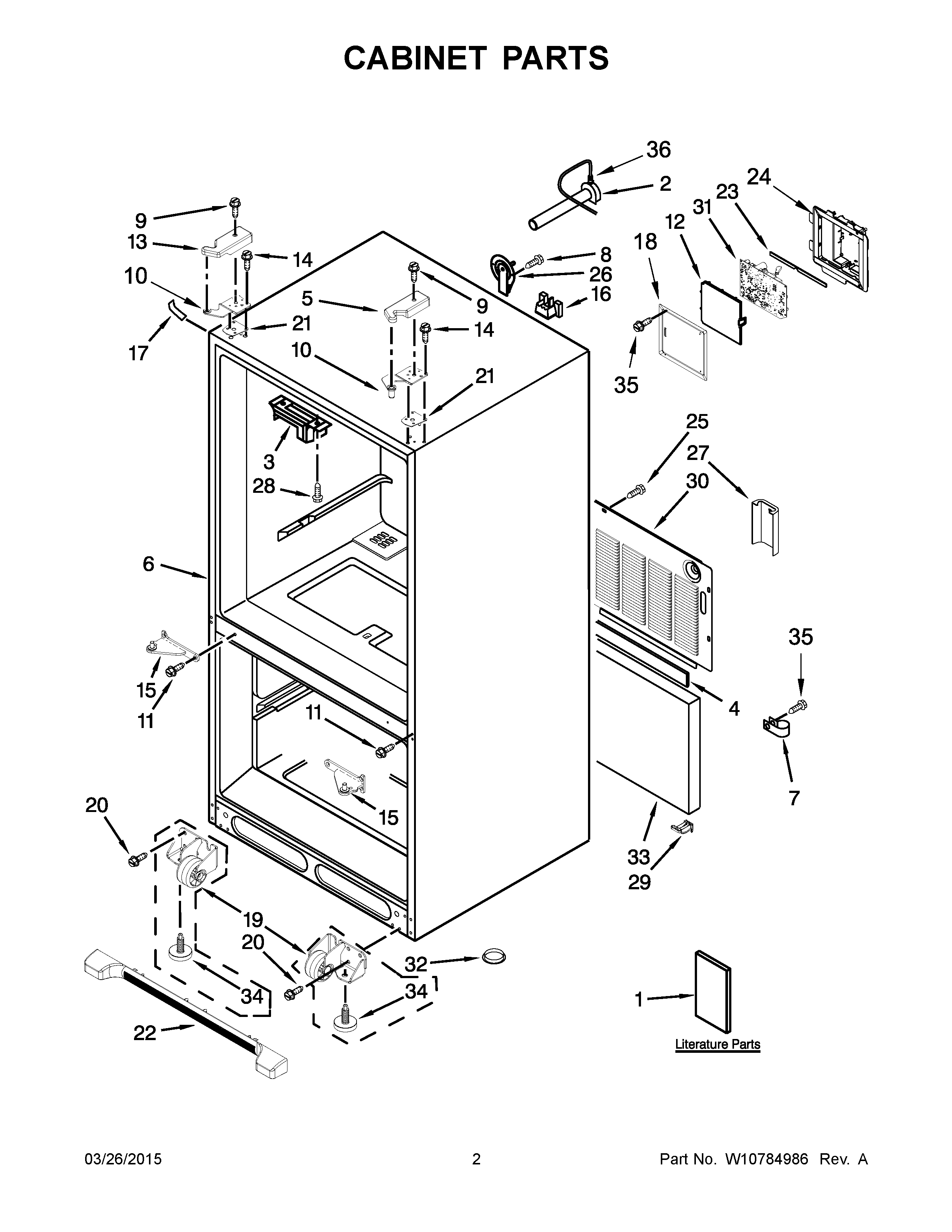

KRFF302EWH00 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1AUSE AND CARE GUIDE
1BENERGY GUIDE
2W11176463 Whirlpool Refrigerator Water Tube
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5AWP67005956 Whirlpool Refrigerator Cover
5BWPW10191117 Whirlpool Refrigerator Cover
567005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
6CABINET (NOT A SERVICEABLE PART)
7W11456069 Whirlpool Refrigerator Clamp
8WP98165 Whirlpool Screw
9WP8281196 Whirlpool Screw
10W11592375 Whirlpool Door Hinge
10AW11592374 Whirlpool Refrigerator Top Door Hinge
11WP67006380 Whirlpool Screw
12W10296541 Whirlpool Refrigerator Wire Cover
13BWPW10337648 Whirlpool Refrigerator Cover
13WPW10337634 Whirlpool Refrigerator Cover
13AW10337647 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15DW10918168 Whirlpool Refrigerator Door Hinge
15W10918113 Whirlpool Refrigerator Door Hinge
15AW10918164 Whirlpool Refrigerator Door Hinge
15C13000002WD Whirlpool Refrigerator Door Hinge
15BW10917988 Whirlpool Refrigerator Door Hinge
16W11686793 Whirlpool Block
17BWP12587703AP Whirlpool Refrigerator Filler
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
1812961602 Whirlpool Refrigerator Wire Cover
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
2112999501 Whirlpool Refrigerator Hinge Shim
21A12999502 Whirlpool Refrigerator Hinge Shim
22WPW10534161 Whirlpool Refrigerator Front Grille
22BWPW10534160 Whirlpool Refrigerator Front Grille
22AWPW10534162 Whirlpool Refrigerator Front Grille
23GASKET, HV BOX
24BOX, HV CONTROL
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W10854958 Whirlpool Refrigerator Screw
29W10528513 Whirlpool Tube Clamp
30W10210980 Whirlpool Refrigerator Back Cover
31WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
32A3076901 Whirlpool Refrigerator Plug
33INSULATION, SOUND
34WPW10141622 Whirlpool Leveler
35W11686675 Whirlpool Screw
36WPM0114003 Whirlpool Microwave Speed Clip Clamp
