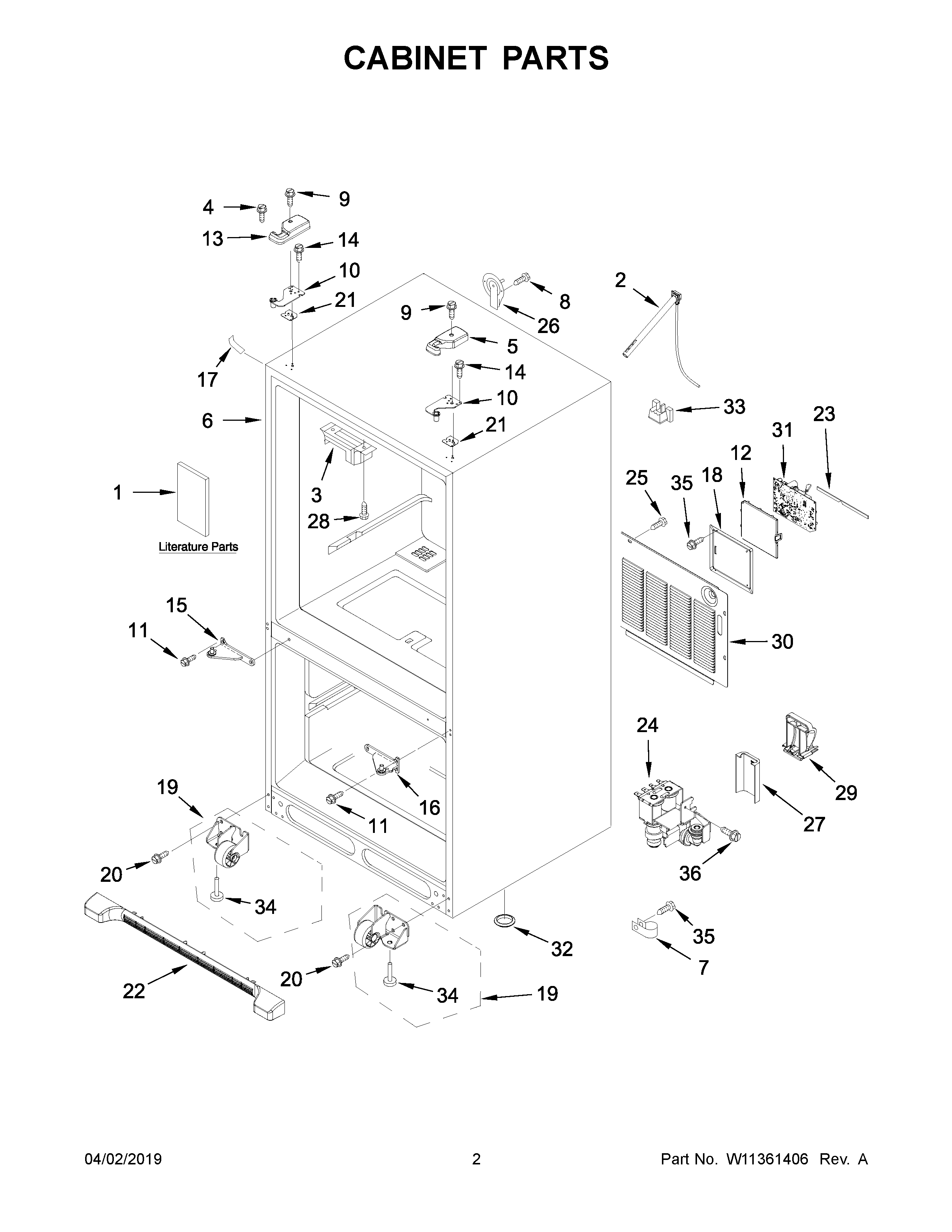

KRFF302EWH02 02 – CABINET PARTSadmin2025-04-26T12:29:41+00:00KRFF302EWH02 02 – CABINET PARTS ProductsPositionProduct1AUSE AND CARE GUIDE1BENERGY GUIDE1TECH SHEET2W11181718 Whirlpool Refrigerator Water Tube3WP67003405 Whirlpool Pivot Block4W11214483 Whirlpool Refrigerator Screw567005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)6CABINET (NOT A SERVICEABLE PART)7W11456069 Whirlpool Refrigerator Clamp8WP98165 Whirlpool Screw9WP8281196 Whirlpool Screw10W11592375 Whirlpool Door Hinge10AW11592374 Whirlpool Refrigerator Top Door Hinge11W11573362 Whirlpool Screw Assembly12W10296541 Whirlpool Refrigerator Wire Cover13WPW10337634 Whirlpool Refrigerator Cover14WP489349 Whirlpool Refrigerator Screw15W10918115 Whirlpool Refrigerator Door Hinge16W10918117 Whirlpool Refrigerator Door Hinge1712587703W Whirlpool Refrigerator Cover1812961602 Whirlpool Refrigerator Wire Cover19AWPW10515762 Whirlpool Refrigerator Cabinet Roller19WPW10515763 Whirlpool Refrigerator Cabinet Roller2067006564 Whirlpool Refrigerator Screw2112999501 Whirlpool Refrigerator Hinge Shim21A12999502 Whirlpool Refrigerator Hinge Shim22WPW10534161 Whirlpool Refrigerator Front Grille23GASKET, HV BOX24VALVE-WATER INLET REFR2567006425 Whirlpool Refrigerator Screw2612726003 Whirlpool Refrigerator Water Cover27W10208593 Whirlpool Refrigerator Valve Cover28W11693756 Whirlpool Screw Assembly29W10528513 Whirlpool Tube Clamp30W10210980 Whirlpool Refrigerator Back Cover31WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core32A3076901 Whirlpool Refrigerator Plug33W11686793 Whirlpool Block34WPW10141622 Whirlpool Leveler35W11686675 Whirlpool Screw36WP489128 Whirlpool Refrigerator Screw
