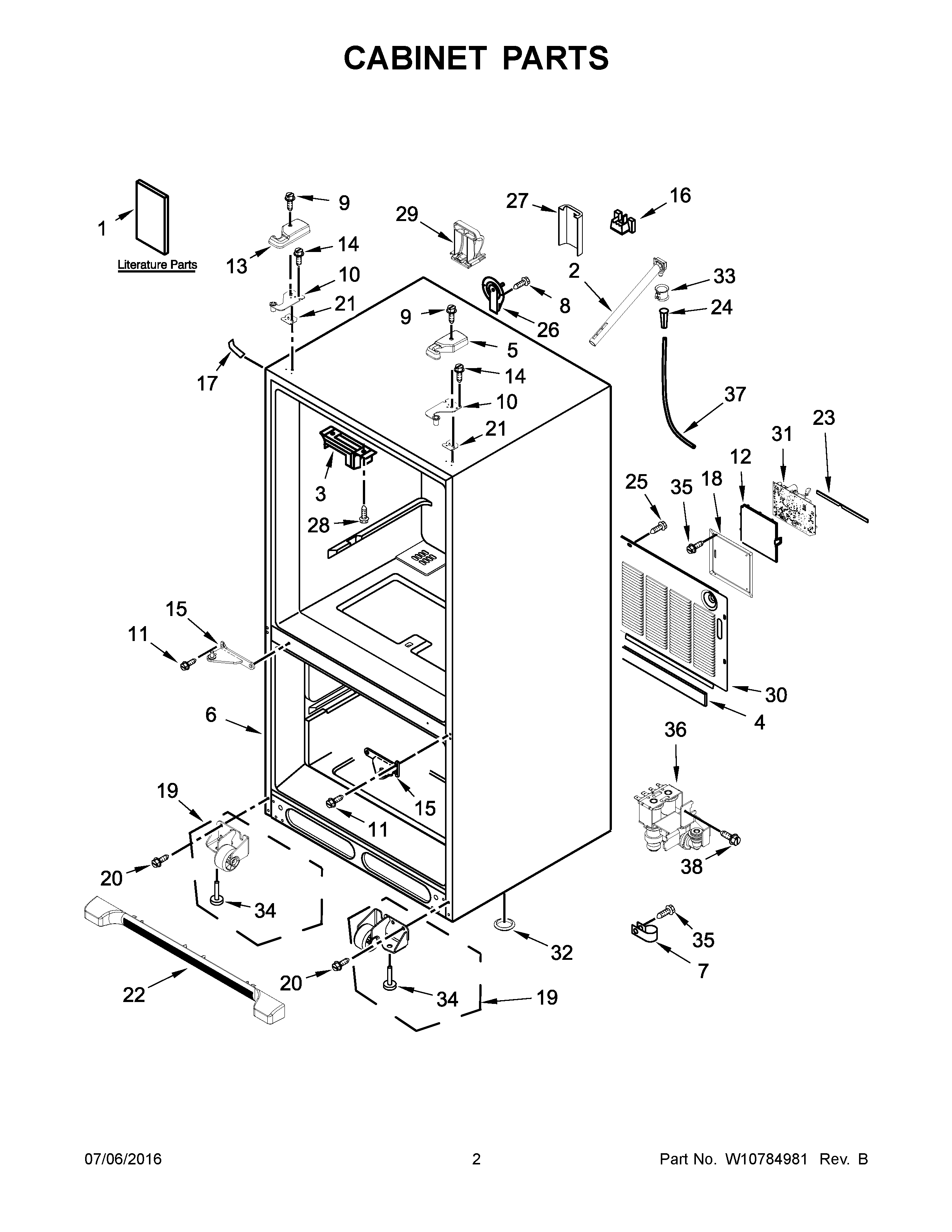

KRFF305EBS00 02 – CABINET PARTS

KRFF305EBS00 02 – CABINET PARTS

Written by

in

KRFF305EBS00 02 – CABINET PARTS

Products

Position	Product
1A	USE AND CARE GUIDE
1B	ENERGY GUIDE
1	TECH SHEET
2	W11176463 Whirlpool Refrigerator Water Tube
3	WP67003405 Whirlpool Pivot Block
4	B5759655 Whirlpool Refrigerator Gasket
5A	WP67005956 Whirlpool Refrigerator Cover
5B	WPW10191117 Whirlpool Refrigerator Cover
5	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
6	CABINET (NOT A SERVICEABLE PART)
7	W11456069 Whirlpool Refrigerator Clamp
8	WP98165 Whirlpool Screw
9	WP8281196 Whirlpool Screw
10A	W11592374 Whirlpool Refrigerator Top Door Hinge
10	W11592375 Whirlpool Door Hinge
11	W11573362 Whirlpool Screw Assembly
12	W10296541 Whirlpool Refrigerator Wire Cover
13A	W10337647 Whirlpool Refrigerator Cover
13	WPW10337634 Whirlpool Refrigerator Cover
13B	WPW10337648 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15	W10918113 Whirlpool Refrigerator Door Hinge
15A	W10918164 Whirlpool Refrigerator Door Hinge
15B	W10917988 Whirlpool Refrigerator Door Hinge
15D	W10918168 Whirlpool Refrigerator Door Hinge
15C	13000002WD Whirlpool Refrigerator Door Hinge
16	W11686793 Whirlpool Block
17B	WP12587703AP Whirlpool Refrigerator Filler
17	12587703W Whirlpool Refrigerator Cover
17A	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	12961602 Whirlpool Refrigerator Wire Cover
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	12999501 Whirlpool Refrigerator Hinge Shim
21A	12999502 Whirlpool Refrigerator Hinge Shim
22	WPW10534154 Whirlpool Refrigerator Front Grille
22A	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22B	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23	GASKET, HV BOX
24	WPA3223101 Whirlpool Refrigerator Insert PL
25	67006425 Whirlpool Refrigerator Screw
26	12726003 Whirlpool Refrigerator Water Cover
27	W10208593 Whirlpool Refrigerator Valve Cover
28	W10854958 Whirlpool Refrigerator Screw
29	W10528513 Whirlpool Tube Clamp
30	WPW10211855 Whirlpool Refrigerator Back Cover
31	WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
32	A3076901 Whirlpool Refrigerator Plug
33	WPM0114003 Whirlpool Microwave Speed Clip Clamp
34	WPW10141622 Whirlpool Leveler
35	W11686675 Whirlpool Screw
36	VALVE-WATER INLET REFR
37	W11120581 Whirlpool Refrigerator Water Tube
38	WP489128 Whirlpool Refrigerator Screw
