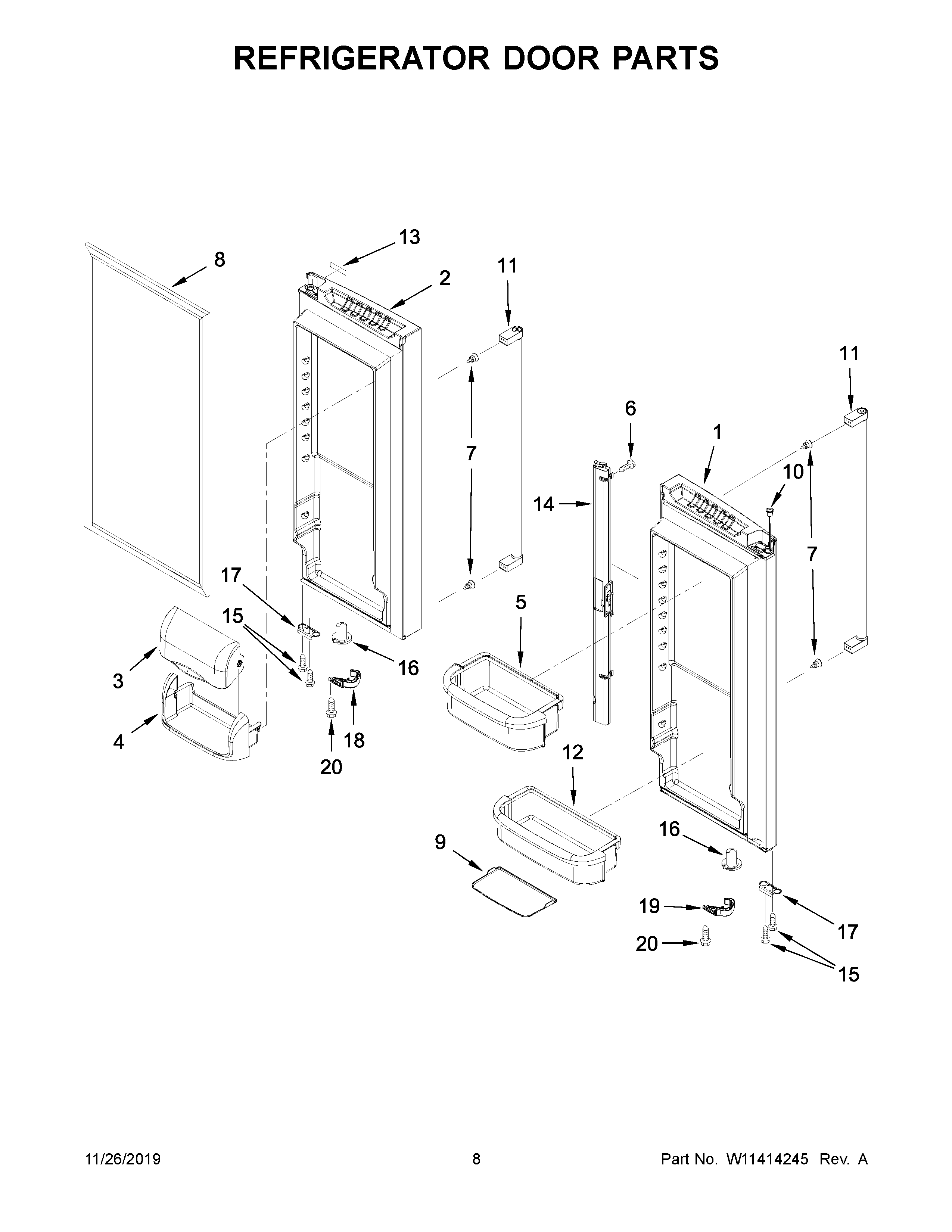

KRFF305EBS02 05 – REFRIGERATOR DOOR PARTS

KRFF305EBS02 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFF305EBS02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10919641 Whirlpool Refrigerator Door Assembly
2W10919633 Whirlpool Refrigerator Door Assembly
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6W11311945 Whirlpool Refrigerator Screw
7W11449276 Whirlpool Handle Support
8GASKET-FIP
9W11402028 Whirlpool Refrigerator Mat
1012996601 Whirlpool Refrigerator Bushing Clip
11W11483532 Whirlpool Refrigerator Handle
12WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13W10876598 Whirlpool Refrigerator Nameplate
14WP12722803B Whirlpool Door Guide
15WP98165 Whirlpool Screw
16WP67003639 Whirlpool Refrigerator Closer
17W11708403 Whirlpool Door Stop
18W10918171 Whirlpool Refrigerator Closer
19W10918170 Whirlpool Refrigerator Closer
20WP489474 Whirlpool Refrigerator Screw
