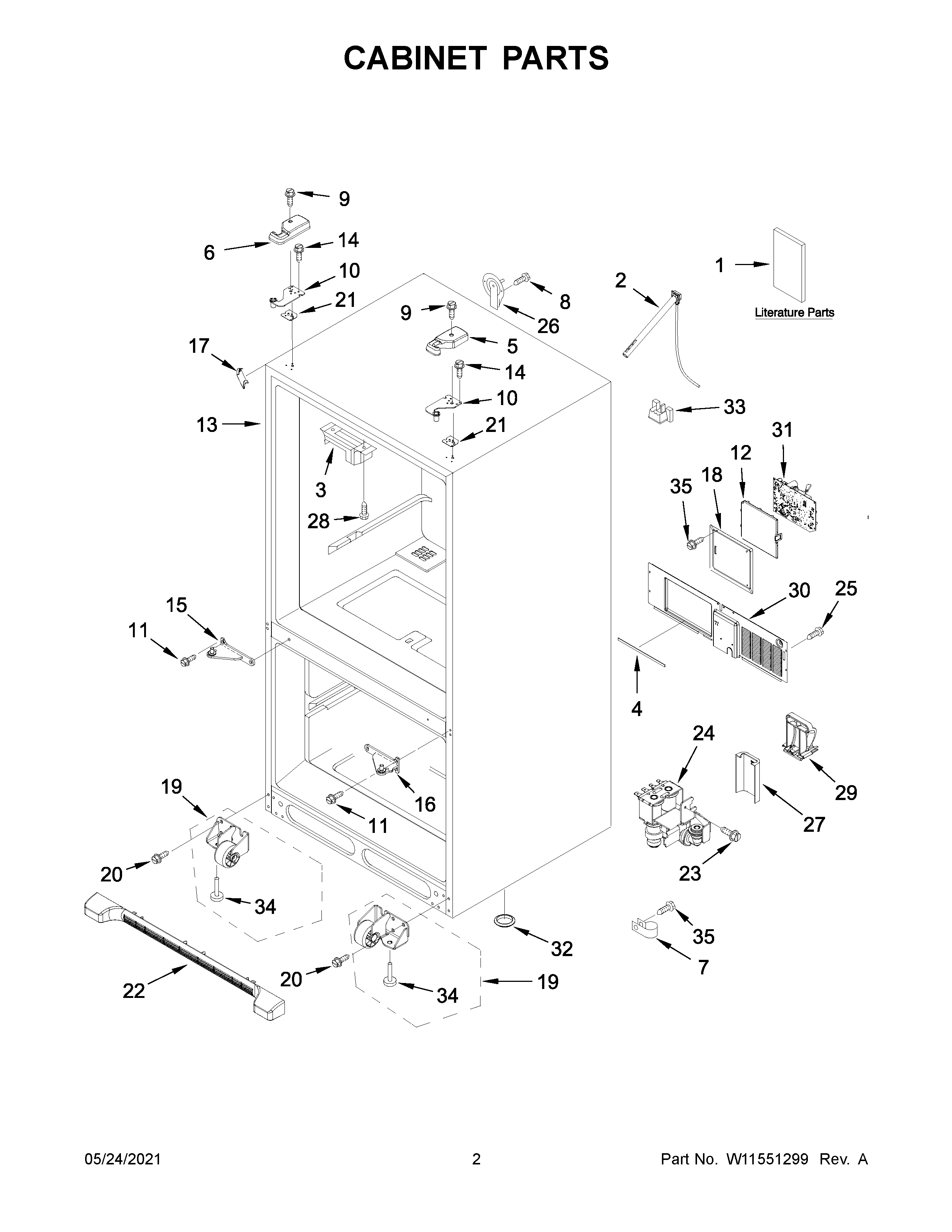

KRFF305EBS05 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1AUSE AND CARE GUIDE
1BENERGY GUIDE
2W11181718 Whirlpool Refrigerator Water Tube
3WP67003405 Whirlpool Pivot Block
4W11534848 Whirlpool Gasket
5WP67005956 Whirlpool Refrigerator Cover
6W10337647 Whirlpool Refrigerator Cover
7W11456069 Whirlpool Refrigerator Clamp
8WP98165 Whirlpool Screw
9WP8281196 Whirlpool Screw
10W11592375 Whirlpool Door Hinge
10AW11592374 Whirlpool Refrigerator Top Door Hinge
11W11573362 Whirlpool Screw Assembly
12W11226688 Whirlpool Refrigerator Cover
13CABINET (NOT A SERVICEABLE PART)
14WP489349 Whirlpool Refrigerator Screw
15W10918166 Whirlpool Refrigerator Door Hinge
16W10918168 Whirlpool Refrigerator Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1812961602 Whirlpool Refrigerator Wire Cover
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
2112999501 Whirlpool Refrigerator Hinge Shim
21A12999502 Whirlpool Refrigerator Hinge Shim
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23WP489128 Whirlpool Refrigerator Screw
24W11524655 Whirlpool Refrigerator Valve
25SCREW
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W11693756 Whirlpool Screw Assembly
29W10528513 Whirlpool Tube Clamp
30WPW10211855 Whirlpool Refrigerator Back Cover
31WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
32A3076901 Whirlpool Refrigerator Plug
33W11686793 Whirlpool Block
34WPW10141622 Whirlpool Leveler
35W11686675 Whirlpool Screw
