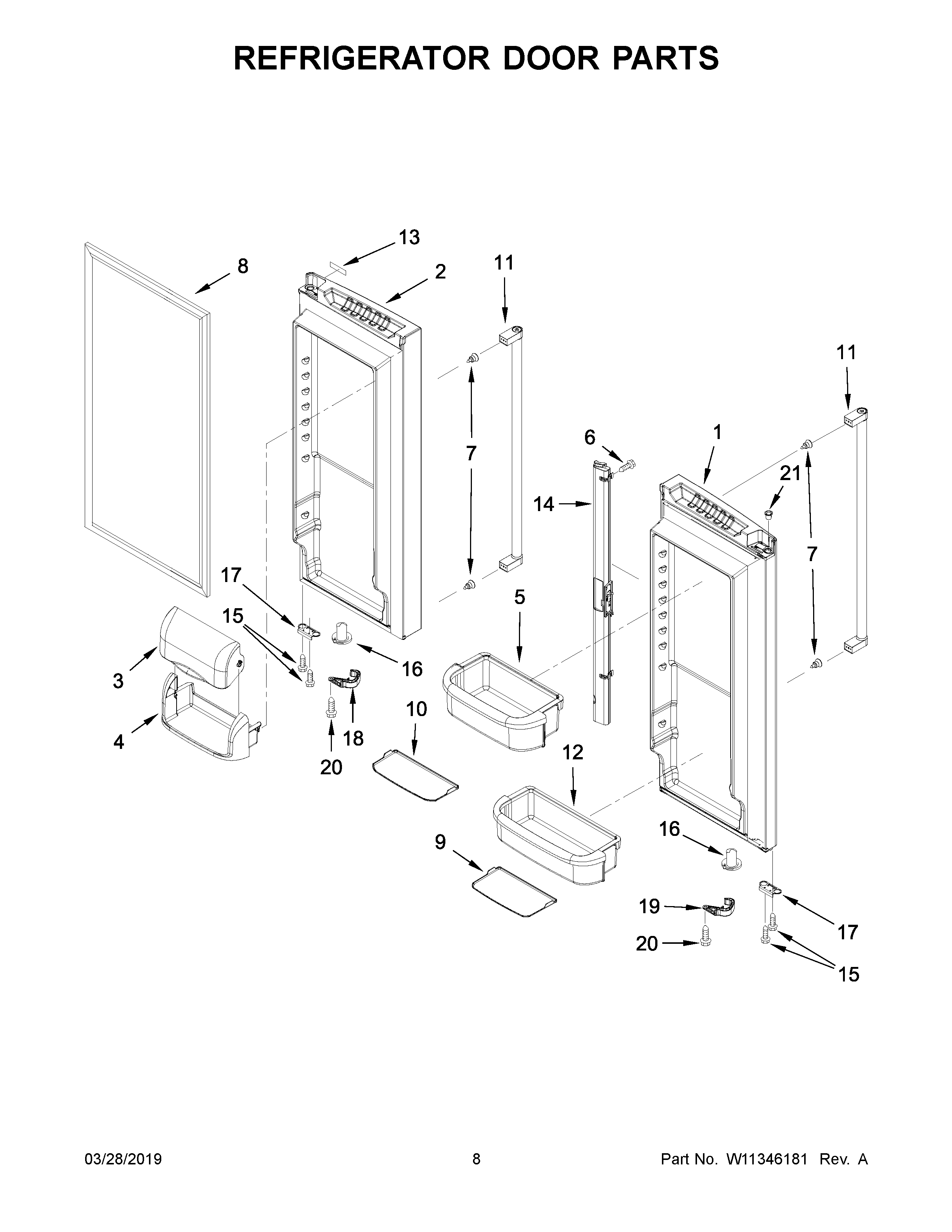

KRFF305ESS02 05 – REFRIGERATOR DOOR PARTS

KRFF305ESS02 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFF305ESS02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1A13107888SQ Whirlpool Refrigerator DOR-FIP Stainless Steel
113107888WQ Whirlpool Refrigerator DOR FIP WH
213107887WQ Whirlpool Refrigerator FIP Door White
2A13107887SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6W11311945 Whirlpool Refrigerator Screw
7WPW10661886 Whirlpool Refrigerator Door Handle Screw
8W10830189 Whirlpool Refrigerator Door Gasket
8AGASKET-FIP
9W11402028 Whirlpool Refrigerator Mat
10WPW10450021 Whirlpool Refrigerator Mat
11W11483532 Whirlpool Refrigerator Handle
12WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13W10876598 Whirlpool Refrigerator Nameplate
14AWP12722803AP Whirlpool Refrigerator Mullion Rail
14RAIL-MULLN WHITE
15WP98165 Whirlpool Screw
16WP67003638 Whirlpool Closing Cam
16AWP12028505AP Whirlpool Closing Cam
1712968202W Whirlpool Refrigerator Door Stop
17AW11703060 Whirlpool Door Stop
18AW10918010 Whirlpool Refrigerator Closer
18W10918120 Whirlpool Refrigerator Closer
19AW10918008 Whirlpool Refrigerator Closer
19W10918118 Whirlpool Refrigerator Door Closer
20WP489474 Whirlpool Refrigerator Screw
2112996601 Whirlpool Refrigerator Bushing Clip
