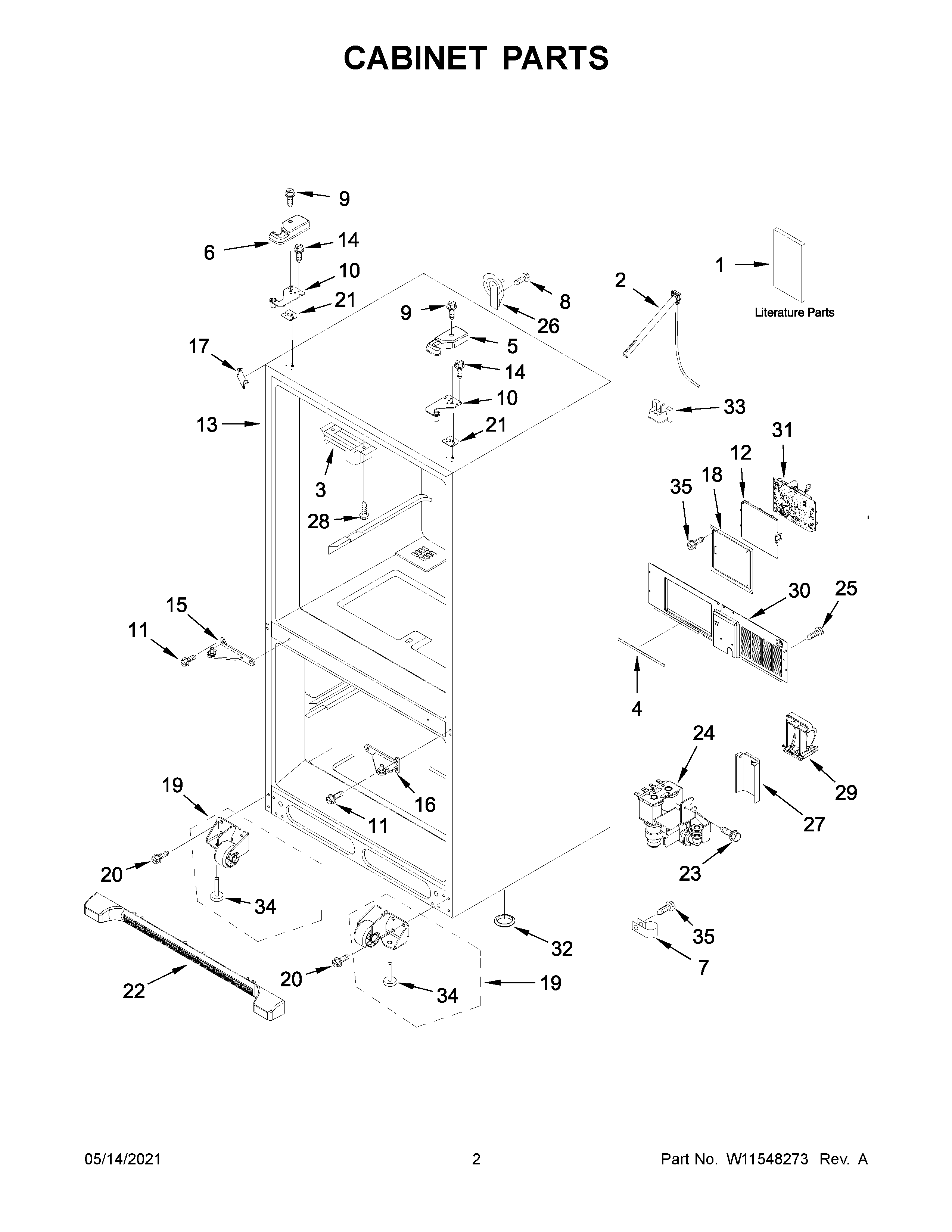

KRFF305ESS06 02 – CABINET PARTS

KRFF305ESS06 02 – CABINET PARTS

Written by

in

KRFF305ESS06 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1BENERGY GUIDE
1AUSE AND CARE GUIDE
2W11181718 Whirlpool Refrigerator Water Tube
3WP67003405 Whirlpool Pivot Block
4W11534848 Whirlpool Gasket
567005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
5AWPW10191117 Whirlpool Refrigerator Cover
6AWPW10337648 Whirlpool Refrigerator Cover
6WPW10337634 Whirlpool Refrigerator Cover
7W11456069 Whirlpool Refrigerator Clamp
8WP98165 Whirlpool Screw
9WP8281196 Whirlpool Screw
10AW11592374 Whirlpool Refrigerator Top Door Hinge
10W11592375 Whirlpool Door Hinge
11W11573362 Whirlpool Screw Assembly
12W11226688 Whirlpool Refrigerator Cover
13CABINET (NOT A SERVICEABLE PART)
14WP489349 Whirlpool Refrigerator Screw
15AW10917991 Whirlpool Refrigerator Door Hinge
15W10918115 Whirlpool Refrigerator Door Hinge
16W10918117 Whirlpool Refrigerator Door Hinge
16AHINGE-DOOR
1712587703W Whirlpool Refrigerator Cover
17AWP12587703AP Whirlpool Refrigerator Filler
1812961602 Whirlpool Refrigerator Wire Cover
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534154 Whirlpool Refrigerator Front Grille
22AWPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23WP489128 Whirlpool Refrigerator Screw
24W11524655 Whirlpool Refrigerator Valve
25SCREW
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W11693756 Whirlpool Screw Assembly
29W10528513 Whirlpool Tube Clamp
30WPW10211855 Whirlpool Refrigerator Back Cover
31WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
32A3076901 Whirlpool Refrigerator Plug
33W11686793 Whirlpool Block
34WPW10141622 Whirlpool Leveler
35W11686675 Whirlpool Screw
