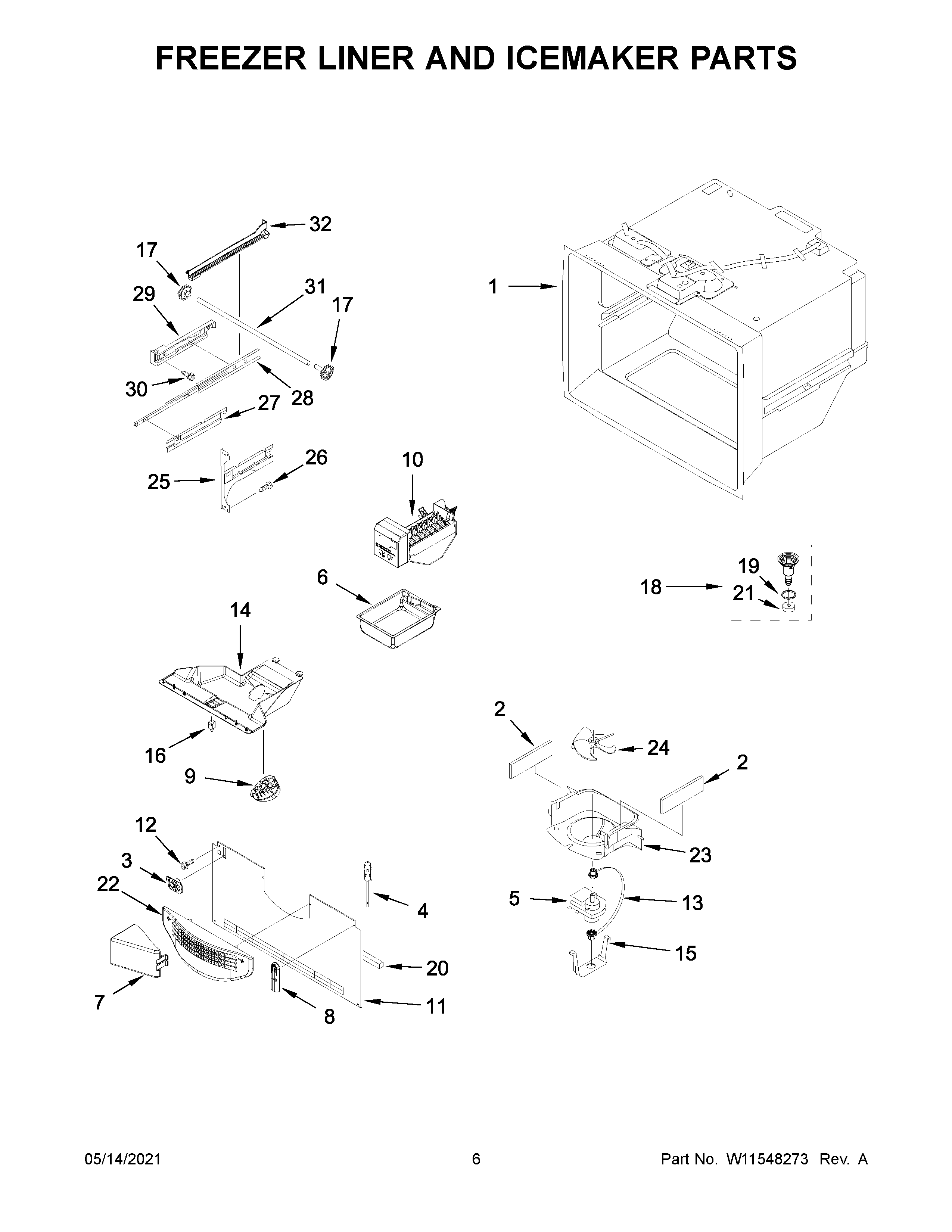

KRFF305ESS06 04 – FREEZER LINER AND ICEMAKER PARTS

Written by

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10856123 Whirlpool Refrigerator Gasket
3	GUIDE, FILL TUBE
4	W10316760 Whirlpool Thermistor Kit
5	MOTOR-EVAP
6	WPW10171529 Whirlpool Refrigerator Ice Pan
7	W10157765 Whirlpool Refrigerator Deflector
8	WP67003924 Whirlpool Refrigerator Cover
9	MODULE
10	W11692144 Whirlpool Ice Maker
11	W11727809 Whirlpool Evaporator Cover
12	67006425 Whirlpool Refrigerator Screw
13	W11690160 Whirlpool Grommet
14	WPW10277025 Whirlpool Refrigerator Housing
15	CLIP, EVAPORATOR MOTOR
16	W11396033 Whirlpool Refrigerator Rocker Switch
17	12002497 Whirlpool Refrigerator Drawer Gear Kit
18	W10815413 Whirlpool Refrigerator Funnel
19	WPM0500703 Whirlpool Refrigerator O-Ring Seal
20	W11159728 Whirlpool Refrigerator Gasket
21	WPB8381501 Whirlpool Refrigerator Door Gasket
22	WPW10175909 Whirlpool Grille Assembly
23	WPW10167023 Whirlpool Refrigerator Shroud
24	WP2169142 Whirlpool Fan Blade
25A	WPW10330993 Whirlpool Refrigerator Bracket
25	WPW10330991 Whirlpool Refrigerator Bracket
26	WP98165 Whirlpool Screw
27	WPW10280608 Whirlpool Refrigerator Bracket
27A	WPW10280613 Whirlpool Refrigerator Bracket
28	W11658402 Whirlpool Drawer Slide Rail
29	WPW10284684 Whirlpool Refrigerator Bracket
29A	WPW10284685 Whirlpool Refrigerator Bracket
30	WP489474 Whirlpool Refrigerator Screw
31	W11028221 Whirlpool Refrigerator Shaft
32	W11489993 Whirlpool Refrigerator Rail
32A	W11489994 Whirlpool Refrigerator Rail
