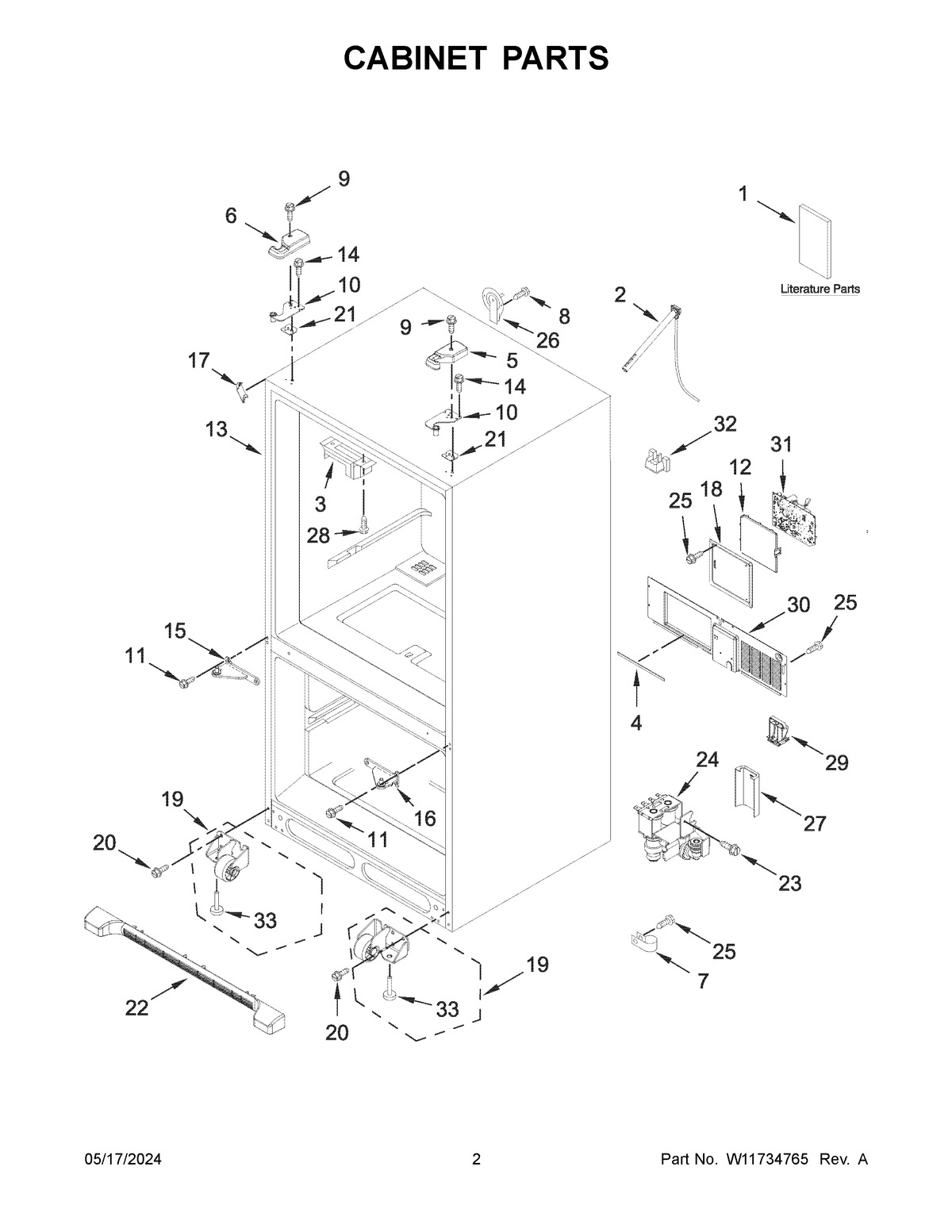

KRFF305ESS09 02 – CABINET PARTS

KRFF305ESS09 02 – CABINET PARTS

Written by

in

KRFF305ESS09 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1AOWNERS MANUAL
1TECH SHEET
2W11181718 Whirlpool Refrigerator Water Tube
3WP67003405 Whirlpool Pivot Block
4W11534848 Whirlpool Gasket
5WPW10191117 Whirlpool Refrigerator Cover
6WPW10337648 Whirlpool Refrigerator Cover
7W11456069 Whirlpool Refrigerator Clamp
8WP98165 Whirlpool Screw
9WP8281196 Whirlpool Screw
10AW11592374 Whirlpool Refrigerator Top Door Hinge
10W11592375 Whirlpool Door Hinge
11W11573362 Whirlpool Screw Assembly
12W10296541 Whirlpool Refrigerator Wire Cover
13CABINET (NOT A SERVICEABLE PART)
14WP489349 Whirlpool Refrigerator Screw
15W11642008 Whirlpool Door Hinge
16W11642010 Whirlpool Door Hinge
17WP12587703AP Whirlpool Refrigerator Filler
1812961602 Whirlpool Refrigerator Wire Cover
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23WP489128 Whirlpool Refrigerator Screw
24W11524655 Whirlpool Refrigerator Valve
25W11686675 Whirlpool Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W11693756 Whirlpool Screw Assembly
29W10528513 Whirlpool Tube Clamp
30WPW10211855 Whirlpool Refrigerator Back Cover
31WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
32W11686793 Whirlpool Block
33WPW10141622 Whirlpool Leveler
