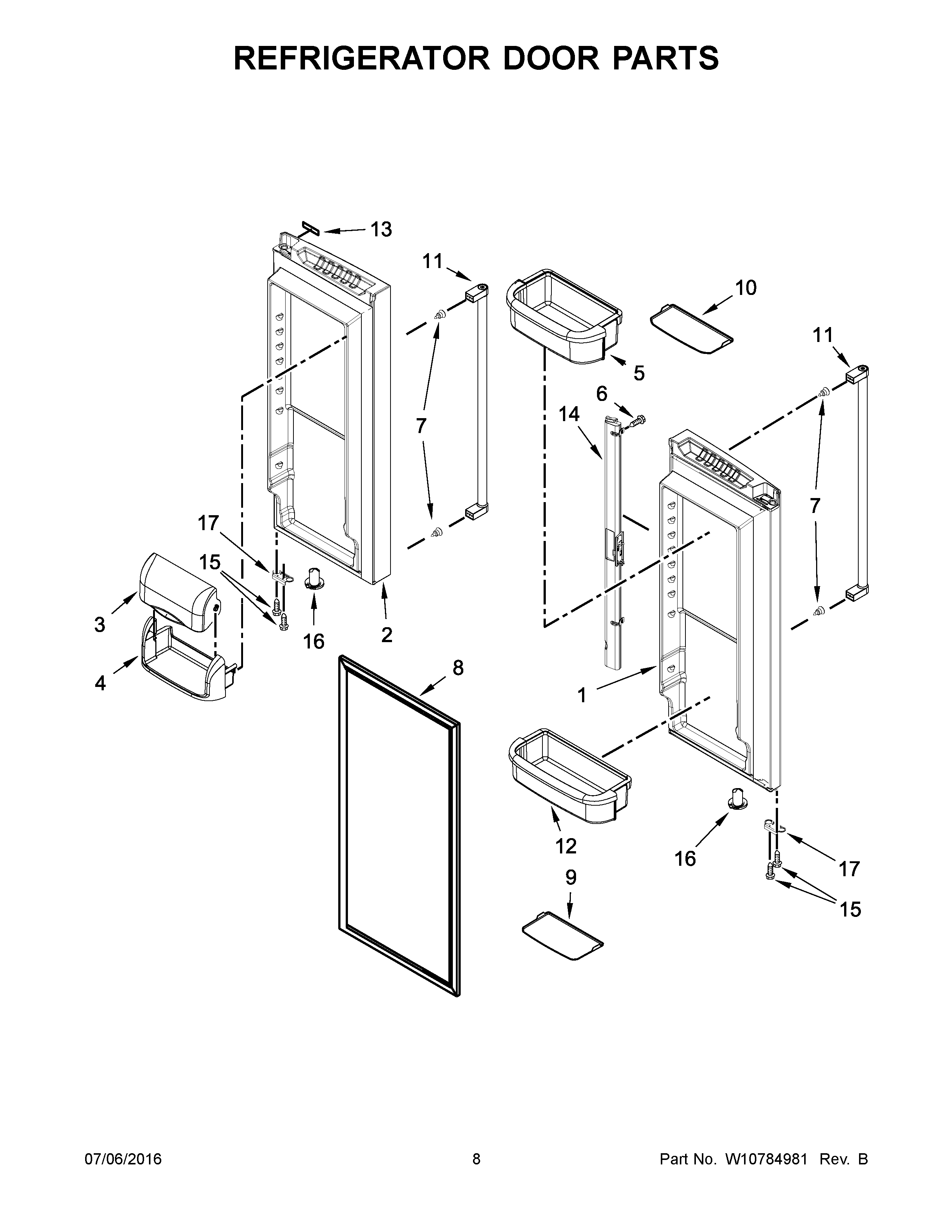

KRFF305EWH00 05 – REFRIGERATOR DOOR PARTS

KRFF305EWH00 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFF305EWH00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
113107888WQ Whirlpool Refrigerator DOR FIP WH
1B13107888SQ Whirlpool Refrigerator DOR-FIP Stainless Steel
1A13107888BQ Whirlpool Refrigerator Black Foam In Place Doorack
1CW10919641 Whirlpool Refrigerator Door Assembly
2CW10919633 Whirlpool Refrigerator Door Assembly
213107887WQ Whirlpool Refrigerator FIP Door White
2A13107887BQ Whirlpool Refrigerator Black Foam In Place Door
2B13107887SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6W11311945 Whirlpool Refrigerator Screw
7WPW10661886 Whirlpool Refrigerator Door Handle Screw
8W10830189 Whirlpool Refrigerator Door Gasket
8AGASKET-FIP
8BGASKET-FIP
9W11402028 Whirlpool Refrigerator Mat
10WPW10450021 Whirlpool Refrigerator Mat
11W11483532 Whirlpool Refrigerator Handle
12WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13W10876598 Whirlpool Refrigerator Nameplate
14RAIL-MULLN WHITE
14AWP12722803B Whirlpool Door Guide
14BWP12722803AP Whirlpool Refrigerator Mullion Rail
15WP98165 Whirlpool Screw
16AWP67003639 Whirlpool Refrigerator Closer
16BWP12028505AP Whirlpool Closing Cam
16WP67003638 Whirlpool Closing Cam
17AW11708403 Whirlpool Door Stop
17BW11703060 Whirlpool Door Stop
1712968202W Whirlpool Refrigerator Door Stop
