KRFF305EWH00 08 – SHELF PARTS

KRFF305EWH00 08 – SHELF PARTS

Written by

in

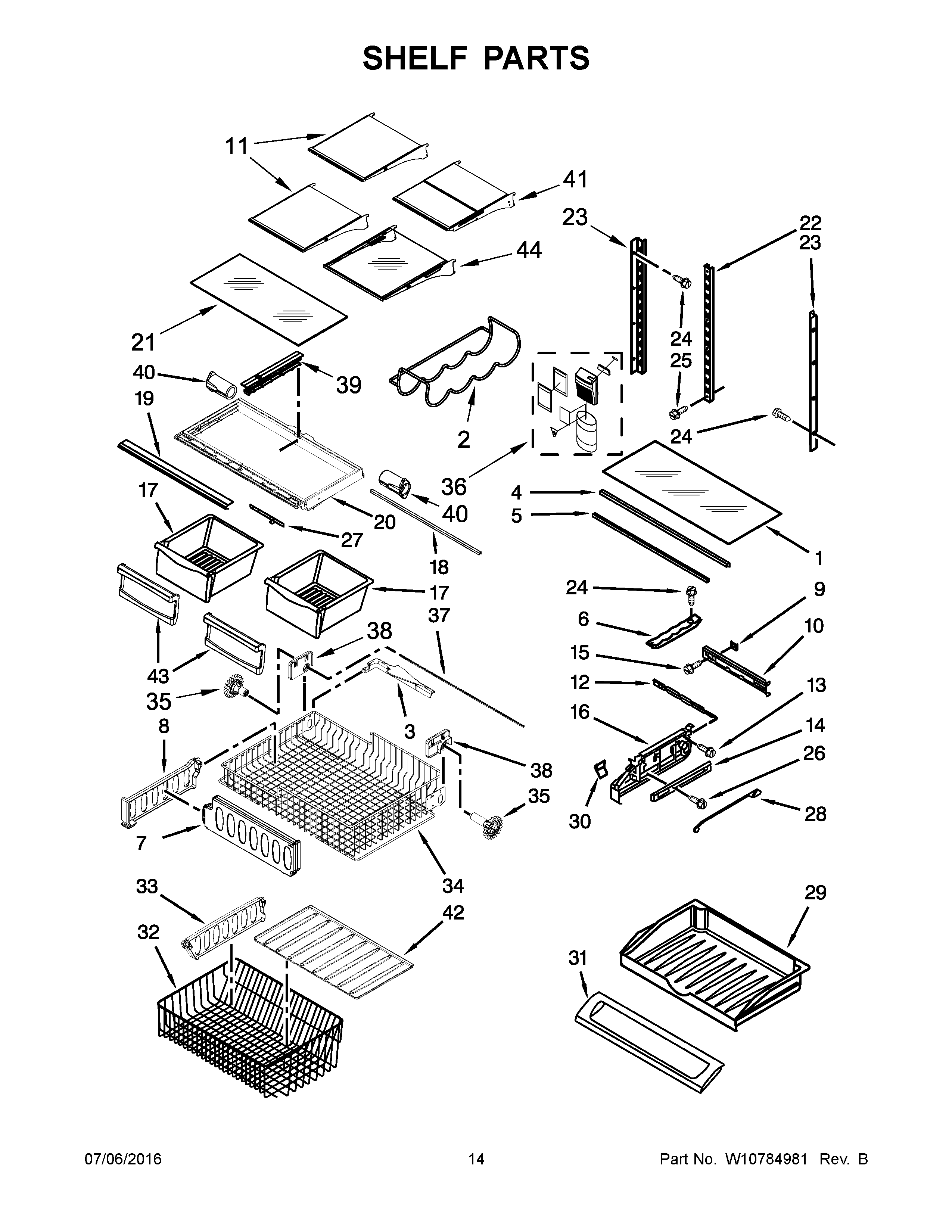

KRFF305EWH00 08 – SHELF PARTS

Products

Position	Product
1	W11033333 Whirlpool Glass Shelf
2	W11214481 Whirlpool Refrigerator Wine Rack
3	W10149389 Whirlpool Refrigerator Handle
4	W11210956 Whirlpool Refrigerator Shelf Trim
5	WP12227305WD Whirlpool Drawer Support
6	WP67001719 Whirlpool Refrigerator Track
7	W10171558 Whirlpool Refrigerator Divider
8	W10241046 Whirlpool Refrigerator Divider
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	12656202 Whirlpool Refrigerator Housing
11	WPW10739590 Whirlpool Refrigerator Glass Shelf
12	WP67003793 Whirlpool Refrigerator Temperature Slide
13	WP67006415 Whirlpool Refrigerator Screw
14	WPW10235370 Whirlpool Refrigerator Glide
16A	W10874836 Whirlpool Endcap Assembly Left Hand and Right
17	WP67004515 Whirlpool Crisper Drawer
18	WP12642303WD Whirlpool Refrigerator Drawer Support
19	WPW10231345 Whirlpool Refrigerator Shelf Trim
20	WPW10329866 Whirlpool Frame
21	WP67006704 Whirlpool Glass Crisper Cover
22	W10273463 Whirlpool Refrigerator Ladder
23	WPW10569182 Whirlpool Refrigerator Ladder
24	67006425 Whirlpool Refrigerator Screw
25	W10215666 Whirlpool Refrigerator Screw
26	WP98165 Whirlpool Screw
27	SLIDE
28	WP67003795 Whirlpool Refrigerator Temperature Control Bar
29	WP67003531 Whirlpool Drawer Assembly
30	W11498983 Whirlpool Refrigerator Knob
31	W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
32	WPW10503184 Whirlpool Refrigerator Freezer Basket
33	W10847995 Whirlpool Divider Assembly
34	WPW10348246 Whirlpool Refrigerator Freezer Basket
35A	WPW10474715 Whirlpool Refrigerator Gear
35	WPW10474716 Whirlpool Refrigerator Gear
36	ASSEMBLY, PRODUCE PRESERVER
37	W11173556 Whirlpool Refrigerator Shaft
38A	W10348260 Whirlpool Refrigerator Bracket
38	W10348259 Whirlpool Refrigerator Bracket Assembly
39	WPW10326469 Whirlpool Drawer Slide Rail
40	WP13062602 Whirlpool Refrigerator Support
41	WPW10738157 Whirlpool Refrigerator Glass Shelf
42	WP67006104 Whirlpool Refrigerator Tray
43	WP67005923 Whirlpool Refrigerator Front Cover
44	W10891927 Whirlpool Refrigerator Glass Shelf
