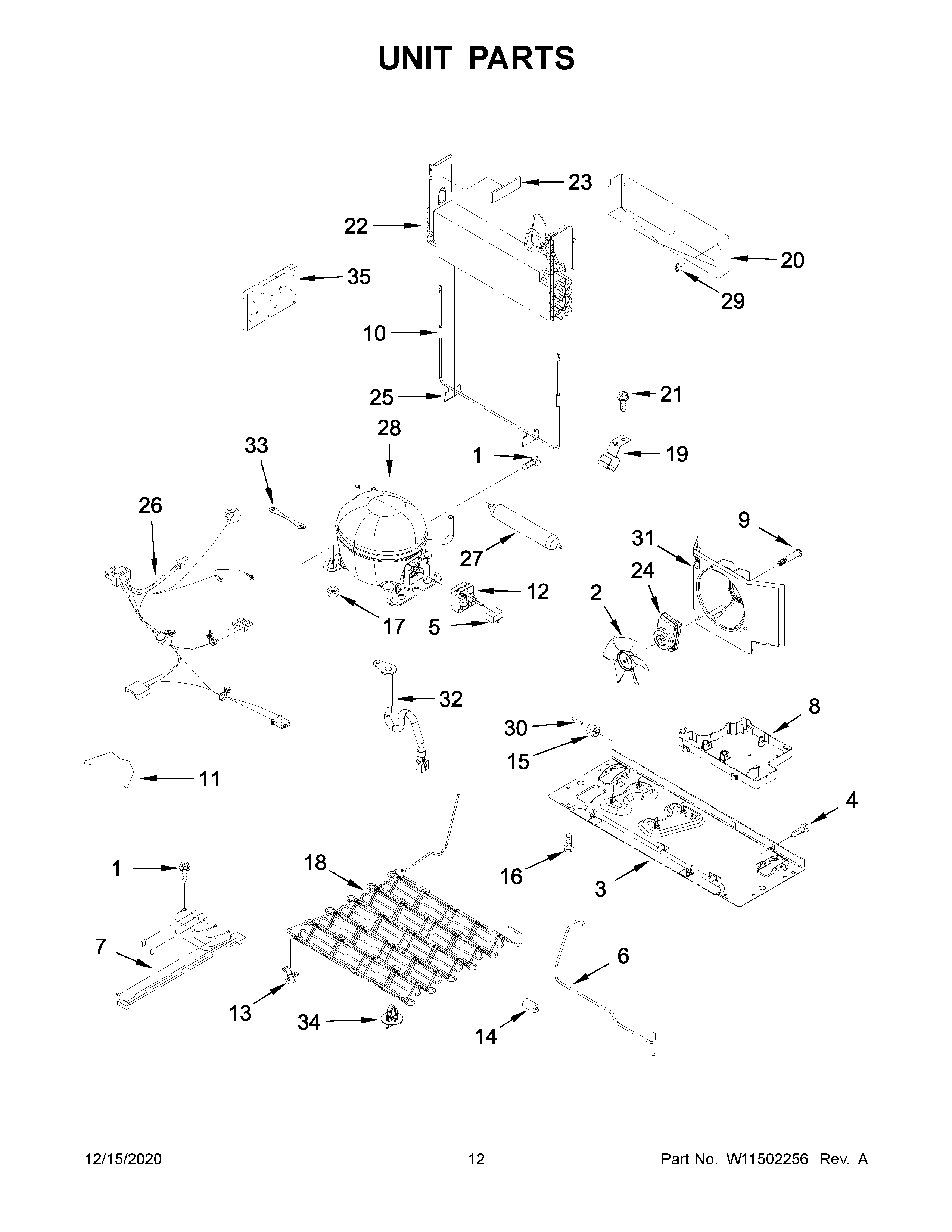

KRFF305EWH04 07 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
4	67006425 Whirlpool Refrigerator Screw
5	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
7	HARNS-WIRE
8	WPW10655368 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	WP12729123 Whirlpool Refrigerator Heater
11	W11092534 Whirlpool Refrigerator Clip
12	W11092533 Whirlpool Device Start
13	WPW10137529 Whirlpool Refrigerator Grommet
14	W10852725 Whirlpool Refrigerator Grommet
15	WP67005149 Whirlpool Roller
16	Screw
17	W11678963 Whirlpool Grommet
18	W11644420 Whirlpool Condenser
19	W10281329 Whirlpool Clamp
20	W11547653 Whirlpool Refrigerator Drip Tray
21	WP33001882 Whirlpool Screw
22	W11256565 Whirlpool Refrigerator Evaporator
23	W11451451 Whirlpool Refrigerator Gasket
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	W11224411 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W11209866 Whirlpool Refrigerator Compressor
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	W10619951 Whirlpool Drain Tube with Grommet
33	W10236396 Whirlpool Refrigerator Strap
34	W10815863 Whirlpool Clip
35	W11553819 Whirlpool Refrigerator Insulation
