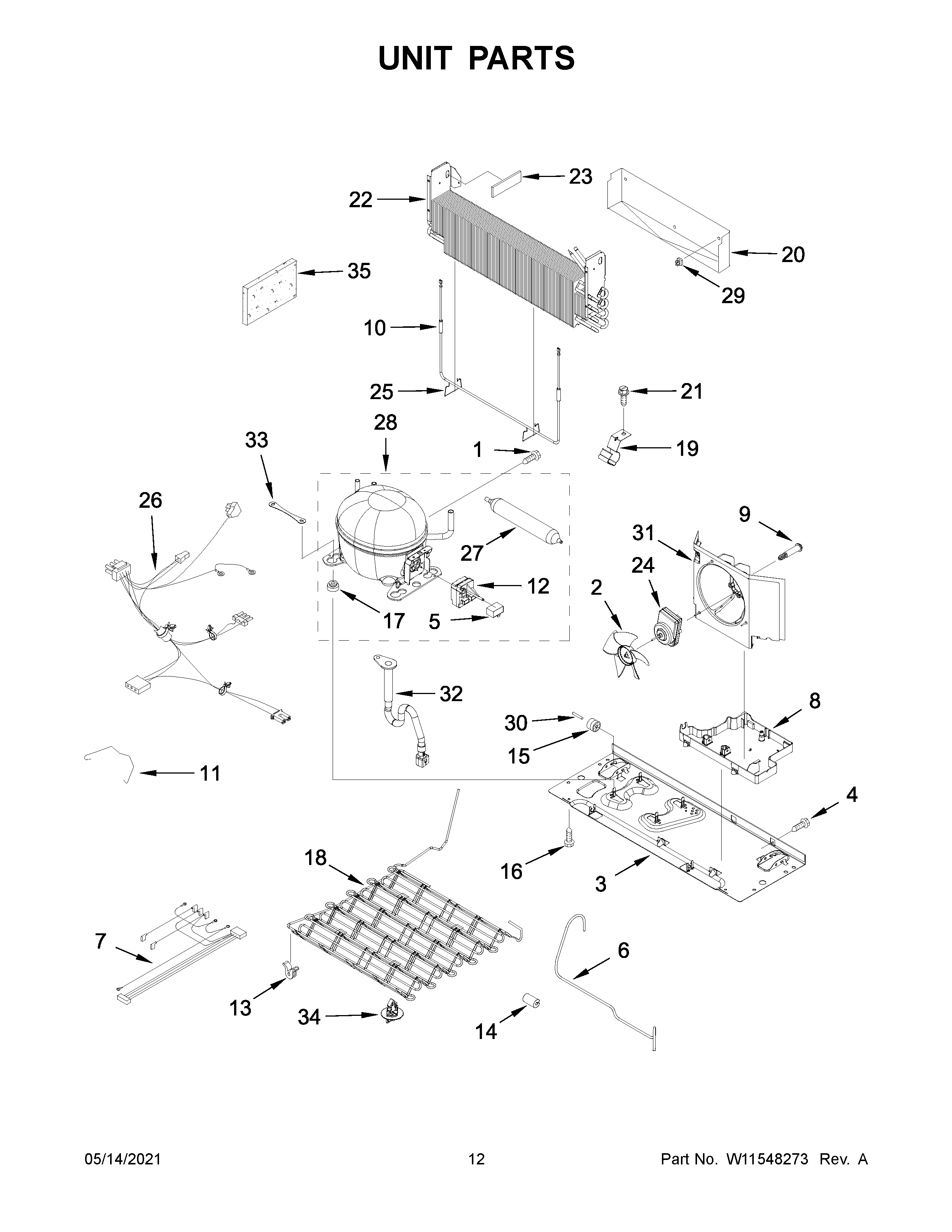

KRFF305EWH06 07 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
4	67006425 Whirlpool Refrigerator Screw
5	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
7	W11708428 Whirlpool Wire Harness
8	WPW10655368 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	W11547652 Whirlpool Refrigerator Heater
11	WPL W11379613
12	W11524472 Whirlpool Refrigerator Start Device
13	WPW10137529 Whirlpool Refrigerator Grommet
14	W10852725 Whirlpool Refrigerator Grommet
15	WP67005149 Whirlpool Roller
16	Screw
17	WPW10169124 Whirlpool Refrigerator Grommet
18B	W11504432 Whirlpool Refrigerator Coupler
18A	W11506623 Whirlpool Refrigerator Coupler
18	W11644420 Whirlpool Condenser
19	W10281329 Whirlpool Clamp
20	W11547653 Whirlpool Refrigerator Drip Tray
21	WP33001882 Whirlpool Screw
22B	W11504415 Whirlpool Refrigerator Coupler
22A	W11504423 Whirlpool Refrigerator Coupler
22	W11598433 Whirlpool Refrigerator Evaporator Repair
23	W11451451 Whirlpool Refrigerator Gasket
24	W11613295 Whirlpool Condenser Motor
25	W11380964 Whirlpool Clip Assembly
26	HARNS-WIRE
27B	W11504447 Whirlpool Refrigerator Coupler
27A	W11504445 Whirlpool Refrigerator Coupler
27	W11109499 Whirlpool Refrigerator Tube
28C	W11506621 Whirlpool Refrigerator Coupler
28D	W11506635 Whirlpool Refrigerator Valve Coupler
28	W11547313 Whirlpool Refrigerator Compressor
28B	W11504431 Whirlpool Microwave Coupler
28A	W11504416 Whirlpool Refrigerator Coupler
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	W10619951 Whirlpool Drain Tube with Grommet
33	W10236396 Whirlpool Refrigerator Strap
34	W10815863 Whirlpool Clip
35	W11553819 Whirlpool Refrigerator Insulation
