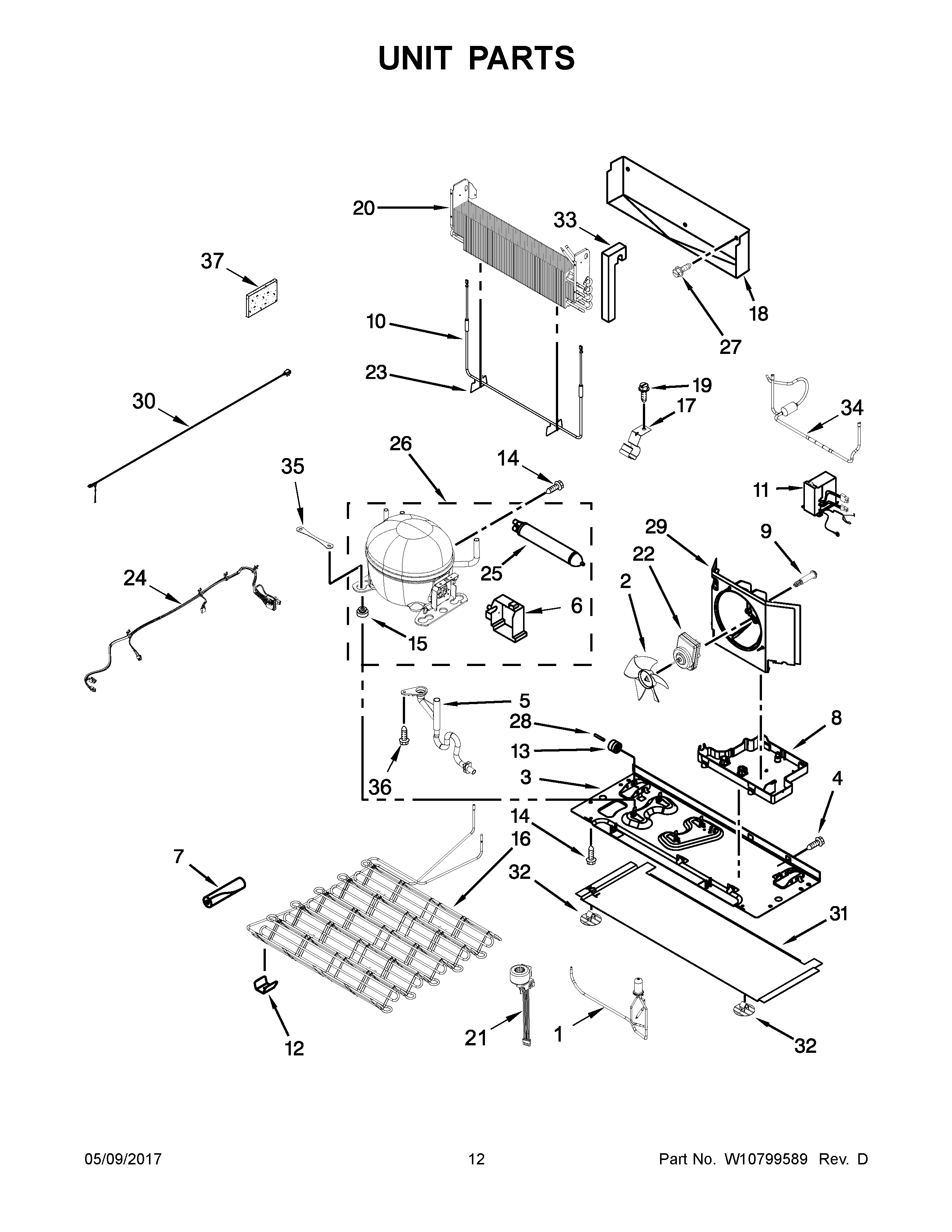

KRFF507EBL00 07 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W11580434 Whirlpool Refrigerator Valve
2	WP2188935 Whirlpool Refrigerator Fan Blade
3	W10570074 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W11745092 Whirlpool Dual Evaporator Drain Extension
6	2215676 Whirlpool Refrigerator Terminal Cover
7	SLEEVE
8	W11225840 Whirlpool Refrigerator Evaporator Tray
9	W10829281 Whirlpool Refrigerator Screw
10	HEATER
11	WPW10154805 Whirlpool Refrigerator Inverter Box
12	W10683556 Whirlpool Refrigerator Clip
13	WP67005149 Whirlpool Roller
14	Screw
15	WPW10169124 Whirlpool Refrigerator Grommet
16	W11673437 Whirlpool Condenser Assembly
17	W10391376 Whirlpool Bracket Assembly
18	TRAY, DRIP
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10608485 Whirlpool Refrigerator Evaporator
21	W11429989 Whirlpool Refrigerator Solenoid
22	W11127829 Whirlpool Refrigerator Condenser Motor
23	W11673433 Whirlpool Clip
24	W11189618 Whirlpool Refrigerator Wire Harness
25	WPW10143759 Whirlpool Dryer Filter
26	8201675 Whirlpool Refrigerator Compressor
27	W11544659 Whirlpool Refrigerator Screw
28	67006434 Whirlpool Axle Pin
29	WPW10406719 Whirlpool Refrigerator Shroud
30	CORD-POWER
31	W10278140 Whirlpool Refrigerator Unit Cover
32	W10815861 Whirlpool Refrigerator Clip
33	W10491355 Whirlpool Refrigerator Air Gasket
34	WPW10626970 Whirlpool Refrigerator Tube
35	W10236396 Whirlpool Refrigerator Strap
36	W10141518 Whirlpool Refrigerator Screw
37	W11553819 Whirlpool Refrigerator Insulation
