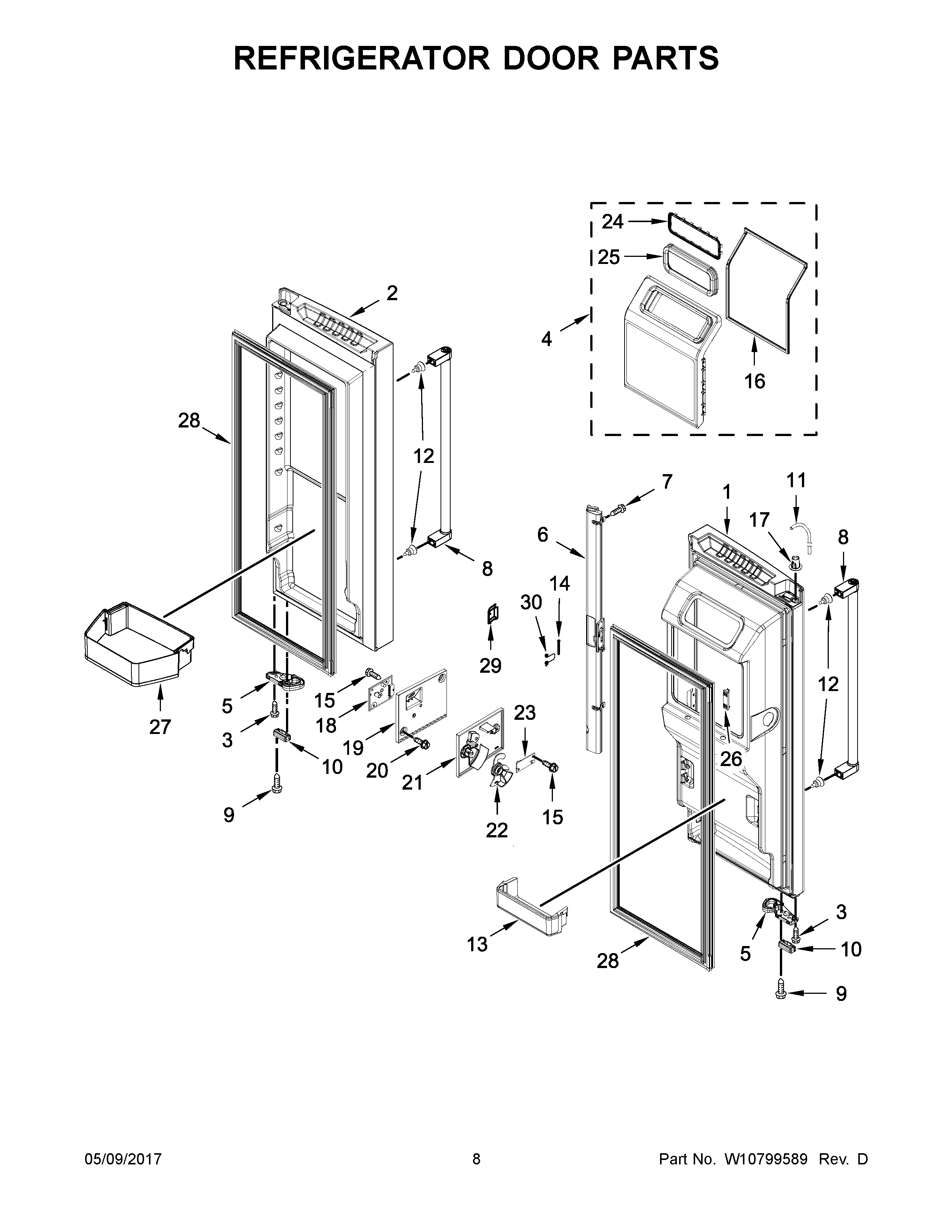

KRFF507ESS00 05 – REFRIGERATOR DOOR PARTS

KRFF507ESS00 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFF507ESS00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1BLW10561911 Whirlpool Refrigerator Door FIP
1ALW10561914 Whirlpool Refrigerator DOR Foam In Place Black
1W10821294 Whirlpool Refrigerator White Door Assembly
2ALW10341282 Whirlpool Refrigerator Black Foam In Place Doorack
2BLW10341284 Whirlpool Refrigerator Door FIP SS
2LW10624492 Whirlpool Refrigerator DOR-FIP WH
4WPW10549590 Whirlpool Refrigerator Ice Door
5AW11212164 Whirlpool Refrigerator Door Closer
5W10904595 Whirlpool Refrigerator Closer
6BW10806457 Whirlpool Refrigerator Mullion Rail
6AW10698196 Whirlpool Refrigerator Mullion Rail
6W10846151 Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8W11483532 Whirlpool Refrigerator Handle
9WP98165 Whirlpool Screw
10AW10407187 Whirlpool Refrigerator Door Bumper
10BUMPER, DOOR (WHITE)
10BW11573367 Whirlpool Refrigerator Door Bumper
11W10394073 Whirlpool Refrigerator Water Tube
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13W11106750 Whirlpool Refrigerator Trivet
14WP2198634 Whirlpool Door Pin
152006254 Whirlpool Refrigerator Screw
16W11624997 Whirlpool Refrigerator Gasket
17W10562834 Whirlpool Refrigerator Clip
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19COVER, RECEIVER
20WPW10272364 Whirlpool Refrigerator Screw
21W10258502 Whirlpool Refrigerator Cover
22W10258540 Whirlpool Refrigerator Slide
23W10870822 Whirlpool Refrigerator Electronic Control Board
24WPW10400825 Whirlpool Refrigerator Retainer
25WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26VENT, THERMISTOR
27W11098862 Whirlpool Refrigerator Cantilever Bin
28AW10861004 Whirlpool Refrigerator FIP Gasket
28BW10407212 Whirlpool Door Gasket
28W11678967 Whirlpool Refrigerator Gasket FIP
29FLIPPER
30WP2198635 Whirlpool Refrigerator Spring
