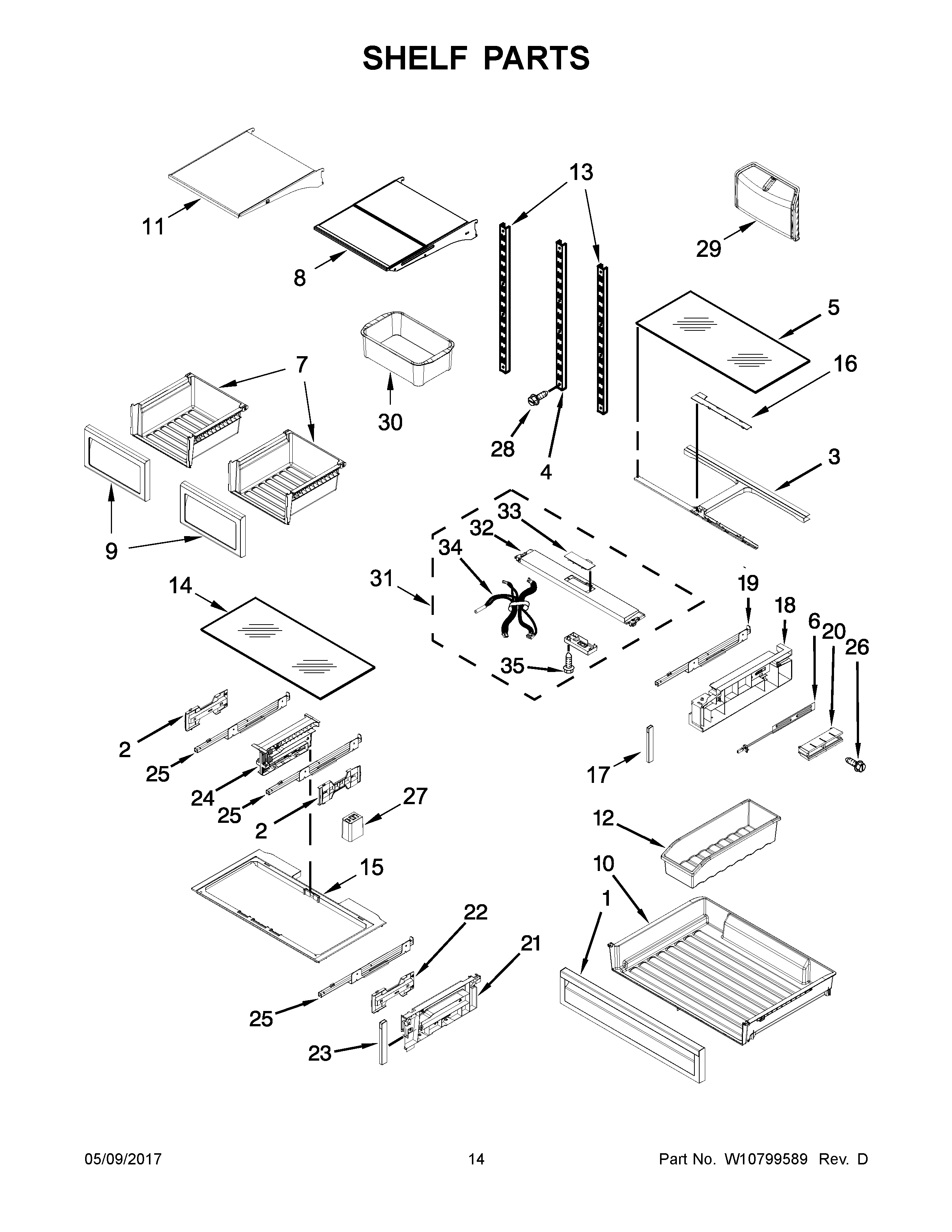

KRFF507EWH00 08 – SHELF PARTS

Products

Position	Product
1	W11034025 Whirlpool Refrigerator Front Pan
2	W10530317 Whirlpool Refrigerator Plate
3	WPW10489978 Whirlpool Refrigerator Support
4	W11690685 Whirlpool Ladder
5	WPW10628815 Whirlpool Refrigerator Glass Shelf
6	W10342618 Whirlpool Refrigerator Heater
7	W10919809 Whirlpool Refrigerator Crisper Pan
8	WPW10737427 Whirlpool Refrigerator Glass Shelf
9	FRONT-PAN
10	WPW10654844 Whirlpool Storage Drawer
11	WPW10756310 Whirlpool Refrigerator Glass Shelf
12	DIVIDER, PANTRY
13	LADDER
14	WPW10644519 Whirlpool Refrigerator Glass Shelf
15	W10717570 Whirlpool Refrigerator Frame
16	W10490266 Whirlpool Refrigerator Cover
17	W10467416 Whirlpool Refrigerator Trim
18A	WPW10498902 Whirlpool Refrigerator Plate
18	WPW10498906 Whirlpool Refrigerator Plate
19	W10499289 Whirlpool Refrigerator Slide
19A	SLIDE, PANTRY (RIGHT HAND)
20	W10432697 Whirlpool Refrigerator Insulation
21A	W11315180 Whirlpool Refrigerator Plate
21	W11315181 Whirlpool Refrigerator Plate
22	W10530316 Whirlpool Refrigerator Plate
23	W10467415 Whirlpool Refrigerator Trim
24	W10530307 Whirlpool Refrigerator Track
25	W11233912 Whirlpool Refrigerator Slide
26	WP67006908 Whirlpool Refrigerator Screw
27	W10530315 Whirlpool Refrigerator Support
28	W10423560 Whirlpool Refrigerator Screw
29	W10826105 Whirlpool Refrigerator Pro Service
30	WPW10248856 Whirlpool Refrigerator Cantilever Bin
31	W11048823 Whirlpool Refrigerator Cover
32	COVER, TOP
33	W10807593-includeCORE Whirlpool W10807593 Refrigerator Electronic Control Board + Core
34	W10668847 Whirlpool Refrigerator Wire Harness
35	W11311945 Whirlpool Refrigerator Screw
