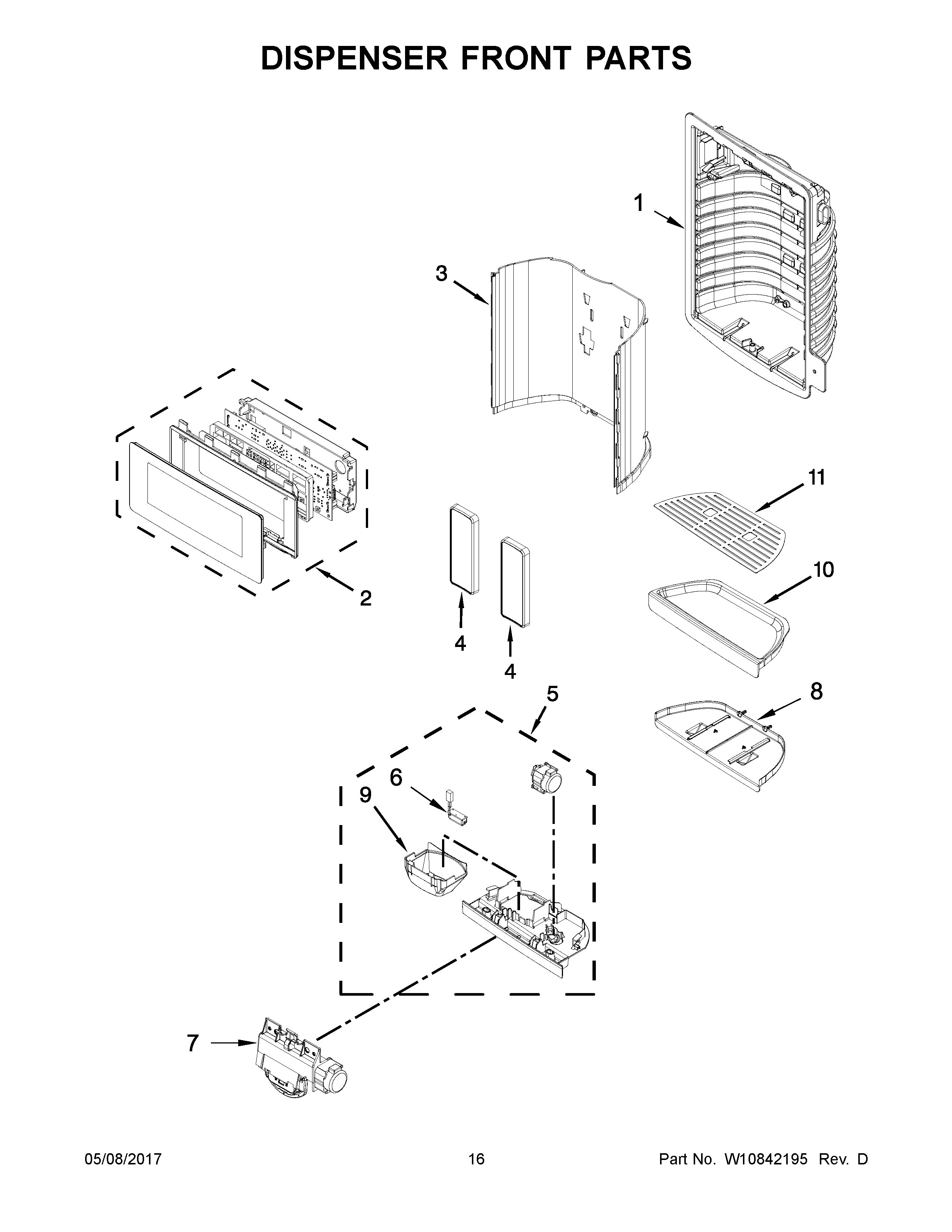

KRFF507EWH01 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2AW11089931 Whirlpool Refrigerator UI Panel + Core
3BWPW10486346 Whirlpool Refrigerator Shield
3AW10486344 Whirlpool Refrigerator Shield
3W10486345 Whirlpool Refrigerator Shield
4BWPW10346924 Whirlpool Refrigerator Pad
4AW11561037 Whirlpool Refrigerator Pad
4W10317250 Whirlpool Refrigerator Pad
5W10836794 Whirlpool Refrigerator Separator
6W11290115 Whirlpool Refrigerator Light
7WPW10606117 Whirlpool Refrigerator Ice Door
8BW10402269 Whirlpool Refrigerator Insert
8AW10400889 Whirlpool Insert
8INSERT, DRIP TRAY (WHITE)
9WPW10435760 Whirlpool Refrigerator Ice Guide
10W10347140 Whirlpool Refrigerator Drip Tray
10AW10400884 Whirlpool Refrigerator Drip Tray
10BWPW10400887 Whirlpool Drip Tray
11WPW10542708 Whirlpool Refrigerator Grille
