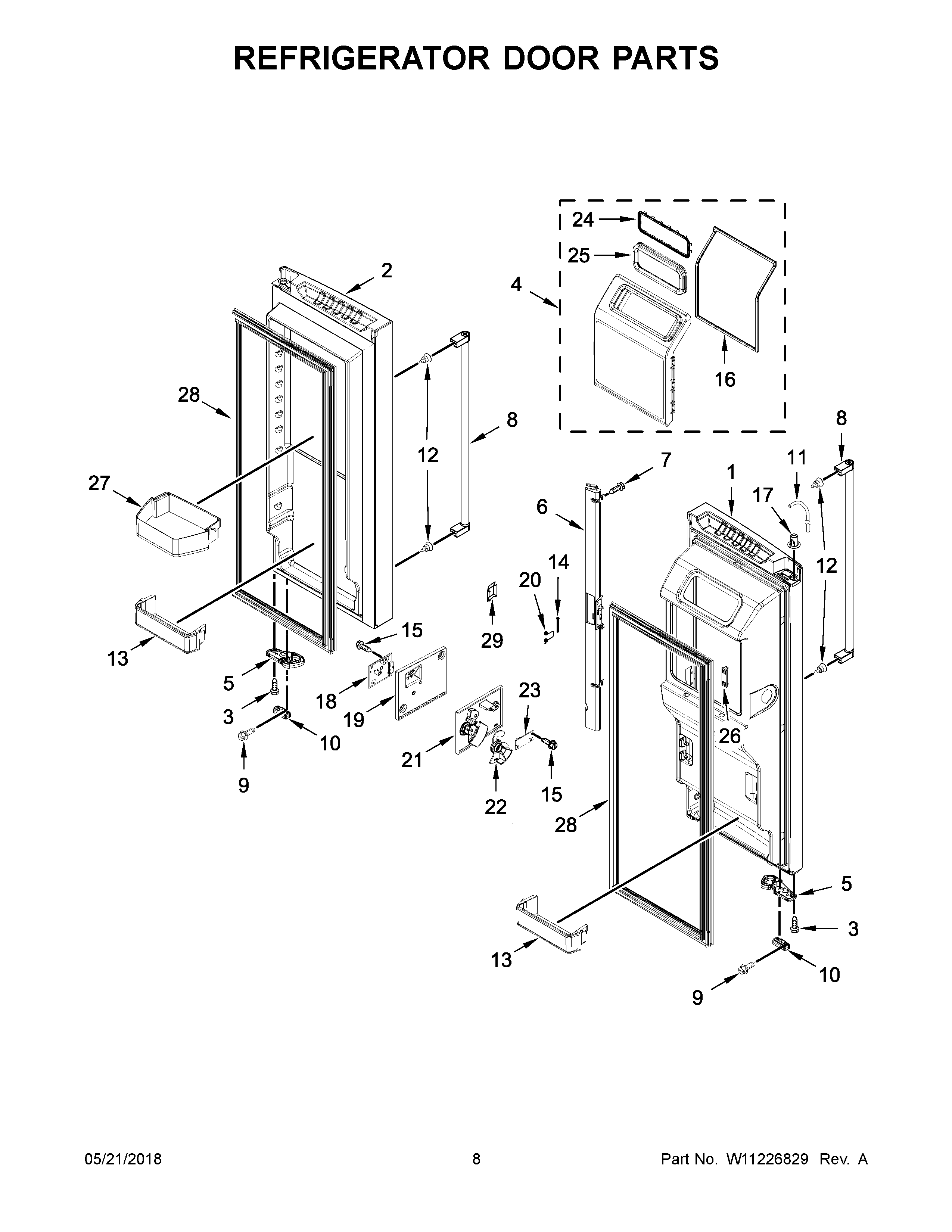

KRFF507HBL00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	LW10561914 Whirlpool Refrigerator DOR Foam In Place Black
1	W10821294 Whirlpool Refrigerator White Door Assembly
2	LW10624492 Whirlpool Refrigerator DOR-FIP WH
2A	LW10341282 Whirlpool Refrigerator Black Foam In Place Doorack
4	W11268536 Whirlpool Refrigerator Ice Door
5A	W11212164 Whirlpool Refrigerator Door Closer
5	W10904595 Whirlpool Refrigerator Closer
6A	W10698196 Whirlpool Refrigerator Mullion Rail
6	W10846151 Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	W11483532 Whirlpool Refrigerator Handle
9	WP98165 Whirlpool Screw
10A	W10407187 Whirlpool Refrigerator Door Bumper
10	BUMPER, DOOR (WHITE)
11	W10394073 Whirlpool Refrigerator Water Tube
12	WPW10661886 Whirlpool Refrigerator Door Handle Screw
13	W11106750 Whirlpool Refrigerator Trivet
14	WP2198634 Whirlpool Door Pin
15	2006254 Whirlpool Refrigerator Screw
16	W11624997 Whirlpool Refrigerator Gasket
17	W10562834 Whirlpool Refrigerator Clip
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	COVER, RECEIVER
20	WP2198635 Whirlpool Refrigerator Spring
21	W10258502 Whirlpool Refrigerator Cover
22	W10258540 Whirlpool Refrigerator Slide
23	W10870822 Whirlpool Refrigerator Electronic Control Board
24	WPW10400825 Whirlpool Refrigerator Retainer
25	WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26	VENT, THERMISTOR
27	W11098862 Whirlpool Refrigerator Cantilever Bin
28	W11678967 Whirlpool Refrigerator Gasket FIP
28A	W10861004 Whirlpool Refrigerator FIP Gasket
29	FLIPPER
