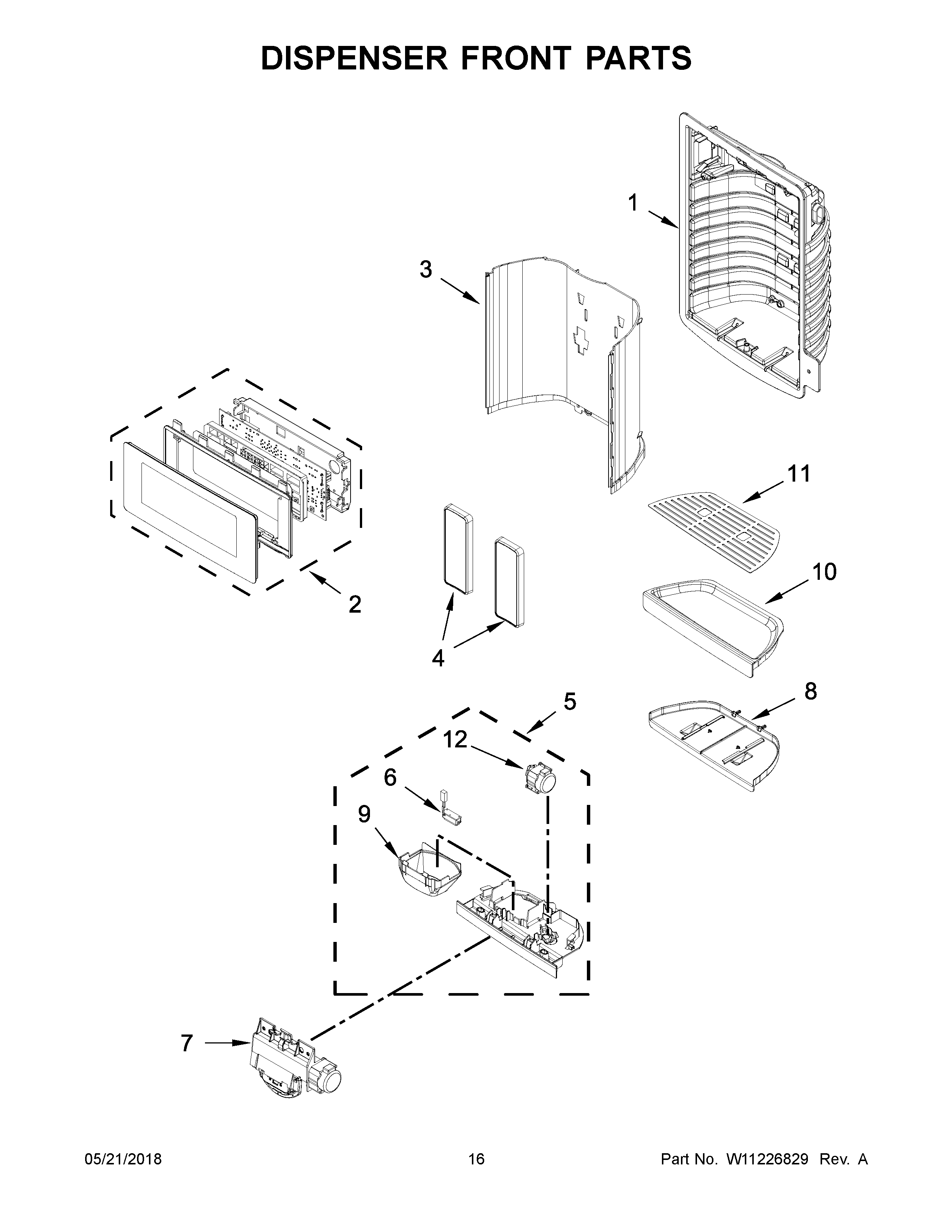

KRFF507HBL00 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11405309 Whirlpool Refrigerator User Interface Panel
3AW10486344 Whirlpool Refrigerator Shield
3W10486345 Whirlpool Refrigerator Shield
4AW11561037 Whirlpool Refrigerator Pad
4W10317250 Whirlpool Refrigerator Pad
5W10836794 Whirlpool Refrigerator Separator
6W11290115 Whirlpool Refrigerator Light
7WPW10606117 Whirlpool Refrigerator Ice Door
8INSERT, DRIP TRAY (WHITE)
8AW10400889 Whirlpool Insert
9WPW10435760 Whirlpool Refrigerator Ice Guide
10W10347140 Whirlpool Refrigerator Drip Tray
10AW10400884 Whirlpool Refrigerator Drip Tray
11WPW10542708 Whirlpool Refrigerator Grille
12WPW10205979 Whirlpool Refrigerator Ice Door Motor
