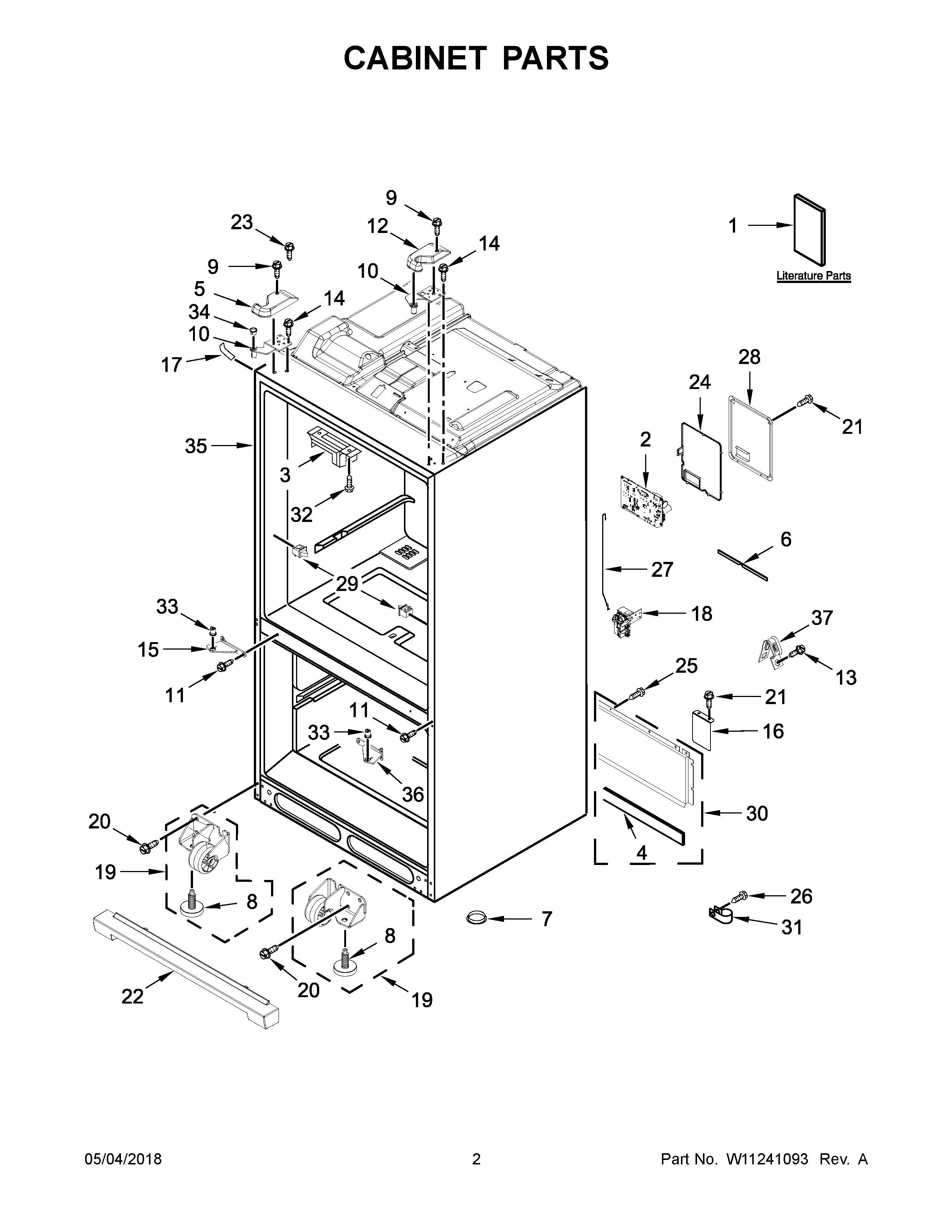

KRFF507HBS00 02 – CABINET PARTS

KRFF507HBS00 02 – CABINET PARTS

Written by

in

KRFF507HBS00 02 – CABINET PARTS

Products

PositionProduct
1CTECH SHEET, ENERGY GUIDE
1AFRENCH
1ENGLISH
1BUSE AND CARE GUIDE
2W11224256-includeCORE Whirlpool W11224256 Washer Electronic Control Board + Core
3WPW10344432 Whirlpool Pivot Block
4W10505487 Whirlpool Refrigerator Gasket
5W10471617 Whirlpool Refrigerator Cover
6W10415341 Whirlpool Refrigerator Gasket
7A3076901 Whirlpool Refrigerator Plug
8WPW10141622 Whirlpool Leveler
9WP8281196 Whirlpool Screw
10AW11592404 Whirlpool Refrigerator Door Hinge
10W11592405 Whirlpool Door Hinge
11W10673842 Whirlpool Refrigerator Screw
12COVER, TOP HINGE RIGHT HAND (BLACK)
14W11126052 Whirlpool Screw Assembly
15W10407279 Whirlpool Refrigerator Door Hinge
16W10336736 Whirlpool Refrigerator Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18W10865826 Whirlpool Refrigerator Water Inlet Valve
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21W11686675 Whirlpool Screw
22WPW10637669 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24W10768379 Whirlpool Refrigerator Cover
25SCREW
2667006425 Whirlpool Refrigerator Screw
27W11209890 Whirlpool Refrigerator Water Tube
28W10754144 Whirlpool Refrigerator Cover
29W11123941 Whirlpool Refrigerator Switch
30W11482027 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32W10854958 Whirlpool Refrigerator Screw
33COUPLER, DOOR
34W10212137 Whirlpool Refrigerator Grommet
35CABINET (NOT A SERVICEABLE PART)
36W10407275 Whirlpool Refrigerator Door Hinge
37549193 Whirlpool Refrigerator Power Clamp
