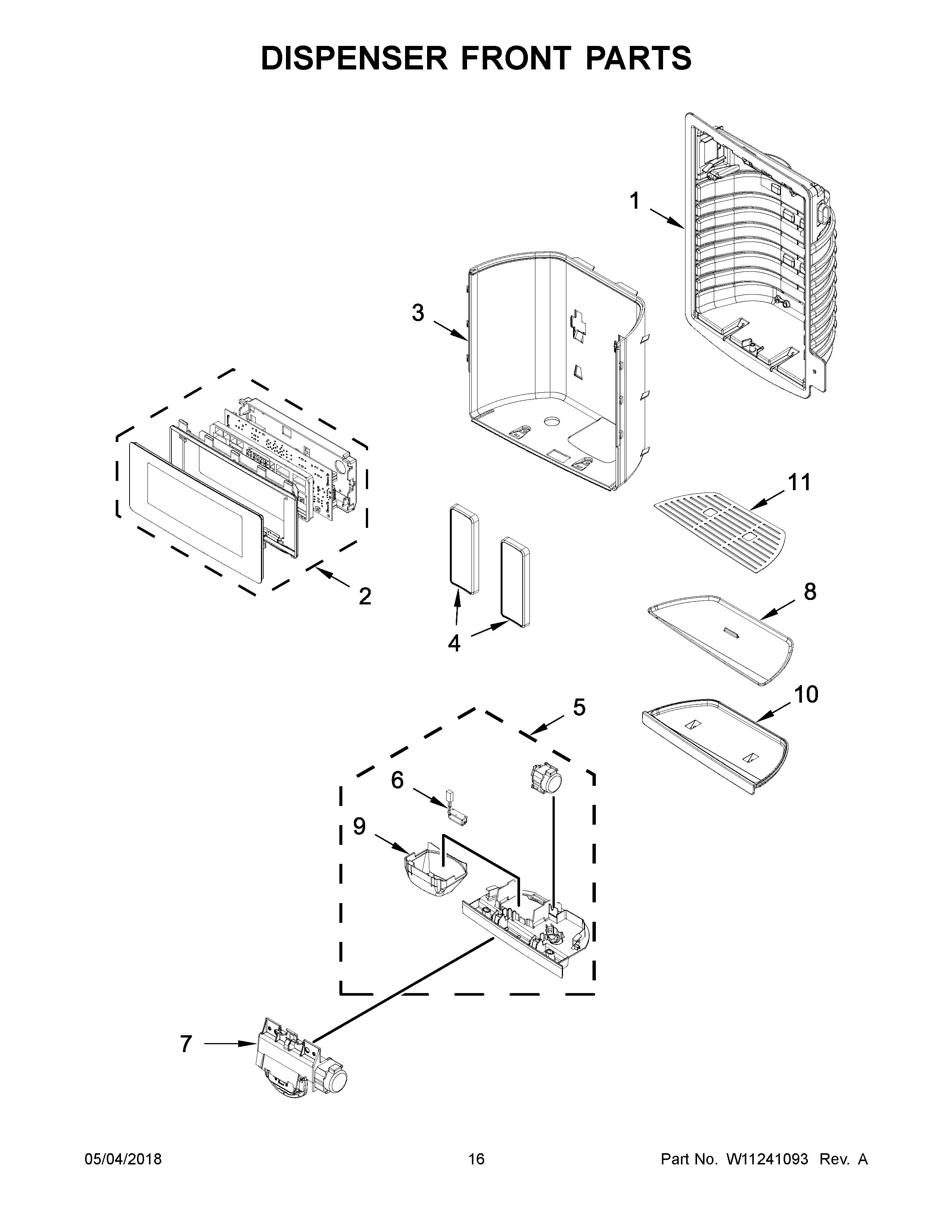

KRFF507HBS00 09 – DISPENSER FRONT PARTS

KRFF507HBS00 09 – DISPENSER FRONT PARTS

Written by

in

KRFF507HBS00 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11405309 Whirlpool Refrigerator User Interface Panel
3W10486344 Whirlpool Refrigerator Shield
4W11561037 Whirlpool Refrigerator Pad
5W10836794 Whirlpool Refrigerator Separator
6W11290115 Whirlpool Refrigerator Light
7WPW10606117 Whirlpool Refrigerator Ice Door
8W10400889 Whirlpool Insert
9WPW10435760 Whirlpool Refrigerator Ice Guide
10W10400884 Whirlpool Refrigerator Drip Tray
11WPW10542708 Whirlpool Refrigerator Grille
