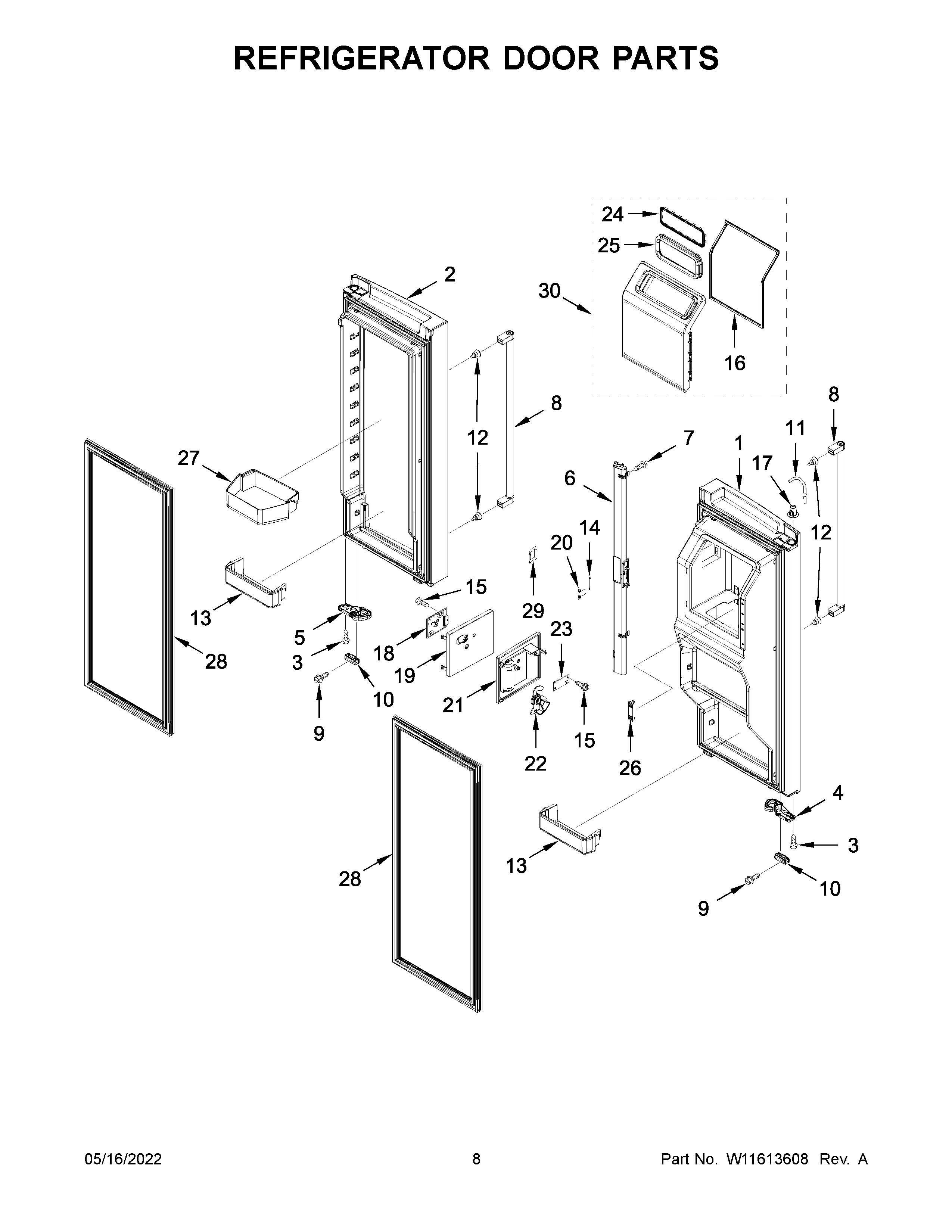

KRFF507HBS04 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1AW11518741 Whirlpool Refrigerator Service Door Kit
1W11518739 Whirlpool Refrigerator Door Assembly
2W11104459 Whirlpool Refrigerator Service Door Kit
2AW11436604 Whirlpool Refrigerator Door Assembly
4W10904595 Whirlpool Refrigerator Closer
5W11212164 Whirlpool Refrigerator Door Closer
6AW10806457 Whirlpool Refrigerator Mullion Rail
6W10698196 Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8W11483532 Whirlpool Refrigerator Handle
9WP98165 Whirlpool Screw
10AW11573367 Whirlpool Refrigerator Door Bumper
10W10407187 Whirlpool Refrigerator Door Bumper
11W10394073 Whirlpool Refrigerator Water Tube
12W11449276 Whirlpool Handle Support
13W11106750 Whirlpool Refrigerator Trivet
14WP2198634 Whirlpool Door Pin
152006254 Whirlpool Refrigerator Screw
16W11624997 Whirlpool Refrigerator Gasket
17W11315302 Whirlpool Refrigerator Clip
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19COVER, RECEIVER
20WP2198635 Whirlpool Refrigerator Spring
21W10258502 Whirlpool Refrigerator Cover
22W10258540 Whirlpool Refrigerator Slide
23W10870822 Whirlpool Refrigerator Electronic Control Board
24WPW10400825 Whirlpool Refrigerator Retainer
25WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26VENT, THERMISTOR
27W11098862 Whirlpool Refrigerator Cantilever Bin
28AW10407212 Whirlpool Door Gasket
28W10861004 Whirlpool Refrigerator FIP Gasket
29FLIPPER
30W11268536 Whirlpool Refrigerator Ice Door
