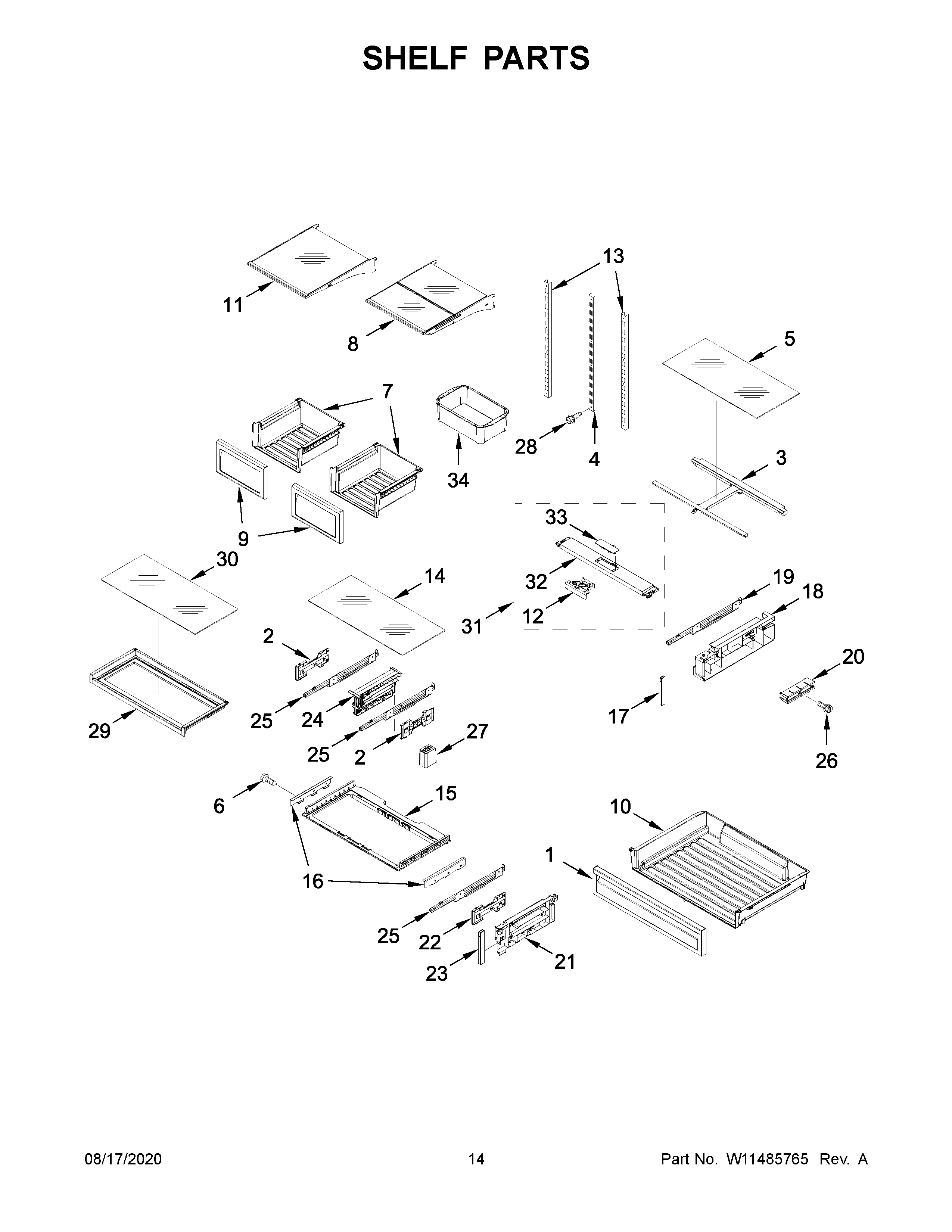

KRFF507HPS02 08 – SHELF PARTS

KRFF507HPS02 08 – SHELF PARTS

Written by

in

KRFF507HPS02 08 – SHELF PARTS

Products

Position	Product
1	W11034025 Whirlpool Refrigerator Front Pan
2	W10530317 Whirlpool Refrigerator Plate
3	W11224265 Whirlpool Refrigerator Support
4	W11690685 Whirlpool Ladder
5	W11092486 Whirlpool Refrigerator Glass Shelf
6	W10847999 Whirlpool Refrigerator Screw
7	W10919809 Whirlpool Refrigerator Crisper Pan
8	WPW10737427 Whirlpool Refrigerator Glass Shelf
9	FRONT-PAN
10	WPW10654844 Whirlpool Storage Drawer
11	WPW10756310 Whirlpool Refrigerator Glass Shelf
12	W10512596 Whirlpool Refrigerator Knob
13	LADDER
14	W11228031 Whirlpool Refrigerator Glass Shelf
15	W11133643 Whirlpool Refrigerator Frame
16A	W11133648 Whirlpool Refrigerator Rail
16	W11133647 Whirlpool Refrigerator Rail
17	W10467416 Whirlpool Refrigerator Trim
18	WPW10498906 Whirlpool Refrigerator Plate
18A	W11225684 Whirlpool Refrigerator Plate
19A	SLIDE, PANTRY (RIGHT HAND)
19	W10499289 Whirlpool Refrigerator Slide
20	W10432697 Whirlpool Refrigerator Insulation
21	W11315181 Whirlpool Refrigerator Plate
21A	W11315180 Whirlpool Refrigerator Plate
22	W10530316 Whirlpool Refrigerator Plate
23	W10467415 Whirlpool Refrigerator Trim
24	W10530307 Whirlpool Refrigerator Track
25	W11233912 Whirlpool Refrigerator Slide
26	WP67006908 Whirlpool Refrigerator Screw
27	W10530315 Whirlpool Refrigerator Support
28	W10423560 Whirlpool Refrigerator Screw
29	W11549360 Whirlpool Refrigerator Frame
30	W11228263 Whirlpool Refrigerator Glass Shelf
31	W11228264 Whirlpool Refrigerator Cover
32	WPW10554285 Whirlpool Refrigerator Cover
33	W11228266 Whirlpool Refrigerator Housing
34	WPW10248856 Whirlpool Refrigerator Cantilever Bin
