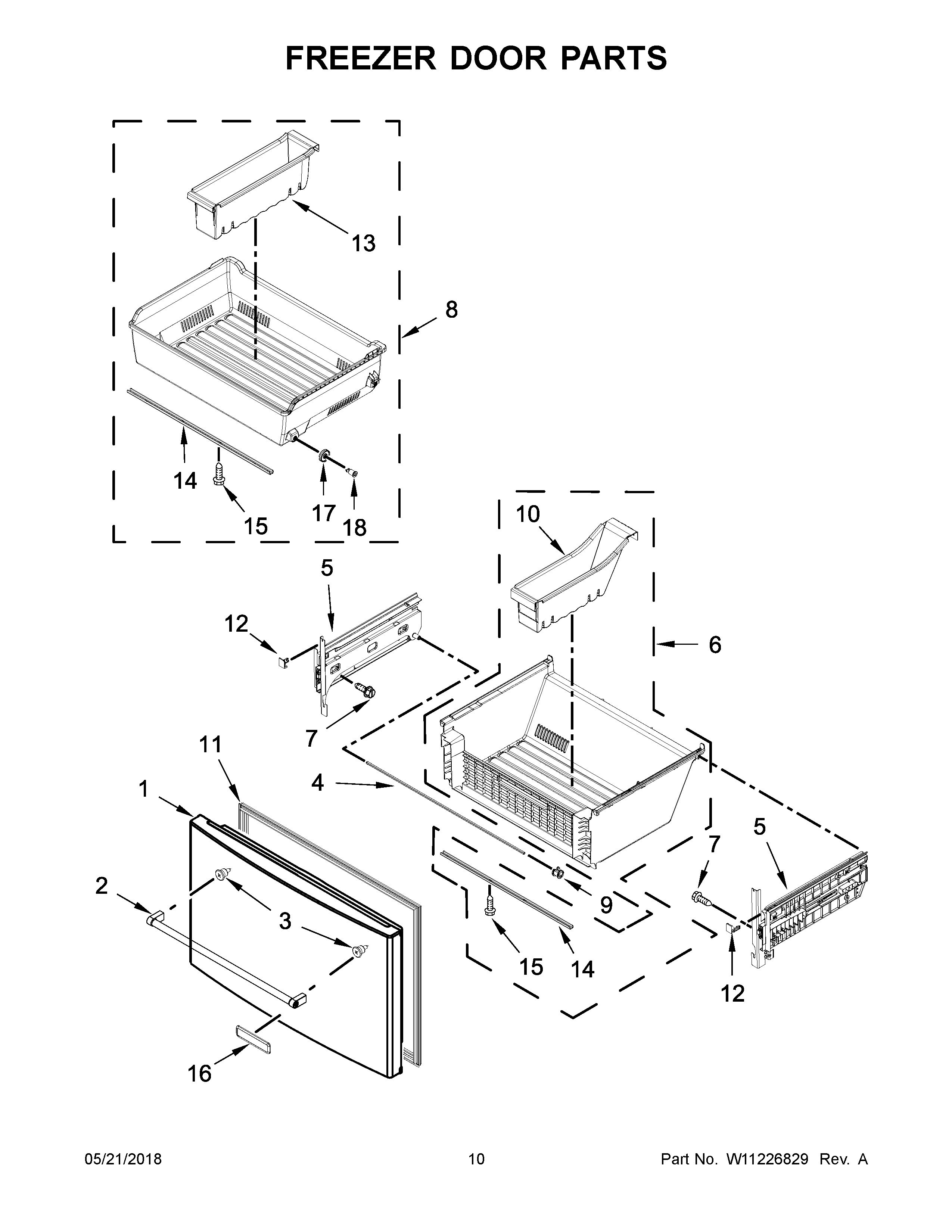

KRFF507HWH00 06 – FREEZER DOOR PARTS

KRFF507HWH00 06 – FREEZER DOOR PARTS

Written by

in

KRFF507HWH00 06 – FREEZER DOOR PARTS

Products

PositionProduct
1ALW10708431 Whirlpool Refrigerator Foam In Place Door Black (Drop Ship)
1LW10708430 Whirlpool Refrigerator Door FIP White
2W11499276 Whirlpool Refrigerator Handle
3WPW10661886 Whirlpool Refrigerator Door Handle Screw
4WPW10503522 Whirlpool Refrigerator Shaft
5AW11668671 Whirlpool Refrigerator Left-Hand & Right-Hand Adapter Assembly
6W10594047 Whirlpool Refrigerator Freezer Bin
7WP67006908 Whirlpool Refrigerator Screw
8W10704090 Whirlpool Refrigerator Freezer Bin
9W10852685 Whirlpool Clip Assembly
10W10507444 Whirlpool Refrigerator Divider
11AW10407215 Whirlpool Door Gasket
11W10638486 Whirlpool Refrigerator Door Gasket
12WPW10485096 Whirlpool Refrigerator Pan Stop
12AWPW10485089 Whirlpool Refrigerator Pan Stop
13WPW10485654 Whirlpool Refrigerator Divider
14W11677723 Whirlpool Support
15WP489443 Whirlpool Refrigerator Screw
16W10876598 Whirlpool Refrigerator Nameplate
17W11578839 Whirlpool Roller
18W11573594 Whirlpool Refrigerator Axle
