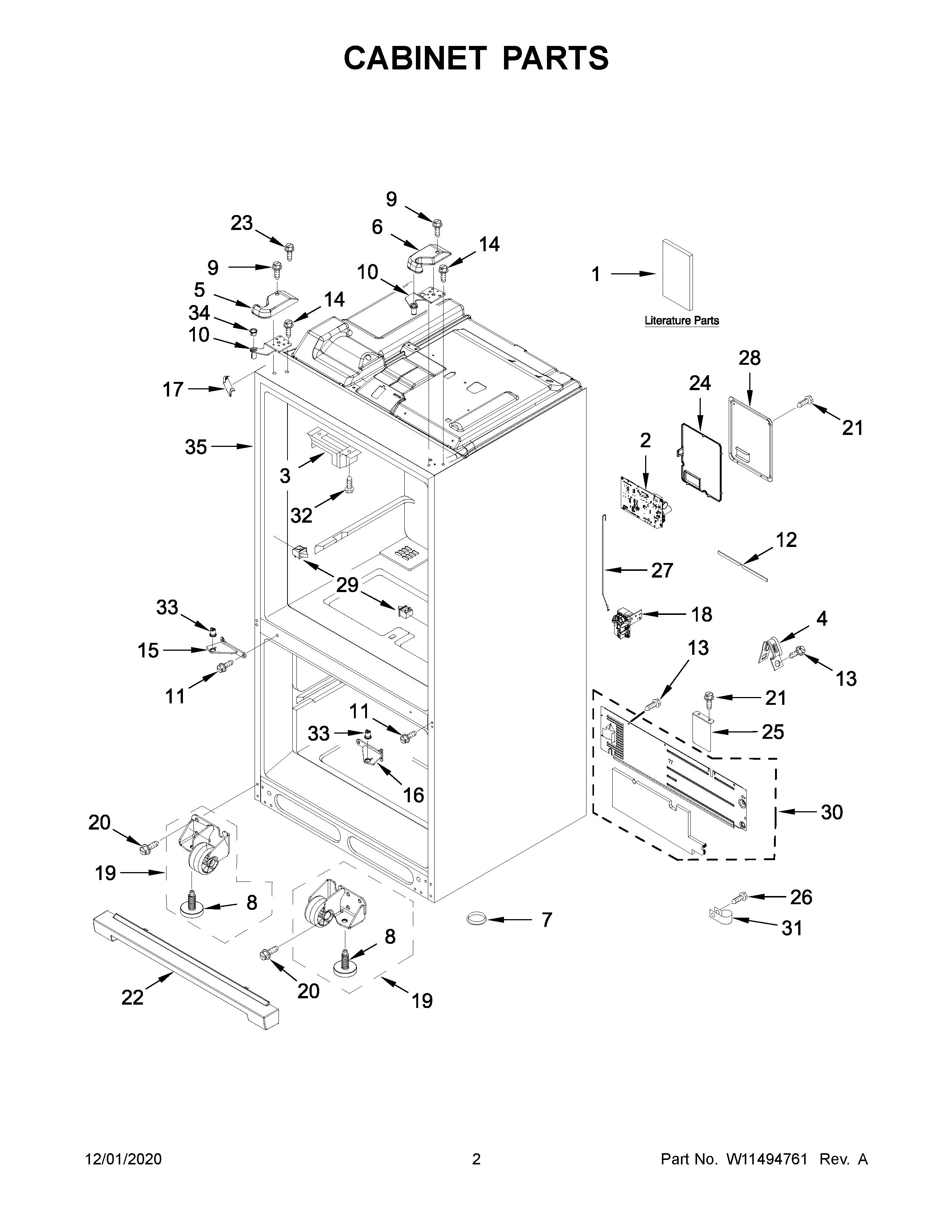

KRFF507HWH02 02 – CABINET PARTS

Products

Position	Product
1	TECH SHEET (ENGLISH)
1D	TECH SHEET, ENERGY GUIDE
1C	TECH SHEET, USE AND CARE GUIDE
1A	TECH SHEET (FRENCH)
1B	TECH SHEET, WIRING DIAGRAM
2	W11224256-includeCORE Whirlpool W11224256 Washer Electronic Control Board + Core
3	WPW10344432 Whirlpool Pivot Block
4	549193 Whirlpool Refrigerator Power Clamp
5	W10471615 Whirlpool Refrigerator Cover
6	W10248562 Whirlpool Refrigerator Cover
7	A3076901 Whirlpool Refrigerator Plug
8	WPW10141622 Whirlpool Leveler
9	WP8281196 Whirlpool Screw
10	W11592405 Whirlpool Door Hinge
10A	W11592404 Whirlpool Refrigerator Door Hinge
11	W10673841 Whirlpool Refrigerator Screw
12	W10415341 Whirlpool Refrigerator Gasket
13	SCREW
14	W11126052 Whirlpool Screw Assembly
15	W10248434 Whirlpool Refrigerator Door Hinge
16	W10248433 Whirlpool Refrigerator Door Hinge
17	12587703W Whirlpool Refrigerator Cover
18	VALVE
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	W11686675 Whirlpool Screw
22	WPW10637668 Whirlpool Refrigerator Front Grille
23	W11214483 Whirlpool Refrigerator Screw
24	W10768379 Whirlpool Refrigerator Cover
25	W10336736 Whirlpool Refrigerator Cover
26	67006425 Whirlpool Refrigerator Screw
27	W11482381 Whirlpool Refrigerator Water Tube
28	W10754144 Whirlpool Refrigerator Cover
29	W11123941 Whirlpool Refrigerator Switch
30	W11482027 Whirlpool Refrigerator Back Cover
31	W11456069 Whirlpool Refrigerator Clamp
32	W10854958 Whirlpool Refrigerator Screw
33	COUPLER, DOOR
34	W10212137 Whirlpool Refrigerator Grommet
35	CABINET (NOT A SERVICEABLE PART)
