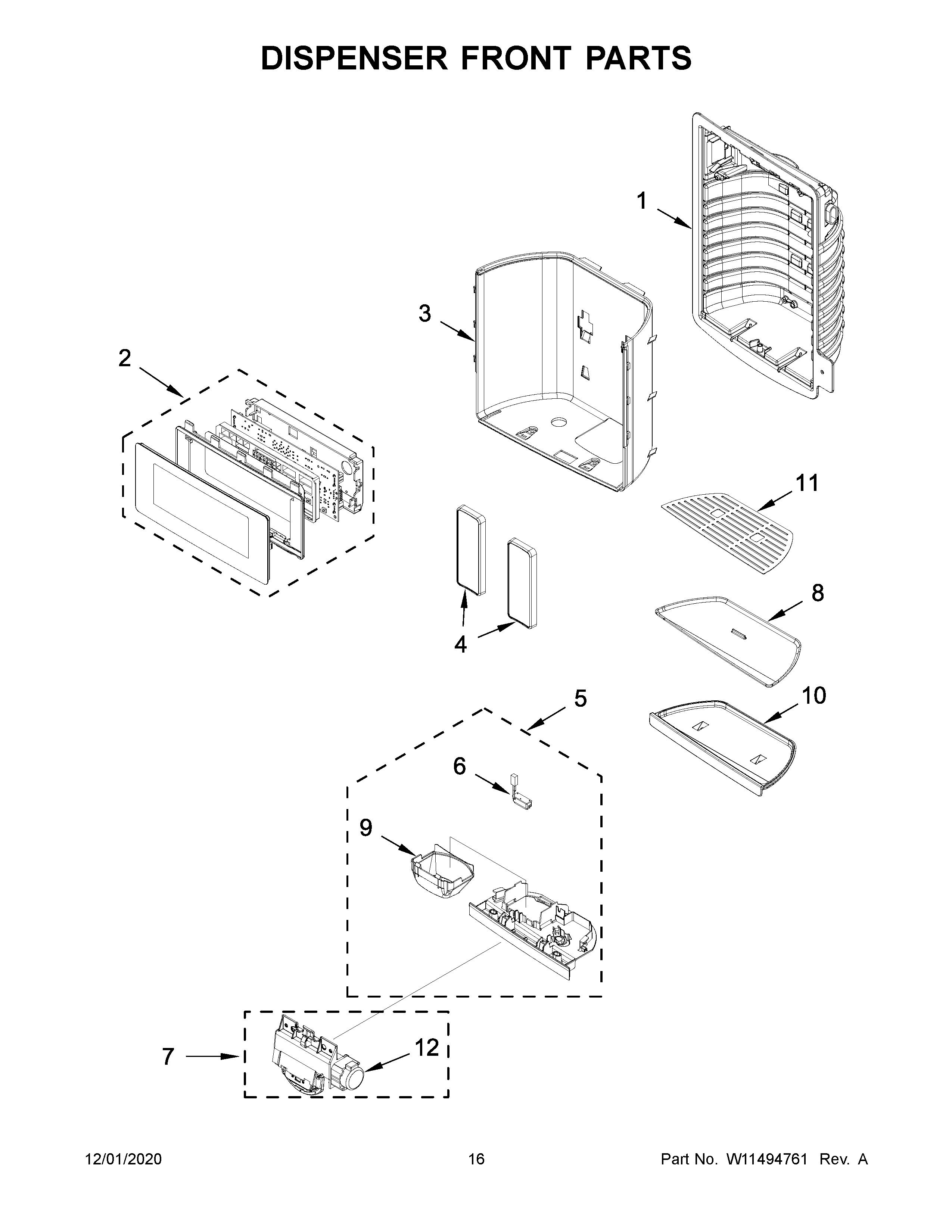

KRFF507HWH02 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W11405309 Whirlpool Refrigerator User Interface Panel
3	W10486345 Whirlpool Refrigerator Shield
4	W10317250 Whirlpool Refrigerator Pad
5	W10836794 Whirlpool Refrigerator Separator
6	W11290115 Whirlpool Refrigerator Light
7	WPW10606117 Whirlpool Refrigerator Ice Door
8	INSERT, DRIP TRAY (WHITE)
9	WPW10435760 Whirlpool Refrigerator Ice Guide
10	W10347140 Whirlpool Refrigerator Drip Tray
11	WPW10542708 Whirlpool Refrigerator Grille
12	WPW10205979 Whirlpool Refrigerator Ice Door Motor
