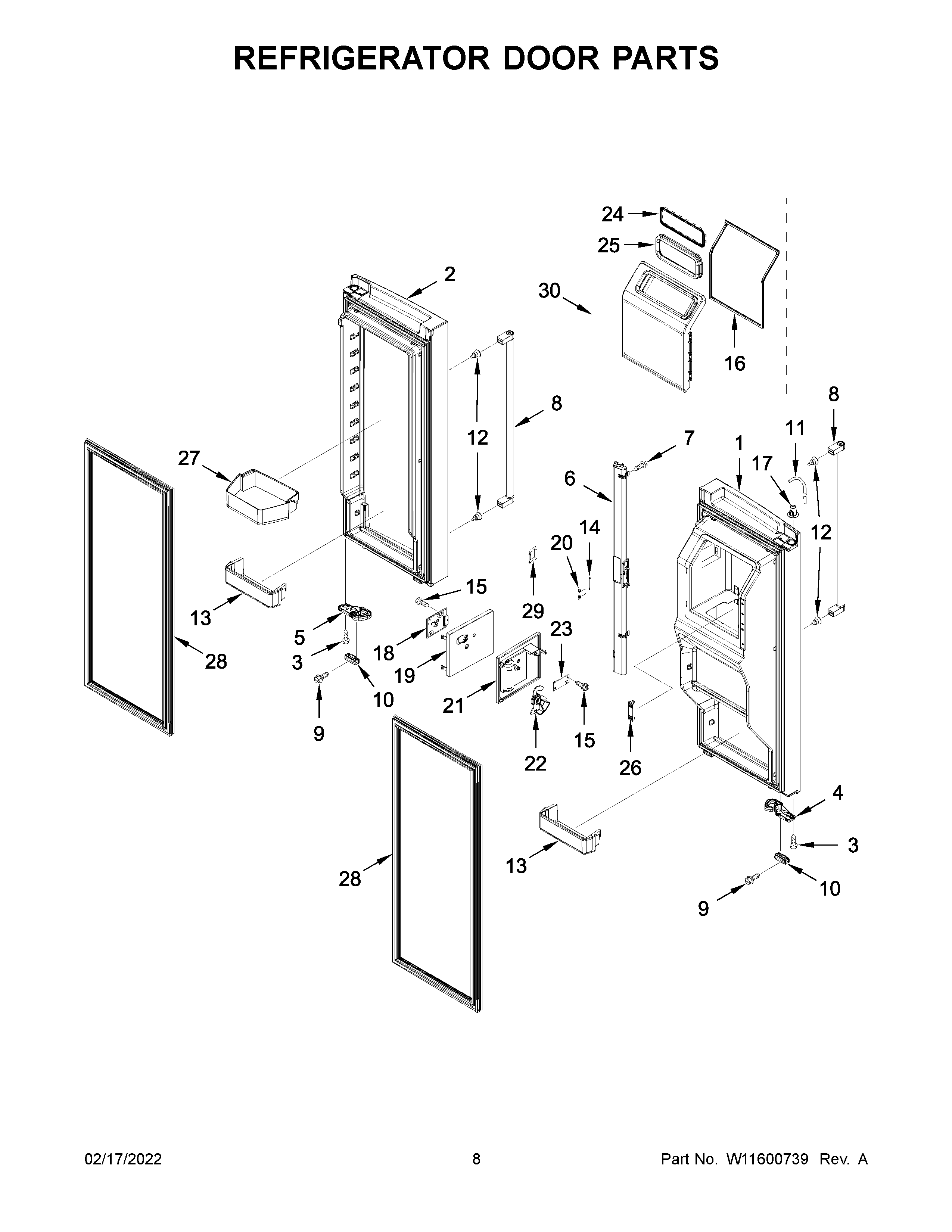

KRFF507HWH03 05 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:30:30+00:00KRFF507HWH03 05 – REFRIGERATOR DOOR PARTS ProductsPositionProduct1W11518742 Whirlpool Refrigerator Door Assembly2LW10624492 Whirlpool Refrigerator DOR-FIP WH4W10904595 Whirlpool Refrigerator Closer5W11212164 Whirlpool Refrigerator Door Closer6W10846151 Whirlpool Refrigerator Mullion Rail7W11311945 Whirlpool Refrigerator Screw8W11483532 Whirlpool Refrigerator Handle9WP98165 Whirlpool Screw10BUMPER, DOOR (WHITE)11W10394073 Whirlpool Refrigerator Water Tube12W11449276 Whirlpool Handle Support13W11106750 Whirlpool Refrigerator Trivet14WP2198634 Whirlpool Door Pin152006254 Whirlpool Refrigerator Screw16W11624997 Whirlpool Refrigerator Gasket17W11315302 Whirlpool Refrigerator Clip18W10898445 Whirlpool Refrigerator Electronic Control Board + Core19COVER, RECEIVER20WP2198635 Whirlpool Refrigerator Spring21W10258502 Whirlpool Refrigerator Cover22W10258540 Whirlpool Refrigerator Slide23W10870822 Whirlpool Refrigerator Electronic Control Board24WPW10400825 Whirlpool Refrigerator Retainer25WPW10347087 Whirlpool Refrigerator Ice Chute Gasket26VENT, THERMISTOR27W11098862 Whirlpool Refrigerator Cantilever Bin28W11678967 Whirlpool Refrigerator Gasket FIP29FLIPPER30W11268536 Whirlpool Refrigerator Ice Door
