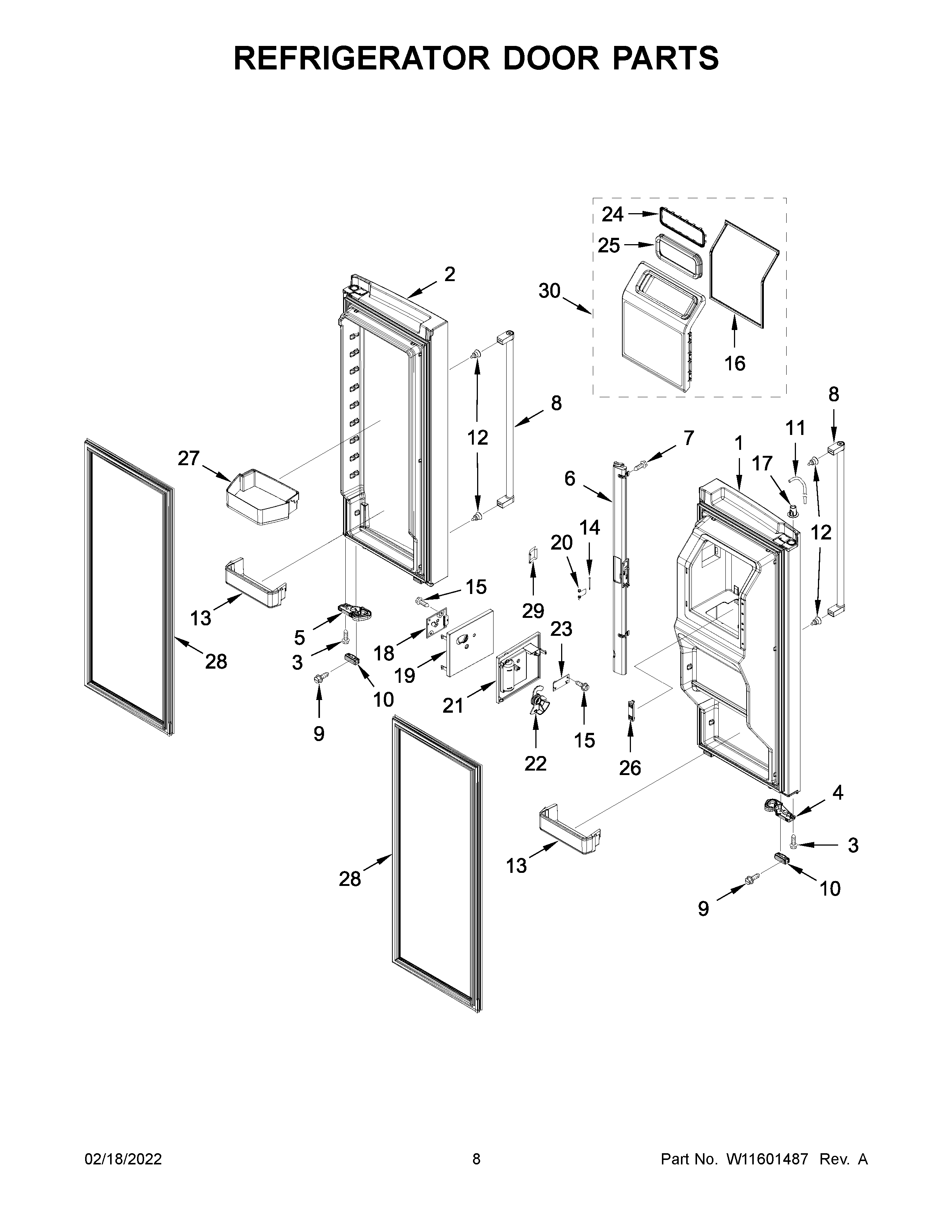

KRFF577KBS01 05 – REFRIGERATOR DOOR PARTS

KRFF577KBS01 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFF577KBS01 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1AW11681454 Whirlpool Door Assembly
1W11681451 Whirlpool Door Fip
2AW11681453 Whirlpool Door Fip
2W11681450 Whirlpool Door FIP
4W10904595 Whirlpool Refrigerator Closer
5W11212164 Whirlpool Refrigerator Door Closer
6AW10849525 Whirlpool Refrigerator Mullion Rail
6W10907531 Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8W11483532 Whirlpool Refrigerator Handle
9WP98165 Whirlpool Screw
10W10407187 Whirlpool Refrigerator Door Bumper
10AW11573367 Whirlpool Refrigerator Door Bumper
11W10394073 Whirlpool Refrigerator Water Tube
12W11449276 Whirlpool Handle Support
13W11680598 Whirlpool Trivet
14W10331749 Whirlpool Refrigerator Door PIN
152006254 Whirlpool Refrigerator Screw
16W11625019 Whirlpool Refrigerator Gasket
17W11315302 Whirlpool Refrigerator Clip
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19W10563326 Whirlpool Refrigerator Cover
20WP2198635 Whirlpool Refrigerator Spring
21W10563309 Whirlpool Refrigerator Cover
22W10563328 Whirlpool Refrigerator Slide
23W10870822 Whirlpool Refrigerator Electronic Control Board
24W11504381 Whirlpool Refrigerator Retainer
25W10567563 Whirlpool Refrigerator Gasket
26W11684620 Whirlpool Vent
27W11680597 Whirlpool Bin Containment Cover
28AW10407212 Whirlpool Door Gasket
28W10861004 Whirlpool Refrigerator FIP Gasket
29W10563323 Whirlpool Refrigerator Flipper
30W11679939 Whirlpool Ice Door
