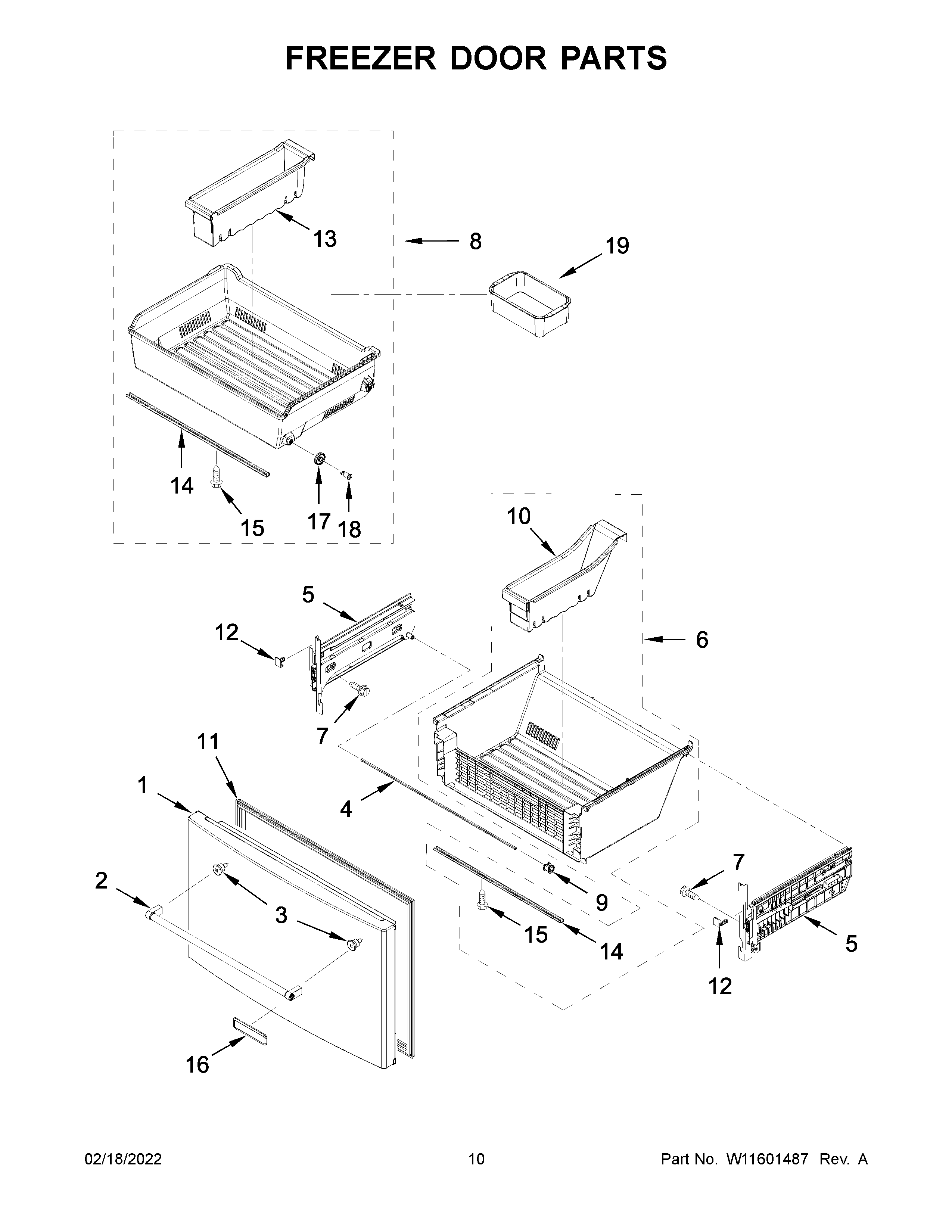

KRFF577KBS01 06 – FREEZER DOOR PARTS

KRFF577KBS01 06 – FREEZER DOOR PARTS

Written by

in

KRFF577KBS01 06 – FREEZER DOOR PARTS

Products

PositionProduct
1AW11681455 Whirlpool Door Flap
1W11681452 Whirlpool FIP Door Assembly
2W11499276 Whirlpool Refrigerator Handle
3W11449276 Whirlpool Handle Support
4WPW10503522 Whirlpool Refrigerator Shaft
5AW11668672 Whirlpool Bracket
6W10594052 Whirlpool Refrigerator Freezer Bin
7WP67006908 Whirlpool Refrigerator Screw
8W11379101 Whirlpool Freezer Bin
9W10852685 Whirlpool Clip Assembly
10W10562492 Whirlpool Divider
11W10407215 Whirlpool Door Gasket
11AGASKET-FIP GRAY
12AW10585150 Whirlpool Refrigerator Stop Pan
12W10585151 Whirlpool Refrigerator Stop Pan
13DIVIDER, UPPER
14W11677723 Whirlpool Support
15WP489443 Whirlpool Refrigerator Screw
16W10876598 Whirlpool Refrigerator Nameplate
17W11578839 Whirlpool Roller
18W11573594 Whirlpool Refrigerator Axle
19W11026416 Whirlpool Refrigerator Cantilever Bin
