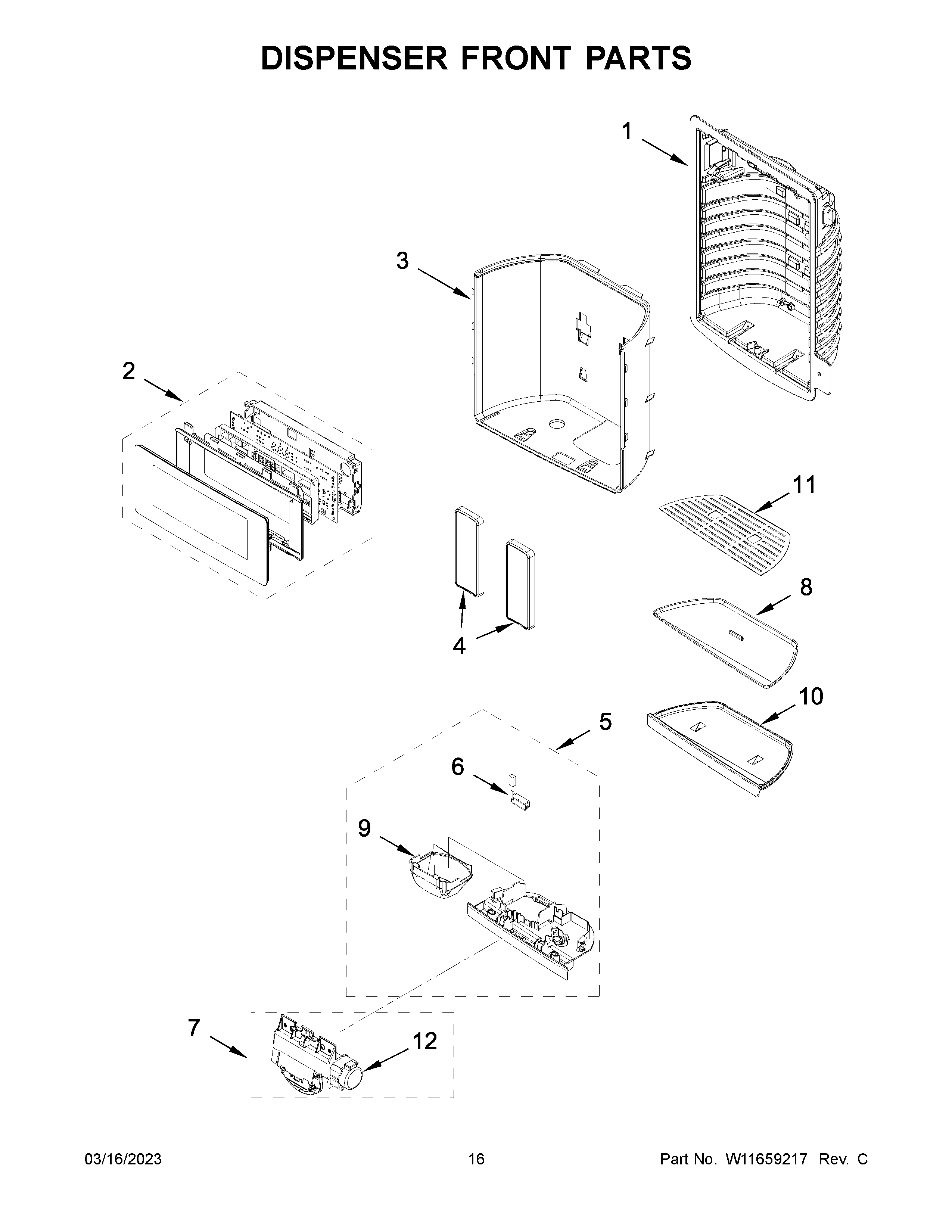

KRFF577KBS02 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	HOUSING, DISPENSER (NOT SERVICED)
2	W11636543 Whirlpool UI Panel + Core
3A	WPW10486346 Whirlpool Refrigerator Shield
3	W10486344 Whirlpool Refrigerator Shield
4	W11561037 Whirlpool Refrigerator Pad
4A	WPW10346924 Whirlpool Refrigerator Pad
5	W10836794 Whirlpool Refrigerator Separator
6	W11290115 Whirlpool Refrigerator Light
7	WPW10606117 Whirlpool Refrigerator Ice Door
8	W10400889 Whirlpool Insert
8A	W10402269 Whirlpool Refrigerator Insert
9	WPW10435760 Whirlpool Refrigerator Ice Guide
10	W10400884 Whirlpool Refrigerator Drip Tray
10A	WPW10400887 Whirlpool Drip Tray
11	WPW10542708 Whirlpool Refrigerator Grille
12	WPW10205979 Whirlpool Refrigerator Ice Door Motor
