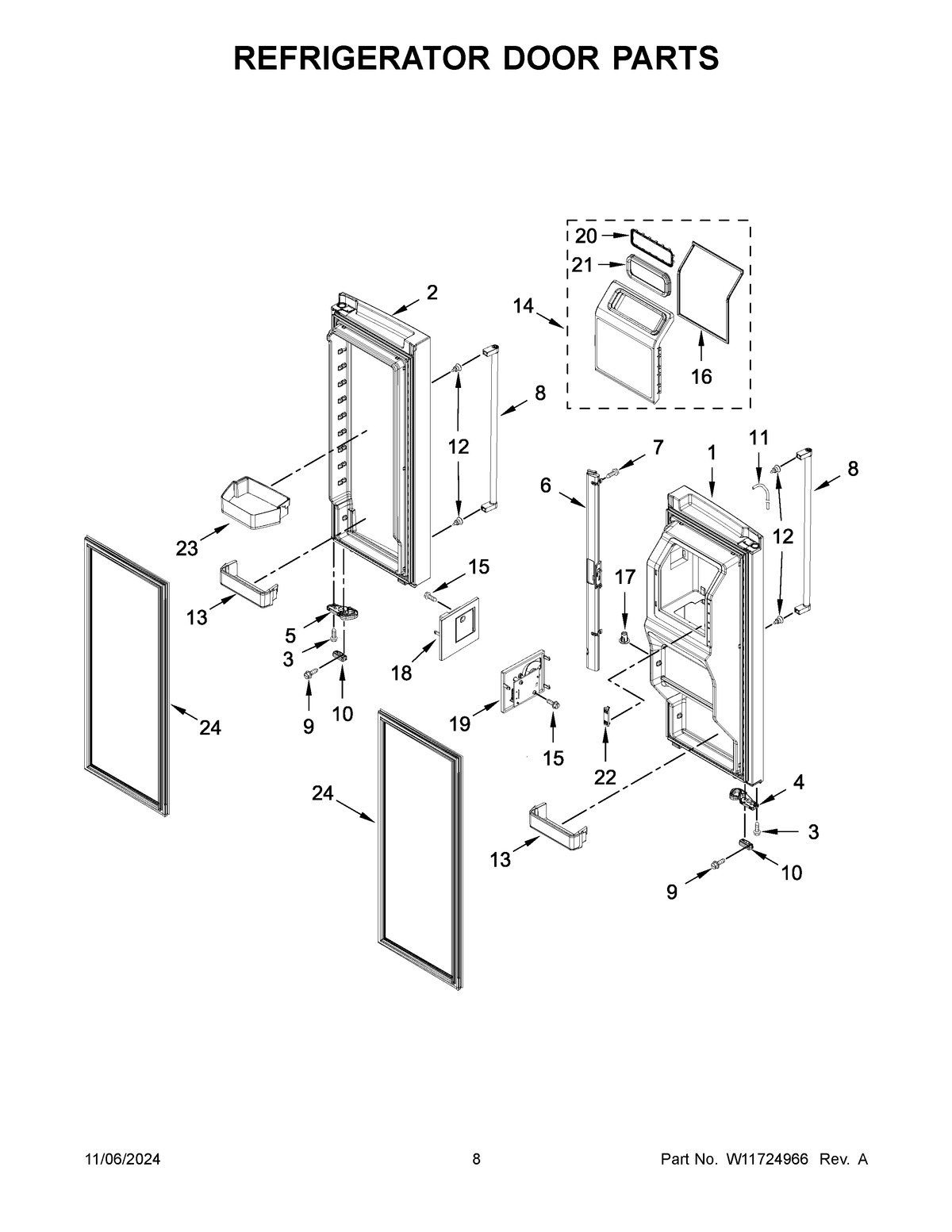

KRFF577KBS03 05 – REFRIGERATOR DOOR PARTS

KRFF577KBS03 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFF577KBS03 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11681451 Whirlpool Door Fip
2W11681450 Whirlpool Door FIP
4W10904595 Whirlpool Refrigerator Closer
5W11212164 Whirlpool Refrigerator Door Closer
6W10907531 Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8W11483532 Whirlpool Refrigerator Handle
9WP98165 Whirlpool Screw
10W10407187 Whirlpool Refrigerator Door Bumper
11W10394073 Whirlpool Refrigerator Water Tube
12W11449276 Whirlpool Handle Support
13W11680598 Whirlpool Trivet
14W11679939 Whirlpool Ice Door
152006254 Whirlpool Refrigerator Screw
16W11625019 Whirlpool Refrigerator Gasket
17W11315303 Whirlpool Refrigerator Clip
18BOARD AND COVER ASSEMBLY, EMITTER
19BOARD AND COVER ASSEMBLY, RECEIVER
20W11504381 Whirlpool Refrigerator Retainer
21GASKET
22W11684620 Whirlpool Vent
23W11680597 Whirlpool Bin Containment Cover
24W10861004 Whirlpool Refrigerator FIP Gasket
