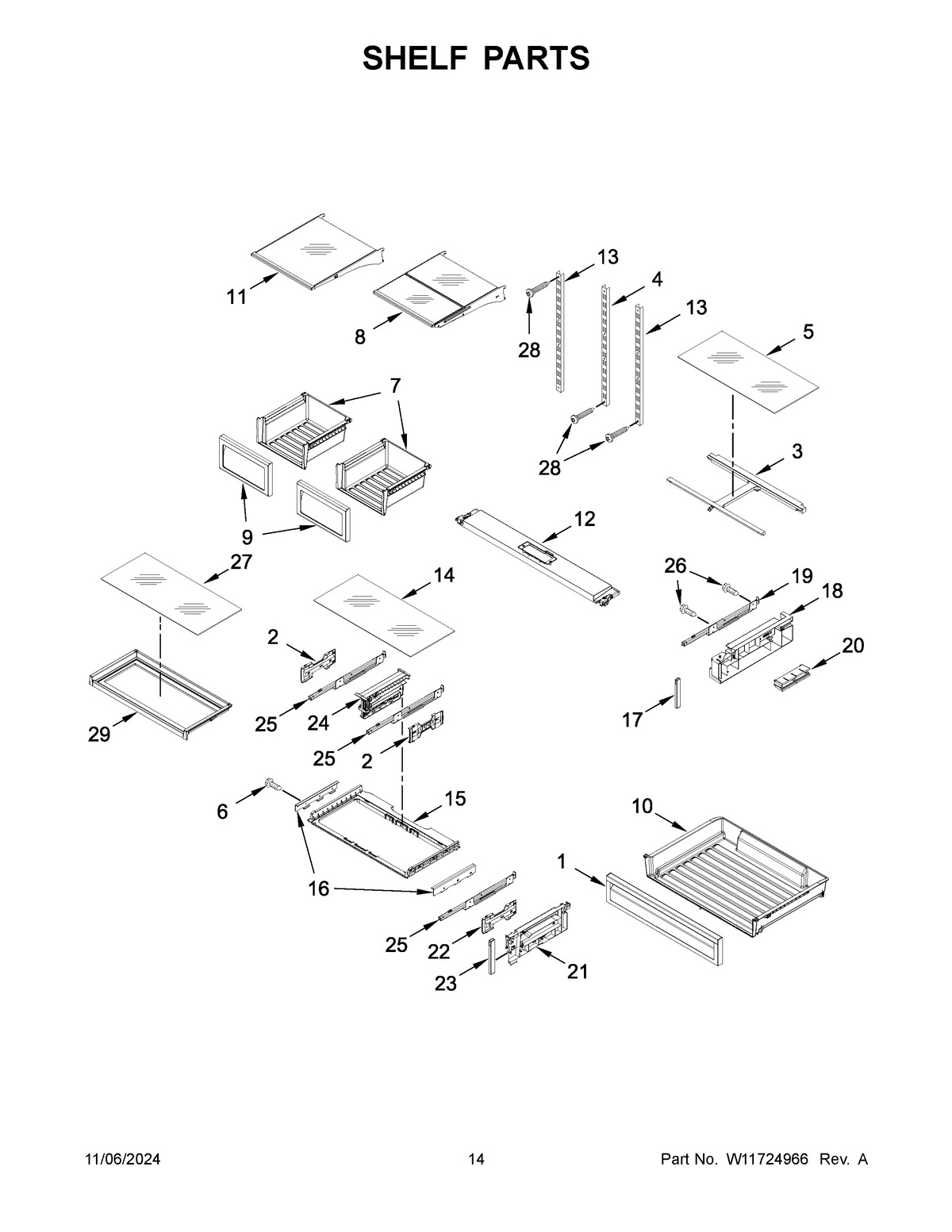

KRFF577KBS03 08 – SHELF PARTS

Products

Position	Product
1	W11226806 Whirlpool Refrigerator Front Pan
2	W10562471 Whirlpool Plate
3	SUPPORT
4	W10467461 Whirlpool Refrigerator Ladder
5	W11092486 Whirlpool Refrigerator Glass Shelf
6	W10834285 Whirlpool Refrigerator Screw
7	W11227365 Whirlpool Refrigerator Crisper Pan
8	WPW10737428 Whirlpool Refrigerator Glass Shelf
9	W11176882 Whirlpool Refrigerator Front Panel
10	W10860197 Whirlpool Refrigerator Utility Pan
11	W10807832 Whirlpool Refrigerator Glass Shelf
12	COVER
13	W10467460 Whirlpool Refrigerator Ladder
14	WPW10568000 Whirlpool Refrigerator Glass Shelf
15	W11373141 Whirlpool Frame
16A	RAIL
16	RAIL
17	PLATE, PANTRY FRONT
18	W10584634 Whirlpool Refrigerator Plate
18A	PLATE
19	W10499289 Whirlpool Refrigerator Slide
19A	SLIDE, PANTRY (RIGHT HAND)
20	W10432697 Whirlpool Refrigerator Insulation
21	W11329364 Whirlpool Refrigerator Plate
21A	W11329579 Whirlpool Refrigerator Plate
22	W10562802 Whirlpool Refrigerator Plate
23	W10562814 Whirlpool Trim
24	W10562425 Whirlpool Track Assembly
25	W11233912 Whirlpool Refrigerator Slide
26	WP8281136 Whirlpool Screw
27	W11228263 Whirlpool Refrigerator Glass Shelf
28	W10423561 Whirlpool Screw
29	W11660619 Whirlpool Frame
