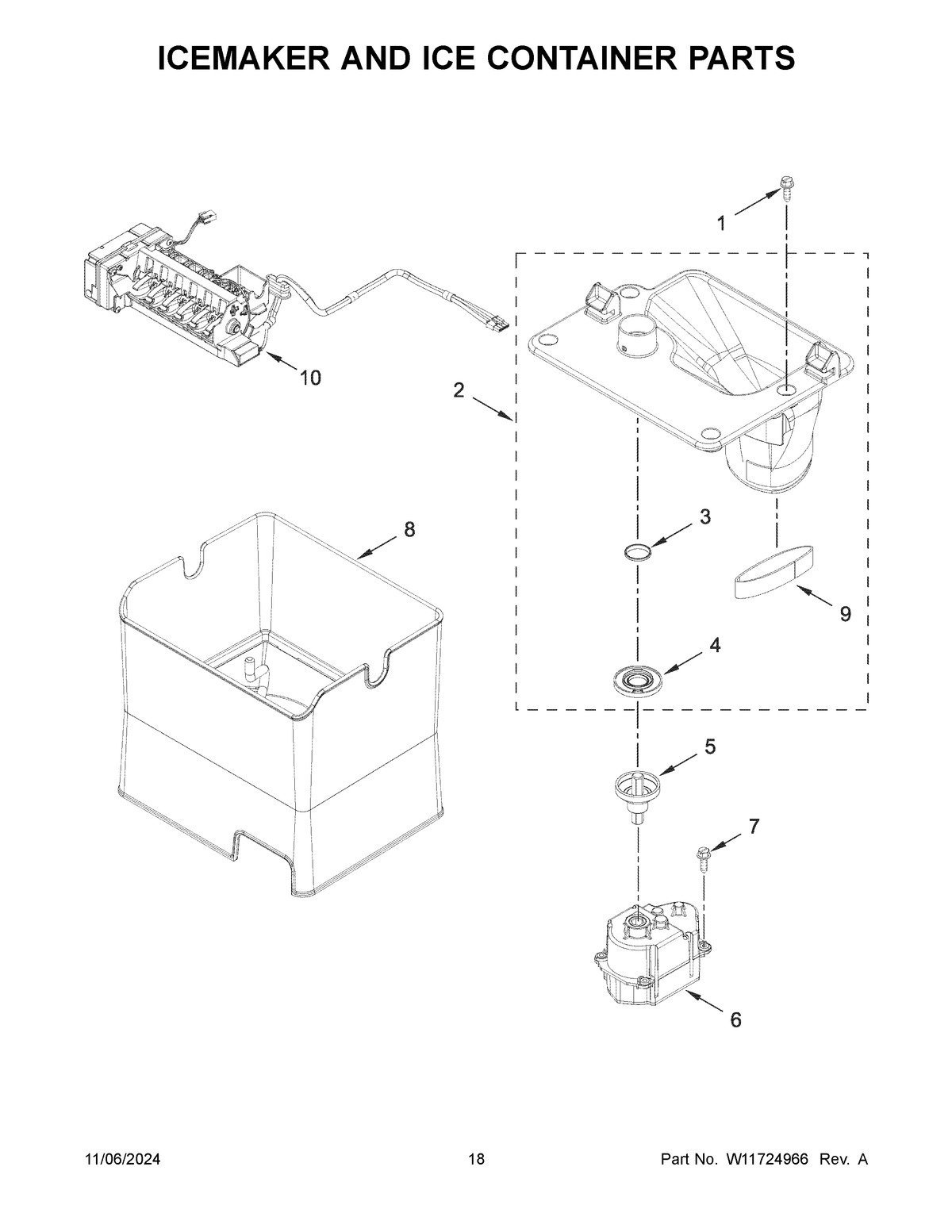

KRFF577KBS03 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

Position	Product
1	WPW10272364 Whirlpool Refrigerator Screw
2	ASSEMBLY, ICE CHUTE PLATE
3	WP2198628 Whirlpool Door Seal
4	W10847834 Whirlpool Clip
5	W11509548 Whirlpool Ice Bucket Coupler
6	W10822606 Whirlpool Dishwasher Dispenser Motor
7	WP8281163 Whirlpool Refrigerator Screw
8	W11129522 Whirlpool Ice Bucket Assembly
9	WPW10291905 Whirlpool Seal
10	W11658802 Whirlpool Refrigerator Ice Maker
