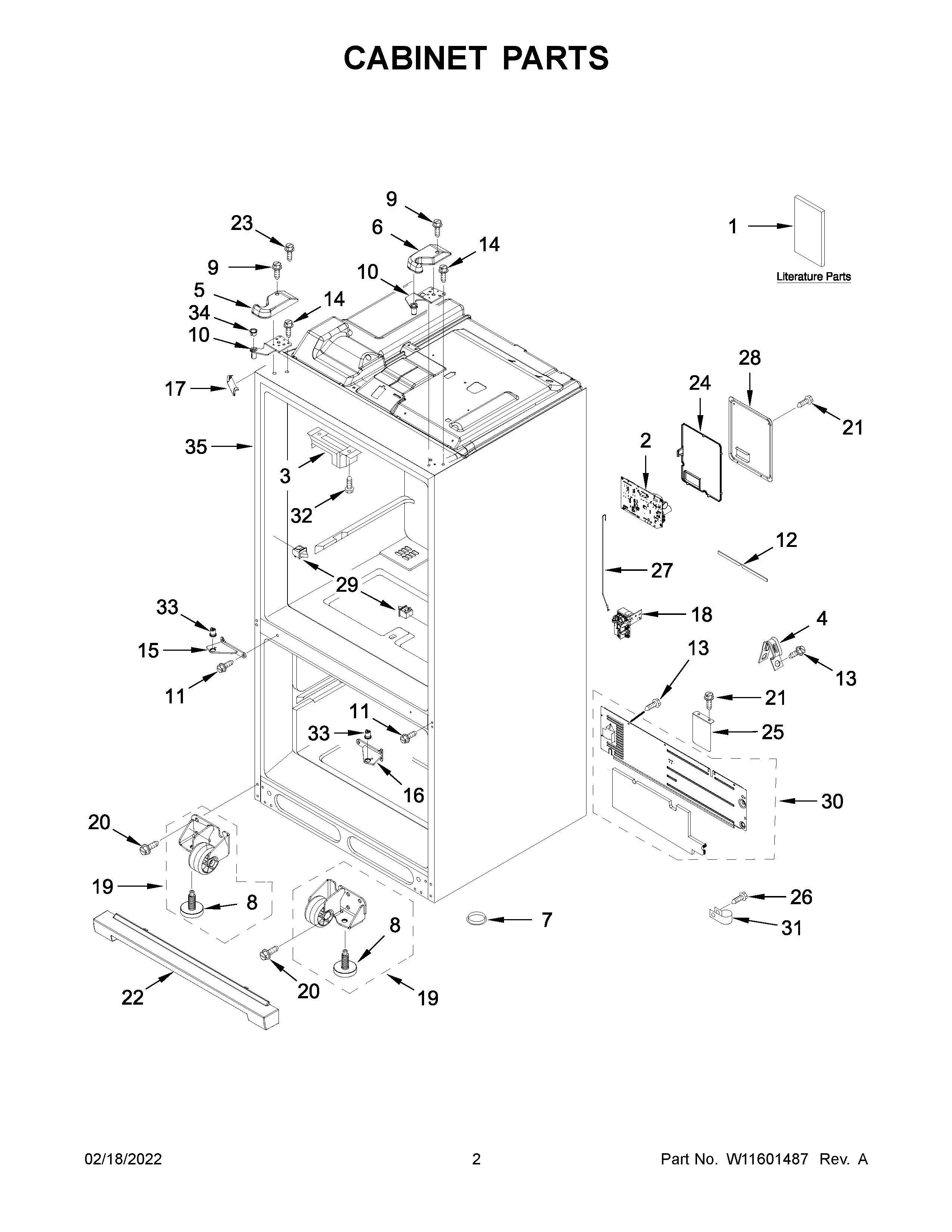

KRFF577KPS01 02 – CABINET PARTS

KRFF577KPS01 02 – CABINET PARTS

Written by

in

KRFF577KPS01 02 – CABINET PARTS

Products

PositionProduct
1ATECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
1CTECH SHEET, ENERGY GUIDE
1BTECH SHEET, OWNERS MANUAL
2W11224256-includeCORE Whirlpool W11224256 Washer Electronic Control Board + Core
3W10562833 Whirlpool Refrigerator Pivot Block
4549193 Whirlpool Refrigerator Power Clamp
5AWPW10471618 Whirlpool Refrigerator Cover
5W10471617 Whirlpool Refrigerator Cover
6COVER, TOP HINGE RIGHT HAND (BLACK)
6AWPW10407158 Whirlpool Refrigerator Cover Assembly
7A3076901 Whirlpool Refrigerator Plug
8WPW10141622 Whirlpool Leveler
9WP8281196 Whirlpool Screw
10AW11592404 Whirlpool Refrigerator Door Hinge
10W11592405 Whirlpool Door Hinge
11W10673842 Whirlpool Refrigerator Screw
11AW11573362 Whirlpool Screw Assembly
12W10415341 Whirlpool Refrigerator Gasket
13SCREW
14W11126052 Whirlpool Screw Assembly
15AW10878115 Whirlpool Refrigerator Door Hinge
15W10407279 Whirlpool Refrigerator Door Hinge
16AW11240748 Whirlpool Refrigerator Door Hinge
16W10407275 Whirlpool Refrigerator Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
17AWP12587703AP Whirlpool Refrigerator Filler
18VALVE
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21W11686675 Whirlpool Screw
22AWPW10637671 Whirlpool Refrigerator Front Grille
22WPW10637669 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24W10768379 Whirlpool Refrigerator Cover
25W10336736 Whirlpool Refrigerator Cover
2667006425 Whirlpool Refrigerator Screw
27W11482381 Whirlpool Refrigerator Water Tube
28W10754144 Whirlpool Refrigerator Cover
29W11123941 Whirlpool Refrigerator Switch
30W11482027 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32W10854958 Whirlpool Refrigerator Screw
33COUPLER, DOOR
34W10212137 Whirlpool Refrigerator Grommet
35CABINET (NOT A SERVICEABLE PART)
