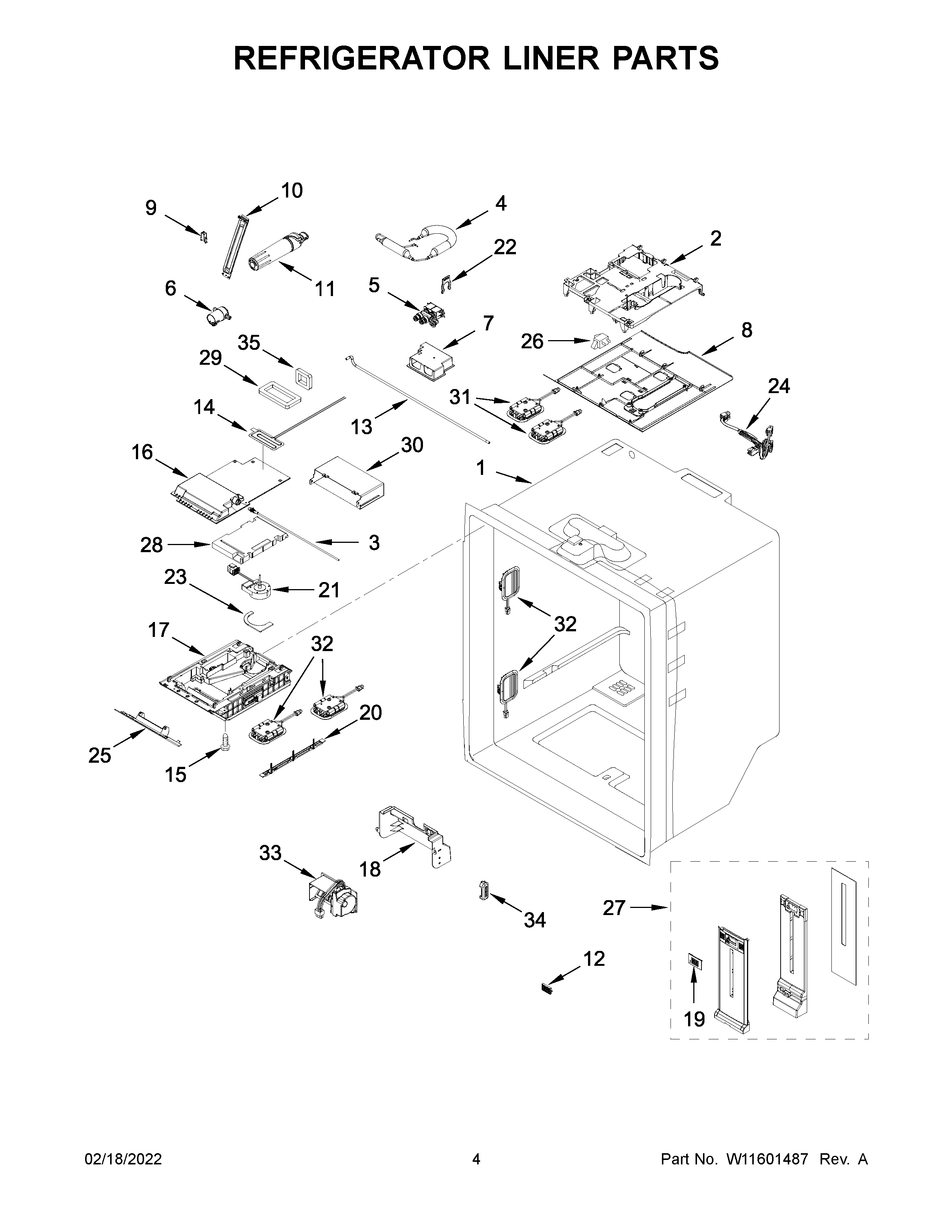

KRFF577KPS01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11298842 Whirlpool Refrigerator Wire Harness
NI	W11483123 Whirlpool Wire Harness
2	W11482035 Whirlpool Refrigerator Housing
3	W11686799 Whirlpool Refrigerator Water Tube
4	W11482382 Whirlpool Refrigerator Reservoir
5	W11482383 Whirlpool Microwave Valve
6	W11482384 Whirlpool Refrigerator Housing
7	W11391457 Whirlpool Refrigerator Cover
8	W10754145 Whirlpool Refrigerator Cover
9	WP2223877 Whirlpool Door Hook
10	W10754143 Whirlpool Refrigerator Filter Cover
11	EDR2RXD1 Whirlpool Everydrop® Water Filter 2 Refrigerator
12	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
13	W11686800 Whirlpool Water Tube
14	HEATER
15	WP67006908 Whirlpool Refrigerator Screw
16	WPW10598013 Whirlpool Refrigerator Cover
17	W11605505 Whirlpool Ice Box
18	W11124841 Whirlpool Cover Assembly
19	W11682236 Whirlpool Cover
20	W10785113 Whirlpool Refrigerator Trim
21	FAN-EVAPORATOR
22	W11678575 Whirlpool Ring
23	WPW10392172 Whirlpool Refrigerator Gasket
24	W11369503 Whirlpool Jumper Wire
25	W11741469 Whirlpool Heater
26	W11123941 Whirlpool Refrigerator Switch
27	W11373136 Whirlpool Air Tower
28	WPW10280983 Whirlpool Refrigerator Insulation
29	WPW10280988 Whirlpool Refrigerator Gasket
30	W11126056 Whirlpool Refrigerator Adapter
31	W11484839 Whirlpool Refrigerator Module
32	W11484836 Whirlpool Refrigerator Module
33	CONTROL
34	W11238397 Whirlpool Refrigerator Cover
35	WPW10320706 Whirlpool Refrigerator Gasket
