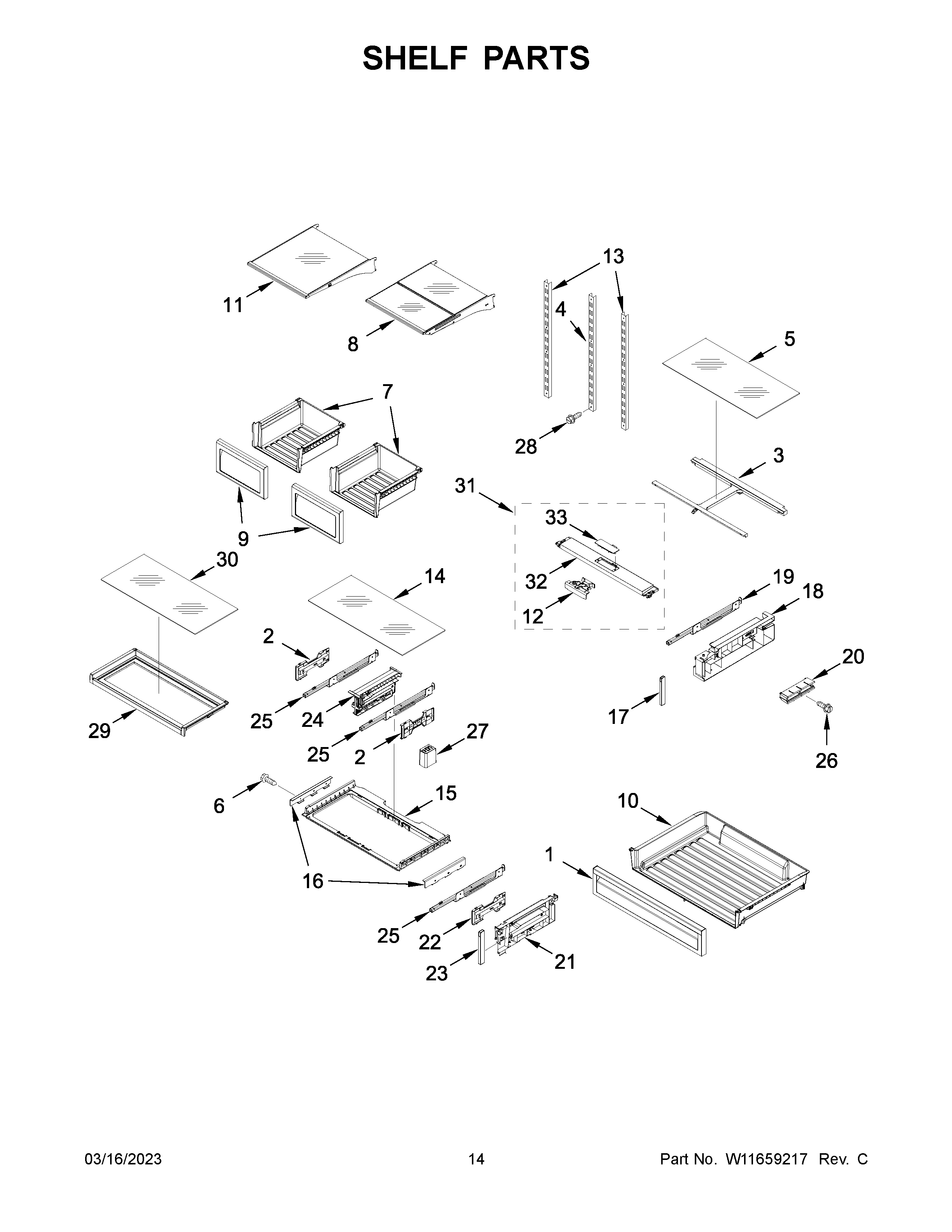

KRFF577KPS02 08 – SHELF PARTS
Written by
in
KRFF577KPS02 08 – SHELF PARTS
Products
Position
Product
1
W11226806 Whirlpool Refrigerator Front Pan
2
W10562471 Whirlpool Plate
3
SUPPORT
4
W10467461 Whirlpool Refrigerator Ladder
5
W11092486 Whirlpool Refrigerator Glass Shelf
6
W10834285 Whirlpool Refrigerator Screw
7
W11227365 Whirlpool Refrigerator Crisper Pan
8
WPW10737428 Whirlpool Refrigerator Glass Shelf
9
W11176882 Whirlpool Refrigerator Front Panel
10
W10860197 Whirlpool Refrigerator Utility Pan
11
W10807832 Whirlpool Refrigerator Glass Shelf
12
COVER
13
LADDER, SIDE
14
WPW10568000 Whirlpool Refrigerator Glass Shelf
15
W11373141 Whirlpool Frame
16
RAIL
16A
RAIL
17
PLATE, PANTRY FRONT
18A
PLATE
18
W10584634 Whirlpool Refrigerator Plate
19
W10499289 Whirlpool Refrigerator Slide
19A
SLIDE, PANTRY (RIGHT HAND)
20
W10432697 Whirlpool Refrigerator Insulation
21
W11329364 Whirlpool Refrigerator Plate
21A
W11329579 Whirlpool Refrigerator Plate
22
W10562802 Whirlpool Refrigerator Plate
23
W10562814 Whirlpool Trim
24
W10562425 Whirlpool Track Assembly
25
W11233912 Whirlpool Refrigerator Slide
26
W10854958 Whirlpool Refrigerator Screw
27
SUPPORT, CRISPER
28
WPW10666373 Whirlpool Refrigerator Screw
29
W11660619 Whirlpool Frame
30
W11228263 Whirlpool Refrigerator Glass Shelf
←
