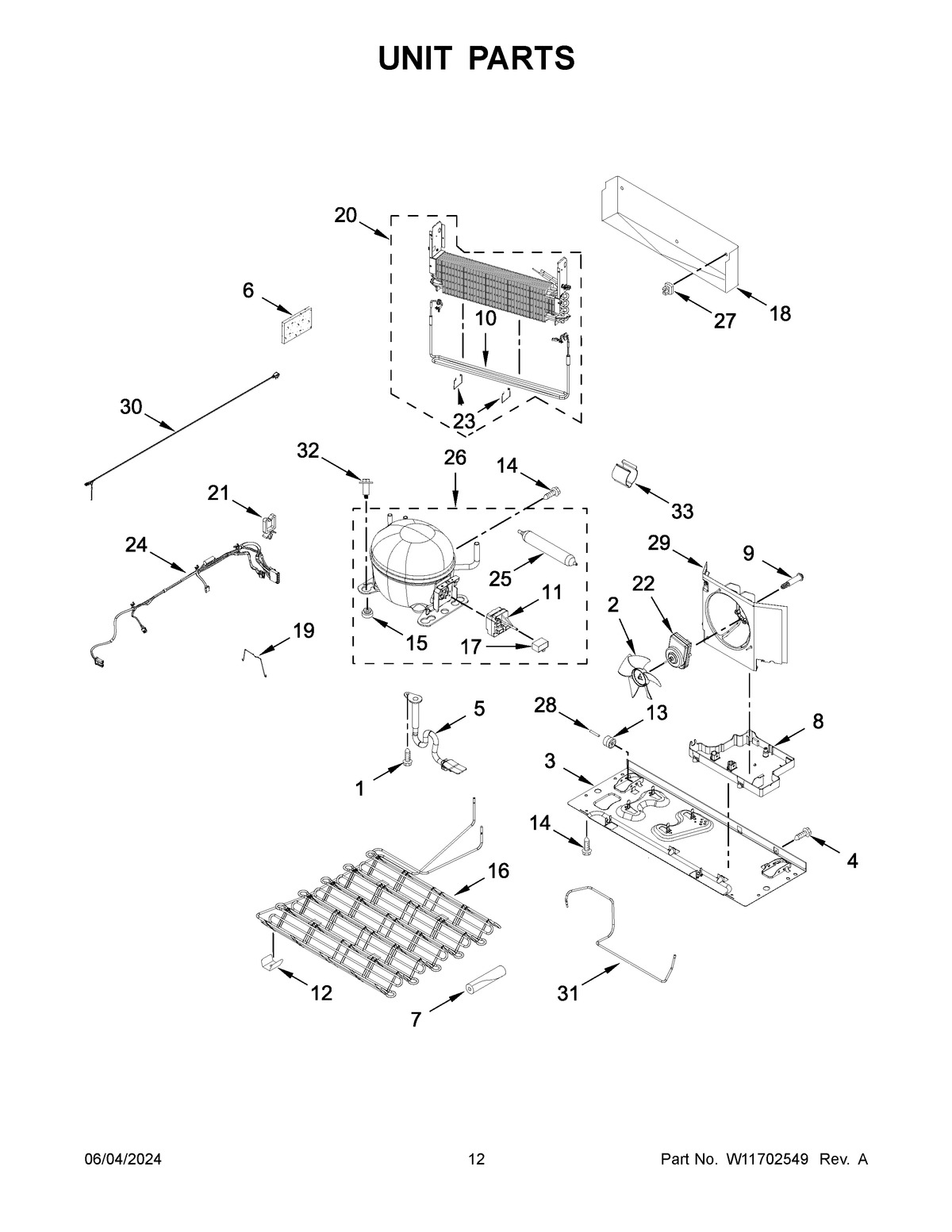

KRFF577KPS03 07 – UNIT PARTS

KRFF577KPS03 07 – UNIT PARTS

Written by

in

KRFF577KPS03 07 – UNIT PARTS

Products

Position	Product
NI	REFRIGERANT CHARGE 56 GRAMS (R600A)
1	W10141518 Whirlpool Refrigerator Screw
2	WP2188935 Whirlpool Refrigerator Fan Blade
3	BASEPLATE, COMPRESSOR
4	67006425 Whirlpool Refrigerator Screw
5	W11712703 Whirlpool Extension Assembly
6	W11553819 Whirlpool Refrigerator Insulation
7	SLEEVE
8	W11225840 Whirlpool Refrigerator Evaporator Tray
9	W10829281 Whirlpool Refrigerator Screw
10	W11575359 Whirlpool Heater Assembly
11	WPW10197428 Whirlpool Start Device
12	W10683556 Whirlpool Refrigerator Clip
13	WP67005149 Whirlpool Roller
14	Screw
15	WPW10169124 Whirlpool Refrigerator Grommet
16	W11411956 Whirlpool Condenser Assembly
17	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
18	W11408656 Whirlpool Refrigerator Drip Tray
19	W11661170 Whirlpool Clip
20B	W11504450 Whirlpool Refrigerator Coupler
20	W11598434 Whirlpool Refrigerator Evaporator Repair
20A	W11506620 Whirlpool Refrigerator Coupler
21	CLIP
22	W11127829 Whirlpool Refrigerator Condenser Motor
23	W11380964 Whirlpool Clip Assembly
24	W11614808 Whirlpool Refrigerator Wire Harness
25B	W11504447 Whirlpool Refrigerator Coupler
25A	W11504445 Whirlpool Refrigerator Coupler
25	W11109499 Whirlpool Refrigerator Tube
26B	W11504415 Whirlpool Refrigerator Coupler
26	COMPRESSOR
26A	W11504431 Whirlpool Microwave Coupler
26D	W11506635 Whirlpool Refrigerator Valve Coupler
26C	W11506621 Whirlpool Refrigerator Coupler
27	CLIP, EVAP (2)
28	67006434 Whirlpool Axle Pin
29	WPW10406719 Whirlpool Refrigerator Shroud
30	W11254160 Whirlpool Refrigerator Power Cord
31	W11578047 Whirlpool Tube
32	W11417341 Whirlpool Refrigerator Screw
33	W10281329 Whirlpool Clamp
