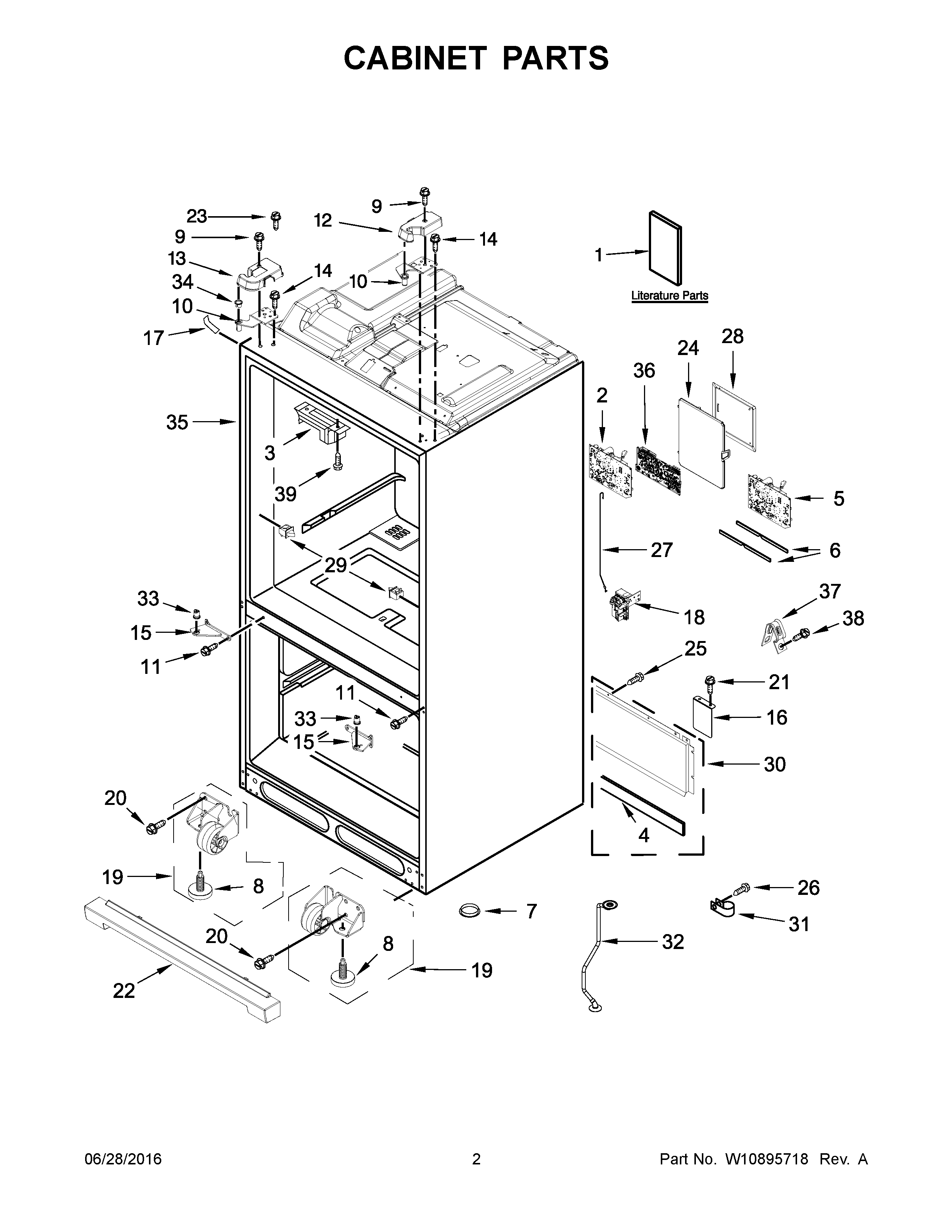

KRFF707EBS00 02 – CABINET PARTS

KRFF707EBS00 02 – CABINET PARTS

Products

PositionProduct
1BUSE AND CARE
1AFRENCH
1ENGLISH
1CENERGY GUIDE
2W10830278 Whirlpool Refrigerator Electronic Control Board
3W10562833 Whirlpool Refrigerator Pivot Block
4W10505487 Whirlpool Refrigerator Gasket
5W10843055 Whirlpool Refrigerator Electronic Control Board + Core
6W10415341 Whirlpool Refrigerator Gasket
7A3076901 Whirlpool Refrigerator Plug
8WPW10141622 Whirlpool Leveler
9WP8281196 Whirlpool Screw
10AW11592404 Whirlpool Refrigerator Door Hinge
10W11592405 Whirlpool Door Hinge
11W11573362 Whirlpool Screw Assembly
12COVER, TOP HINGE RIGHT HAND (BLACK)
13W10471617 Whirlpool Refrigerator Cover
14W11126052 Whirlpool Screw Assembly
15AW10407275 Whirlpool Refrigerator Door Hinge
15W10407279 Whirlpool Refrigerator Door Hinge
16W10336736 Whirlpool Refrigerator Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18W10865826 Whirlpool Refrigerator Water Inlet Valve
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WP33001882 Whirlpool Screw
22WPW10637669 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24W10277839 Whirlpool Refrigerator Cover
2667006425 Whirlpool Refrigerator Screw
27W11209890 Whirlpool Refrigerator Water Tube
28W10754591 Whirlpool Refrigerator Cover
29W11289496 Whirlpool Refrigerator Switch
30W11482027 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32TUBE, DRAIN
33COUPLER, DOOR
34W10212137 Whirlpool Refrigerator Grommet
35CABINET (NOT A SERVICEABLE PART)
36W10830288-includeCORE Whirlpool W10830288 Refrigerator LED Control Board + Core
37549193 Whirlpool Refrigerator Power Clamp
38SCREW
39W10854958 Whirlpool Refrigerator Screw
