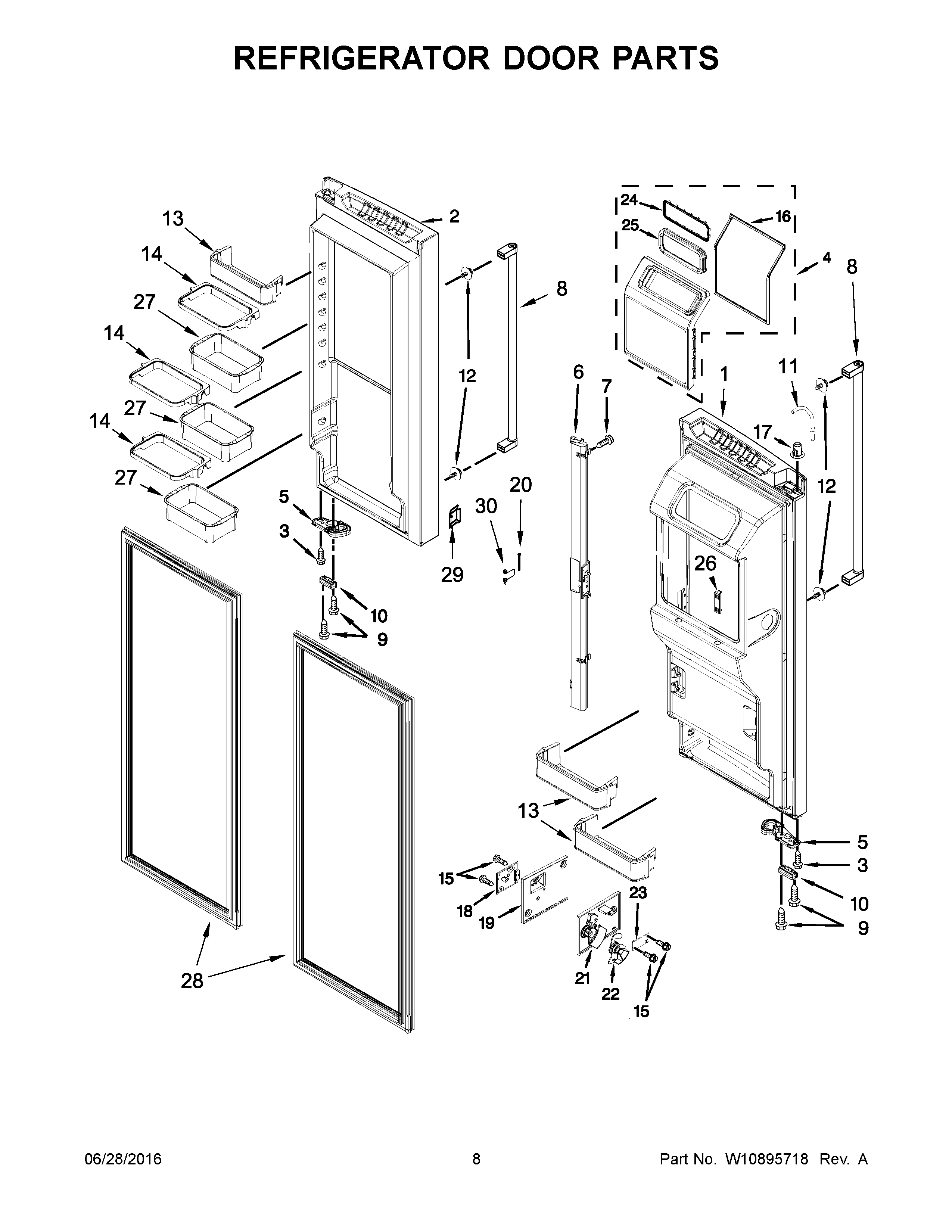

KRFF707EBS00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10919668 Whirlpool Refrigerator Door Assembly
2W10919672 Whirlpool Refrigerator Door Assembly
3WPW10464016 Whirlpool Refrigerator Screw
4W11399564 Whirlpool Refrigerator Ice Door
5AW11212164 Whirlpool Refrigerator Door Closer
5W10904595 Whirlpool Refrigerator Closer
6W10907531 Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8W11483532 Whirlpool Refrigerator Handle
9WP98165 Whirlpool Screw
10W10407187 Whirlpool Refrigerator Door Bumper
11W10394073 Whirlpool Refrigerator Water Tube
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13W11026418 Whirlpool Refrigerator Trivet
14W11098158 Whirlpool Refrigerator Frame Shelf
152006254 Whirlpool Refrigerator Screw
16W11625019 Whirlpool Refrigerator Gasket
17W10562834 Whirlpool Refrigerator Clip
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19W10563326 Whirlpool Refrigerator Cover
20W10331749 Whirlpool Refrigerator Door PIN
21W10563309 Whirlpool Refrigerator Cover
22W10563328 Whirlpool Refrigerator Slide
23W10870822 Whirlpool Refrigerator Electronic Control Board
24W11504381 Whirlpool Refrigerator Retainer
25W10567563 Whirlpool Refrigerator Gasket
26W11684620 Whirlpool Vent
27W11026416 Whirlpool Refrigerator Cantilever Bin
28W10861004 Whirlpool Refrigerator FIP Gasket
29W10563323 Whirlpool Refrigerator Flipper
30WP2198635 Whirlpool Refrigerator Spring
