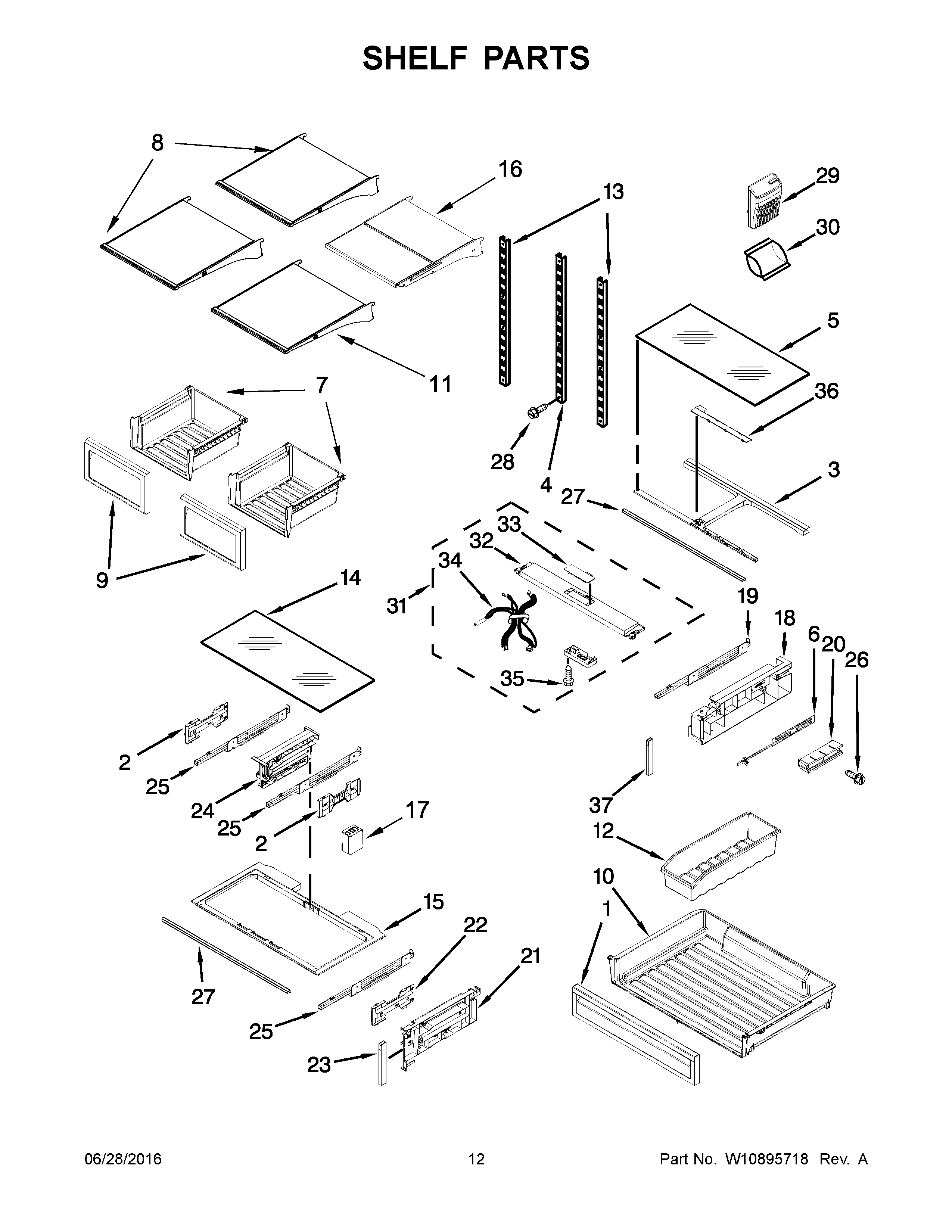

KRFF707EBS00 07 – SHELF PARTS

KRFF707EBS00 07 – SHELF PARTS

Written by

in

KRFF707EBS00 07 – SHELF PARTS

Products

Position	Product
1	W11226806 Whirlpool Refrigerator Front Pan
2	W10562471 Whirlpool Plate
3	W10564564 Whirlpool Refrigerator Support
4	W10467461 Whirlpool Refrigerator Ladder
5	WPW10248799 Whirlpool Refrigerator Glass Shelf
6	W10342618 Whirlpool Refrigerator Heater
7	W11227365 Whirlpool Refrigerator Crisper Pan
8	W11245713 Whirlpool Refrigerator Glass Shelf
9	W11176882 Whirlpool Refrigerator Front Panel
10	W10860197 Whirlpool Refrigerator Utility Pan
11	W10807832 Whirlpool Refrigerator Glass Shelf
12	W10591235 Whirlpool Refrigerator Divider
13	W10719660 Whirlpool Refrigerator Ladder
14	WPW10568000 Whirlpool Refrigerator Glass Shelf
15	W10561180 Whirlpool Refrigerator Frame
16	WPW10737428 Whirlpool Refrigerator Glass Shelf
17	SUPPORT, CRISPER
18	PLATE, SIDE PANTRY (LEFT HAND)
18A	W10577015 Whirlpool Refrigerator Plate
19	SLIDE, PANTRY (RIGHT HAND)
20	W10432697 Whirlpool Refrigerator Insulation
21A	W11329579 Whirlpool Refrigerator Plate
21	W11329364 Whirlpool Refrigerator Plate
22	W10562802 Whirlpool Refrigerator Plate
23	W10562814 Whirlpool Trim
24	W10562425 Whirlpool Track Assembly
25	W11233912 Whirlpool Refrigerator Slide
26	WP67006908 Whirlpool Refrigerator Screw
27	WPW10236512 Whirlpool Refrigerator Support
28	WPW10666373 Whirlpool Refrigerator Screw
29	W10647983 Whirlpool Refrigerator Housing
30	W10346771A Whirlpool Fresh Flow Produce Preserver
31	W11048824 Whirlpool Refrigerator Cover
32	WPW10562532 Whirlpool Refrigerator Cover
33	W10844270 Whirlpool Refrigerator Electronic Control Board
34	W10610324 Whirlpool Refrigerator Wire Harness
35	W11311945 Whirlpool Refrigerator Screw
36	W10564570 Whirlpool Cover
37	PLATE, PANTRY FRONT
