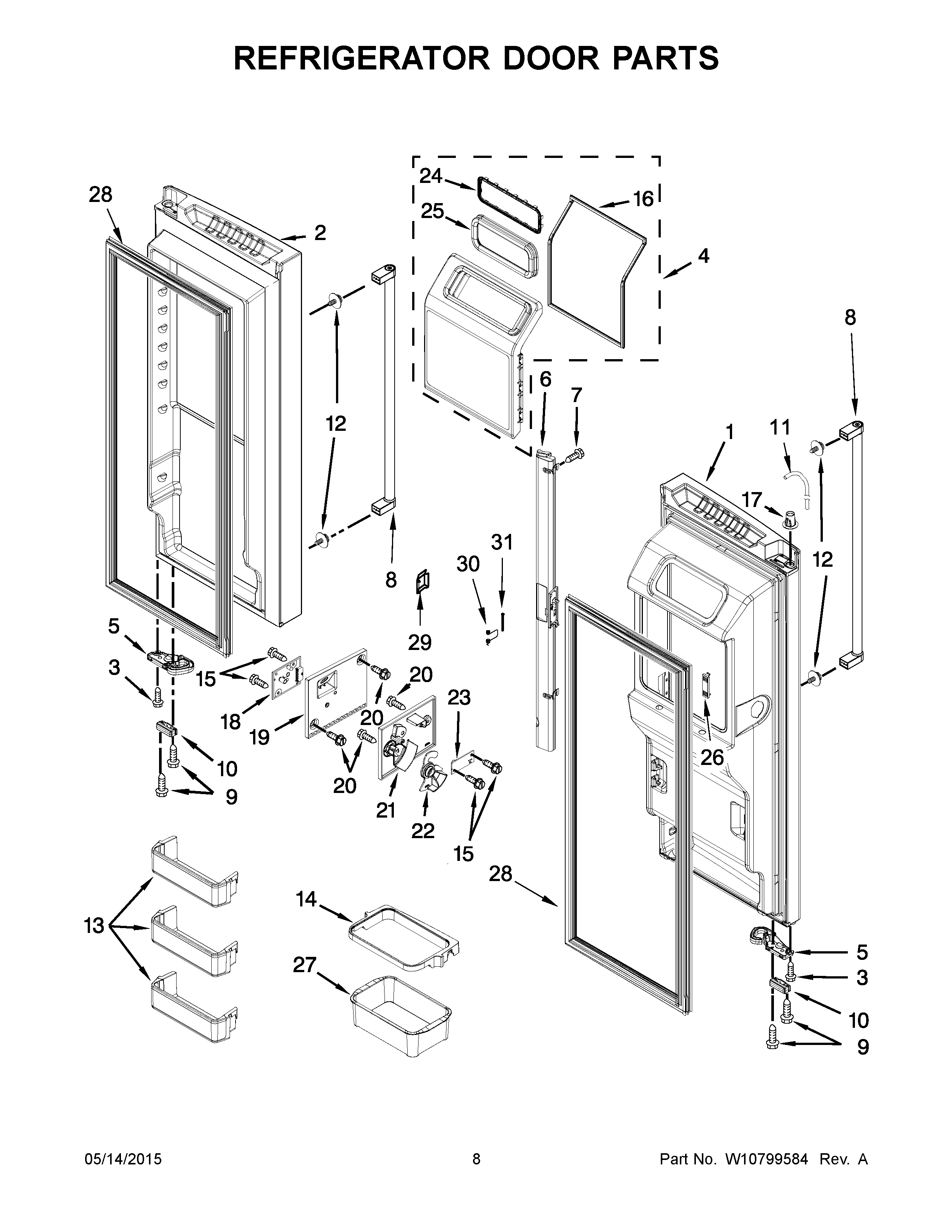

KRFF707ESS00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10577009 Whirlpool Refrigerator Door Flip
2	LW10564036 Whirlpool Refrigerator DOR-FIP Stainless Steel
3	WPW10464016 Whirlpool Refrigerator Screw
4	W11399564 Whirlpool Refrigerator Ice Door
5A	W11212164 Whirlpool Refrigerator Door Closer
5	W10904595 Whirlpool Refrigerator Closer
6	W10849525 Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	W11483532 Whirlpool Refrigerator Handle
9	WP98165 Whirlpool Screw
10	W11573367 Whirlpool Refrigerator Door Bumper
11	W10394073 Whirlpool Refrigerator Water Tube
12	WPW10661886 Whirlpool Refrigerator Door Handle Screw
13	W11026418 Whirlpool Refrigerator Trivet
14	W11098158 Whirlpool Refrigerator Frame Shelf
15	2006254 Whirlpool Refrigerator Screw
16	W11625019 Whirlpool Refrigerator Gasket
17	W10562834 Whirlpool Refrigerator Clip
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	W10563326 Whirlpool Refrigerator Cover
20	WP3400065 Whirlpool Refrigerator Screw
21	W10563309 Whirlpool Refrigerator Cover
22	W10563328 Whirlpool Refrigerator Slide
23	W10870822 Whirlpool Refrigerator Electronic Control Board
24	W11504381 Whirlpool Refrigerator Retainer
25	W10567563 Whirlpool Refrigerator Gasket
26	W11684620 Whirlpool Vent
27	W11026416 Whirlpool Refrigerator Cantilever Bin
28	W10407212 Whirlpool Door Gasket
29	W10563323 Whirlpool Refrigerator Flipper
30	WP2198635 Whirlpool Refrigerator Spring
31	W10331749 Whirlpool Refrigerator Door PIN
