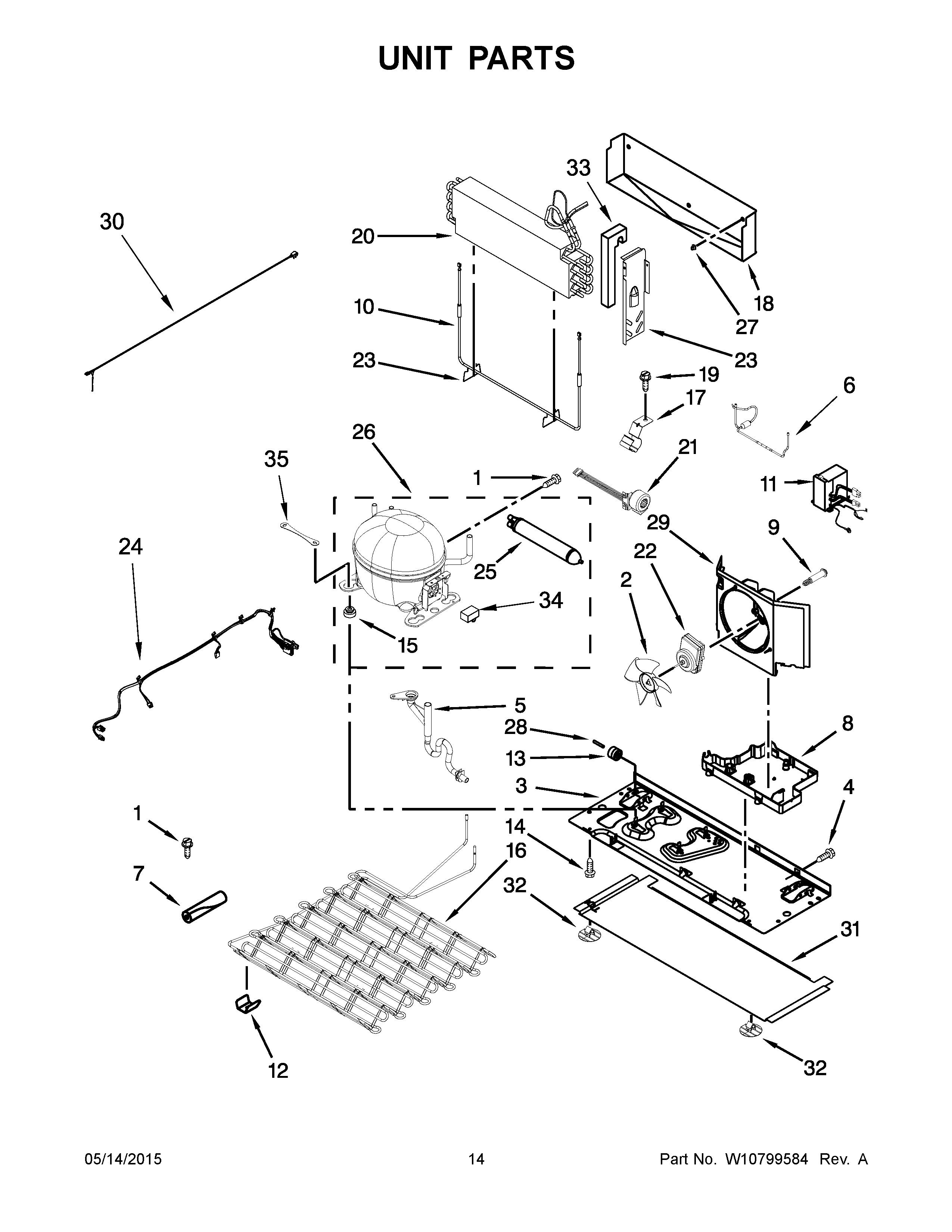

KRFF707ESS00 08 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
112992301 Whirlpool Refrigerator Screw
2WP2188935 Whirlpool Refrigerator Fan Blade
3W10570074 Whirlpool Refrigerator Plate
467006425 Whirlpool Refrigerator Screw
5W11745092 Whirlpool Dual Evaporator Drain Extension
6WPW10626970 Whirlpool Refrigerator Tube
7SLEEVE
8W11225840 Whirlpool Refrigerator Evaporator Tray
9W10829281 Whirlpool Refrigerator Screw
10HEATER
11WPW10154805 Whirlpool Refrigerator Inverter Box
12W10683556 Whirlpool Refrigerator Clip
13WP67005149 Whirlpool Roller
14Screw
15WPW10169124 Whirlpool Refrigerator Grommet
16W11673437 Whirlpool Condenser Assembly
17W10391376 Whirlpool Bracket Assembly
18TRAY, DRIP
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10608485 Whirlpool Refrigerator Evaporator
21W11580434 Whirlpool Refrigerator Valve
22W11127829 Whirlpool Refrigerator Condenser Motor
23W11673433 Whirlpool Clip
24W11189618 Whirlpool Refrigerator Wire Harness
25WPW10143759 Whirlpool Dryer Filter
268201675 Whirlpool Refrigerator Compressor
27W11544659 Whirlpool Refrigerator Screw
2867006434 Whirlpool Axle Pin
29WPW10406719 Whirlpool Refrigerator Shroud
30CORD-POWER
31W10278140 Whirlpool Refrigerator Unit Cover
32W10296661 Whirlpool Refrigerator Clip
33W10491355 Whirlpool Refrigerator Air Gasket
342215676 Whirlpool Refrigerator Terminal Cover
35W10236396 Whirlpool Refrigerator Strap
