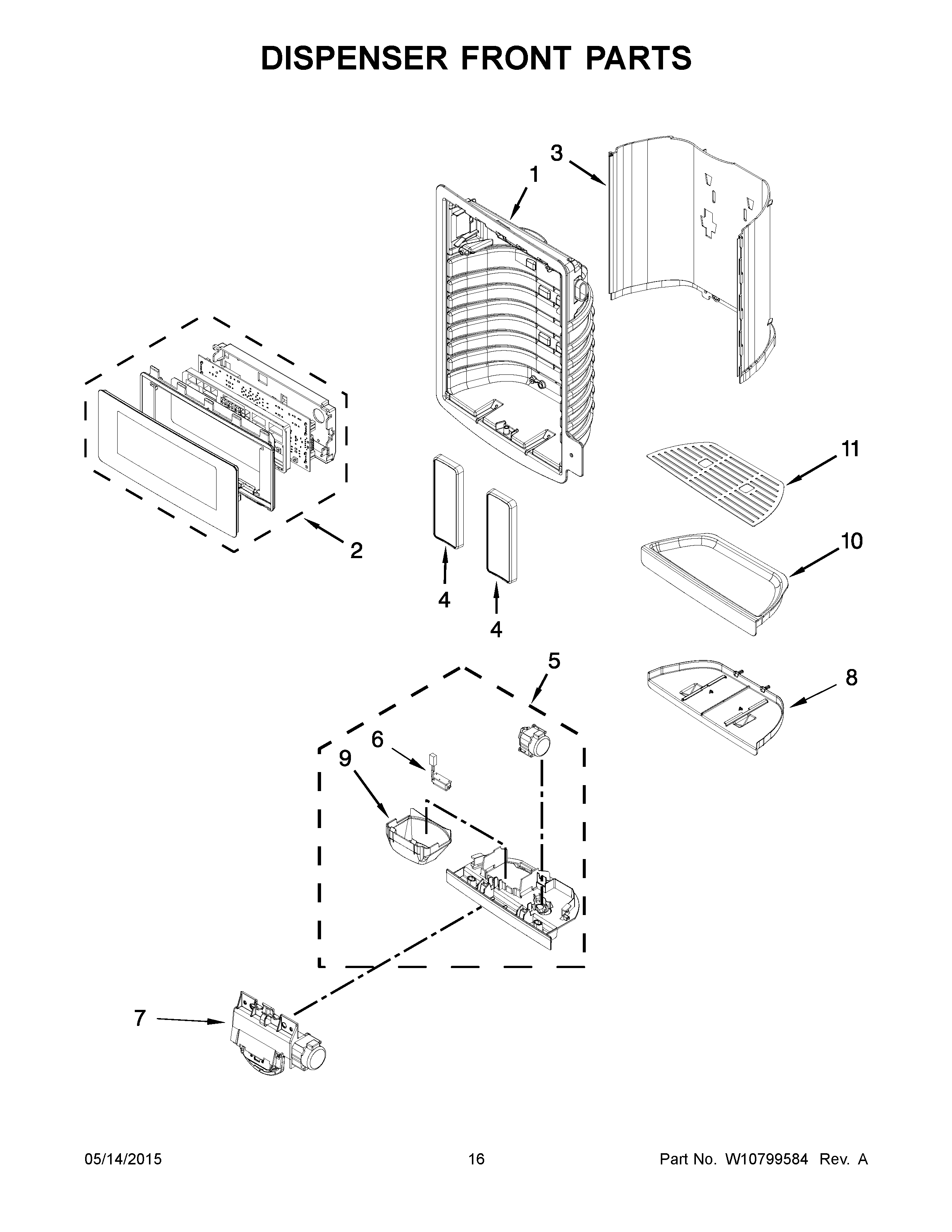

KRFF707ESS00 09 – DISPENSER FRONT PARTS

KRFF707ESS00 09 – DISPENSER FRONT PARTS

Written by

in

KRFF707ESS00 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11089931 Whirlpool Refrigerator UI Panel + Core
3WPW10486346 Whirlpool Refrigerator Shield
4WPW10346924 Whirlpool Refrigerator Pad
5W10836794 Whirlpool Refrigerator Separator
6W11290115 Whirlpool Refrigerator Light
7WPW10606117 Whirlpool Refrigerator Ice Door
8W10402269 Whirlpool Refrigerator Insert
9WPW10435760 Whirlpool Refrigerator Ice Guide
10WPW10400887 Whirlpool Drip Tray
11WPW10542708 Whirlpool Refrigerator Grille
