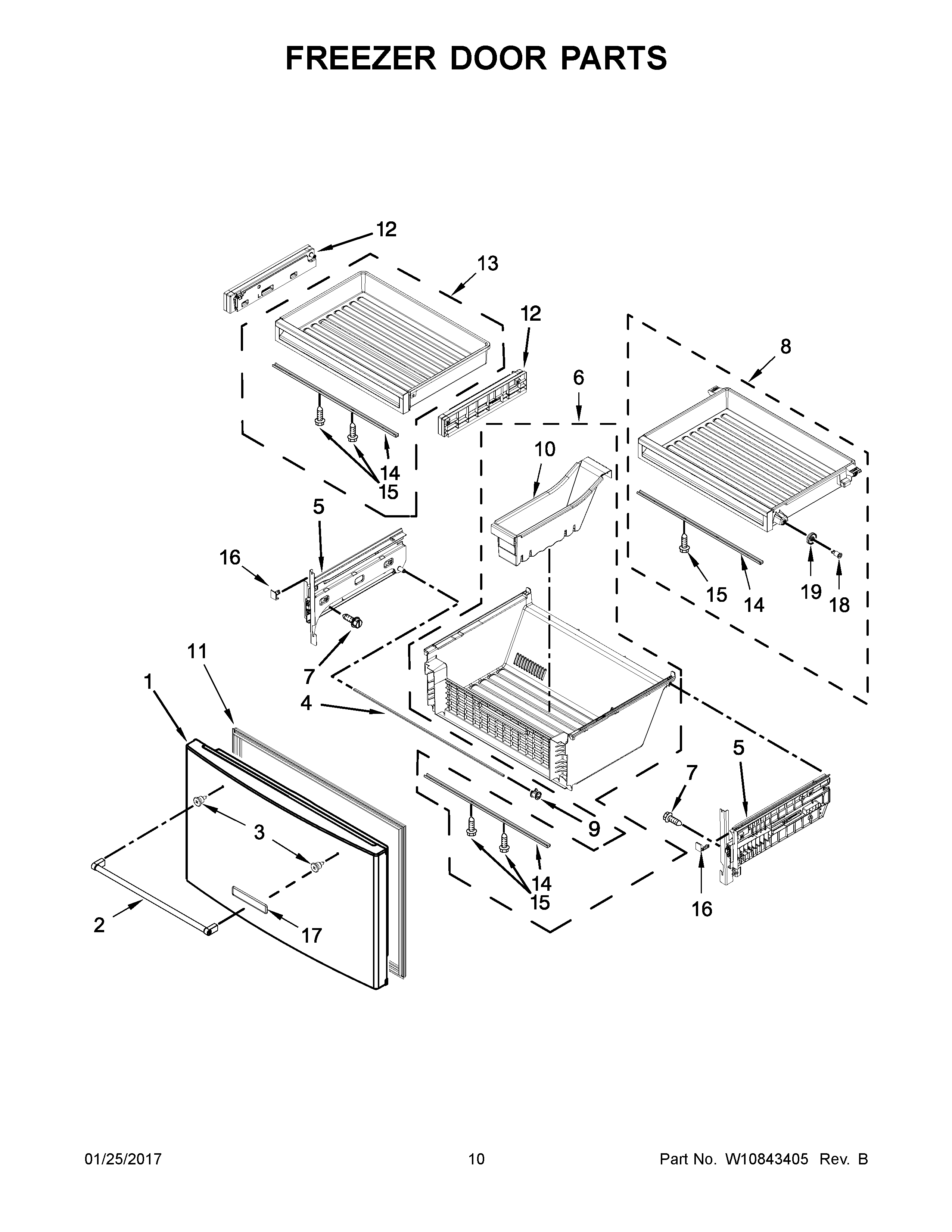

KRFF707ESS01 06 – FREEZER DOOR PARTS

KRFF707ESS01 06 – FREEZER DOOR PARTS

Written by

in

KRFF707ESS01 06 – FREEZER DOOR PARTS

Products

PositionProduct
1W10821330 Whirlpool Refrigerator Stainless Steel Door Assembly
2W11499276 Whirlpool Refrigerator Handle
3WPW10661886 Whirlpool Refrigerator Door Handle Screw
4WPW10503522 Whirlpool Refrigerator Shaft
5AW11668672 Whirlpool Bracket
6W10594052 Whirlpool Refrigerator Freezer Bin
7WP67006908 Whirlpool Refrigerator Screw
8W11238213 Whirlpool Refrigerator Freezer Bin
9W10852685 Whirlpool Clip Assembly
10W10562492 Whirlpool Divider
11GASKET-FIP GRAY
12W11131390 Whirlpool Refrigerator Bracket
12AW11161915 Whirlpool Refrigerator Bracket
13W11393136 Whirlpool Refrigerator Freezer Bin
14W11677723 Whirlpool Support
15WP489443 Whirlpool Refrigerator Screw
16W10585151 Whirlpool Refrigerator Stop Pan
16AW10585150 Whirlpool Refrigerator Stop Pan
17W10876598 Whirlpool Refrigerator Nameplate
18WPW10257246 Whirlpool Refrigerator Axle
19W11578839 Whirlpool Roller
