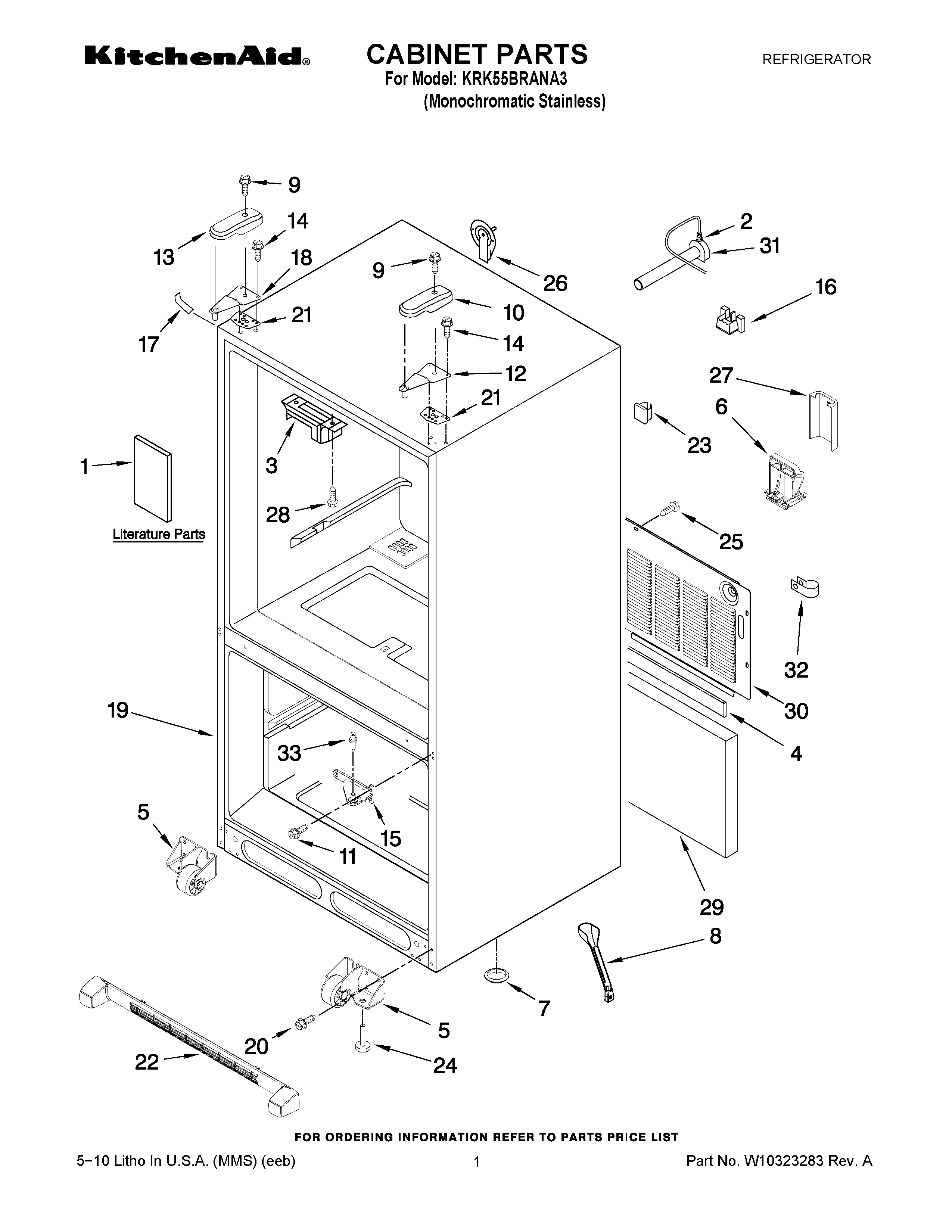

KRK55BRANA3 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	TECH SHEET
2	WPM0114003 Whirlpool Microwave Speed Clip Clamp
3	WP67003405 Whirlpool Pivot Block
4	B5759655 Whirlpool Refrigerator Gasket
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
5	WPW10515762 Whirlpool Refrigerator Cabinet Roller
6	12831101 Whirlpool Refrigerator Tube Clamp
7	A3076901 Whirlpool Refrigerator Plug
8	W10619951 Whirlpool Drain Tube with Grommet
9	WP8281196 Whirlpool Screw
10	Cover, Hinge (RC) (Black)
11	WP67006380 Whirlpool Screw
12	12626910ED Whirlpool Refrigerator Door Hinge
13	W10217485 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15	12655103ED Whirlpool Door Hinge
16	WP12777701 Whirlpool Refrigerator Filler Block
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	12626911ED Whirlpool Refrigerator Door Hinge
19	CABINET (NOT A SERVICEABLE PART)
20	67006564 Whirlpool Refrigerator Screw
21	Shim, Hinge
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	WPM0104106 Whirlpool Refrigerator Clip
24	WPW10141622 Whirlpool Leveler
25	67006425 Whirlpool Refrigerator Screw
26	12726003 Whirlpool Refrigerator Water Cover
27	W10208593 Whirlpool Refrigerator Valve Cover
28	WP7101P126-60 Whirlpool Screw
29	INSULATION, SOUND
30	WPW10211855 Whirlpool Refrigerator Back Cover
31	W11176463 Whirlpool Refrigerator Water Tube
32	W11456069 Whirlpool Refrigerator Clamp
33	WP67006642 Whirlpool Refrigerator Pin
