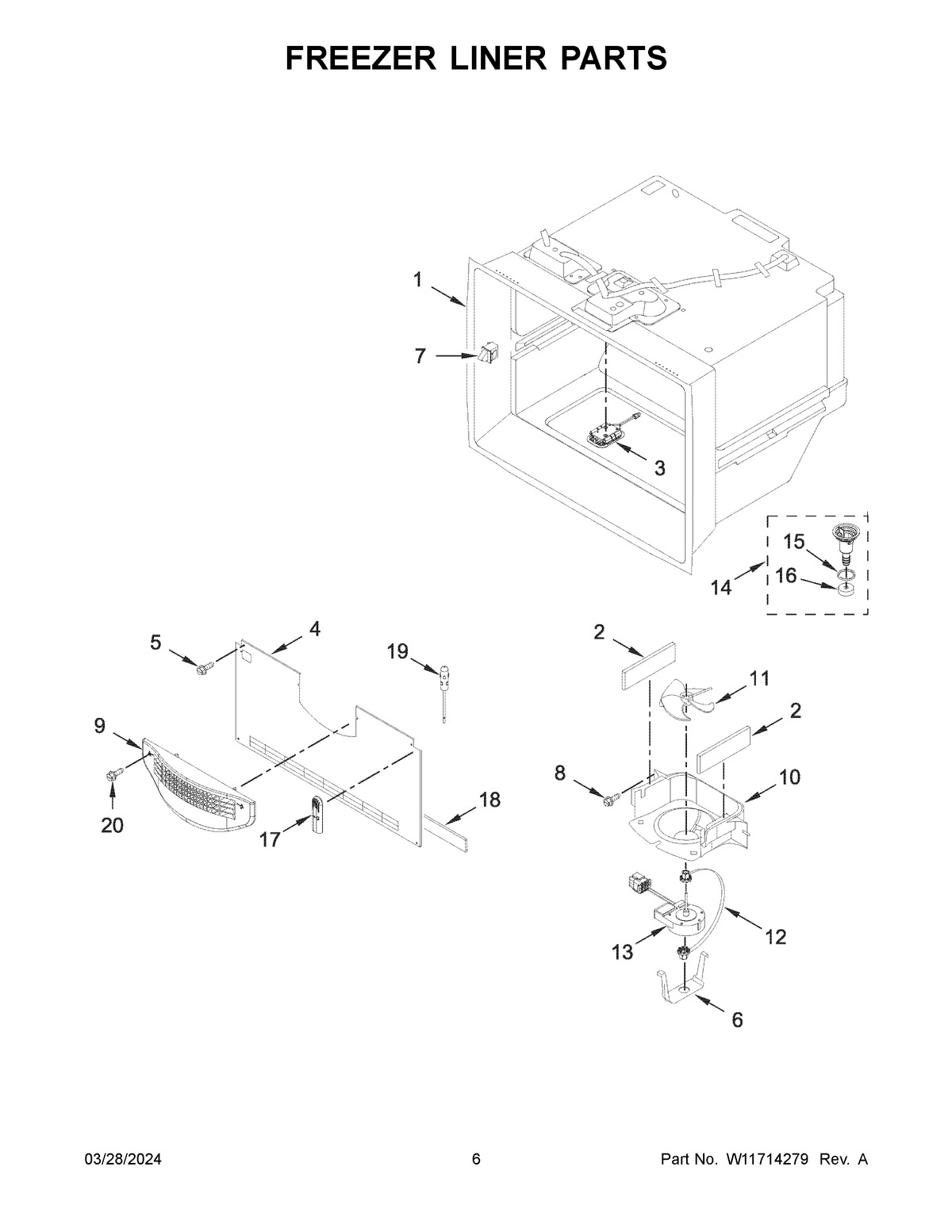

KRMF536RBS00 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SEVICEABLE PART)
2	W10856123 Whirlpool Refrigerator Gasket
3	W11483116 Whirlpool Refrigerator Module
4	W11408170 Whirlpool Evaporator Cover
5	67006425 Whirlpool Refrigerator Screw
6	W11712696 Whirlpool Clip
7	W11291142 Whirlpool Refrigerator Switch
8	WP98165 Whirlpool Screw
9	W10871842 Whirlpool Air Grille
10	WPW10363507 Whirlpool Refrigerator Shroud
11	WP67006337 Whirlpool Refrigerator Fan Blade
12	W11676465 Whirlpool Grommet
13	W11603851 Whirlpool Evaporator Motor
14	W10503218 Whirlpool Refrigerator Funnel
15	WPM0500703 Whirlpool Refrigerator O-Ring Seal
16	WPB8381501 Whirlpool Refrigerator Door Gasket
17	W11661208 Whirlpool Cover Assembly
18	W10668165 Whirlpool Refrigerator Gasket
19	THERMISTOR
20	WP8281136 Whirlpool Screw
