KRMF536RBS00 10 – ICEMAKER AND ICE CONTAINER PARTS

KRMF536RBS00 10 – ICEMAKER AND ICE CONTAINER PARTS

Written by

in

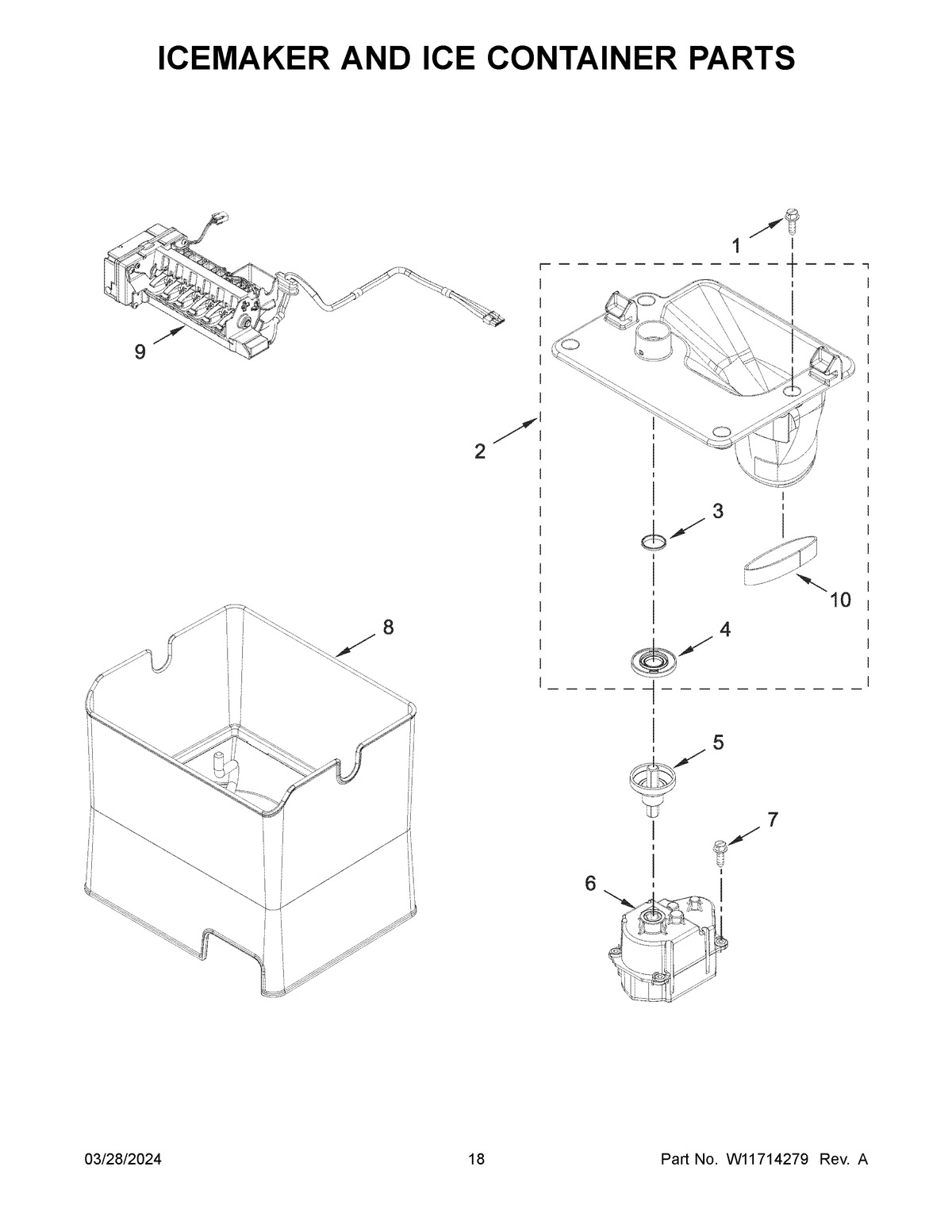

KRMF536RBS00 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1WPW10272364 Whirlpool Refrigerator Screw
2PLATE, ICE CHUTE
3WP2198628 Whirlpool Door Seal
4W10847834 Whirlpool Clip
5W11509548 Whirlpool Ice Bucket Coupler
6W10822606 Whirlpool Dishwasher Dispenser Motor
7WP8281163 Whirlpool Refrigerator Screw
8W11129522 Whirlpool Ice Bucket Assembly
9W11658802 Whirlpool Refrigerator Ice Maker
10WPW10291905 Whirlpool Seal
